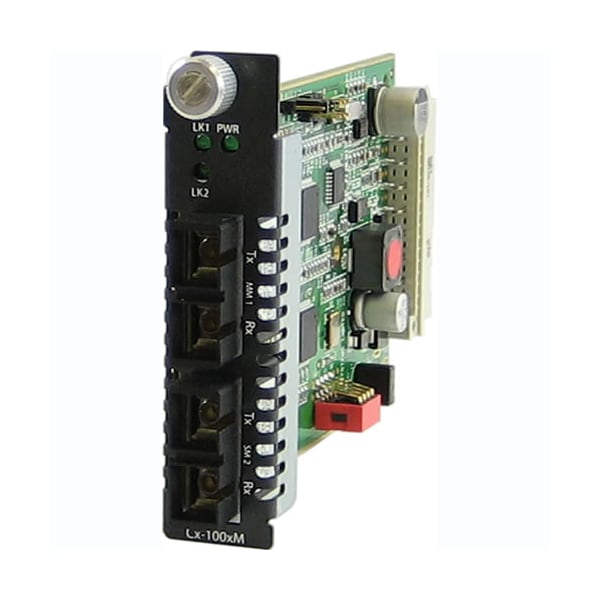

C-1000Mm-S2Sc70 Media Convertr

Mfr # 05061280
Zoro # G4397805

$3,412.99

Free Shipping & Returns

Key Features

Fiber Optic Cable Standard

50/125 µm, 62.5/125 µm

Network Technology

1000Base-ZX, 1000Base-SX

Product Type

Transceiver/Media Converter

SC Port Type

Duplex

Compatibility

Perle MCR1900 Media Converter Chassis

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05061280

Zoro #

G4397805

UPC #

734660612807

Country of Origin

Canada

Details

Fiber Optic Cable Standard

50/125 µm, 62.5/125 µm

Network Technology

1000Base-ZX, 1000Base-SX

Product Type

Transceiver/Media Converter

SC Port Type

Duplex

Compatibility

Perle MCR1900 Media Converter Chassis

Total Number of Ports

Weight (Approximate)

5.28 oz

Number of SC Ports

Form Factor

Internal

Maximum Distance Supported

43.50 Mile

Product Name

C-1000MM-S2SC70 Media Converter

Environmentally Friendly

Yes

Remote Loopback #2

The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface

Operating Humidity

5% to 90% non-condensing

Maximum Power Consumption ( Watts )

2.5

Electrical Safety

UL 60950-1

Edge Connecter

32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power

Immunity

EN55024

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Auto-Negotiation

Auto (default up)- Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through; Off- Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through.

Heat Output ( BTU/HR )

8.53

Operating Altitude

Up to 3,048 meters (10,000 feet)

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Storage Humidity

5% to 95% non-condensing

Laser Safety

EN 60825-1:2007

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface

Emissions

FCC Part 15 Class A, EN55022 Class A

Bit Error Rate (BER)

<10-12

Fiber Fault Alert

Enabled - (default up)- If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports; Disabled: The media converter will not monitor for fiber fault or generate them.

Operating temperature

0° C to 50° C (32° F to 122° F)

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Card insertion and removal

Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.

1000Base-X

Multimode dual SC to single mode dual SC fiber connector model; Available in SC, ST and LC connector models

Description

C-1000MM-S2SC70 - Gigabit Fiber to Fiber Media Converter Module: 1000BASE-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000BASE-ZX 1550 nm single mode (SC) [70 km/43.5 miles]

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
