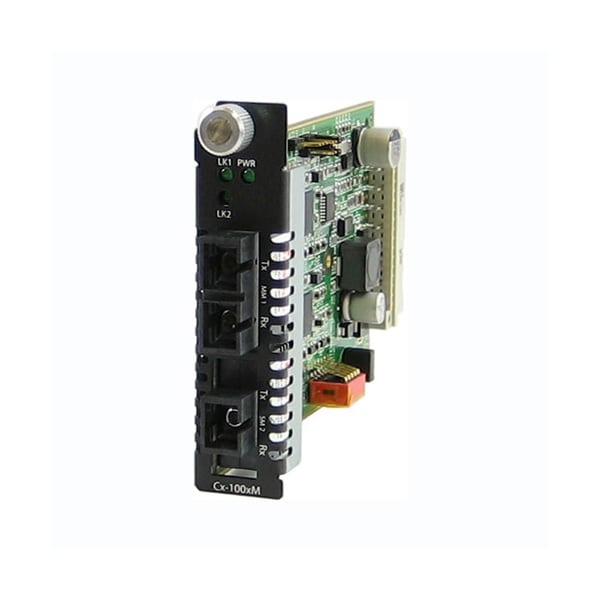

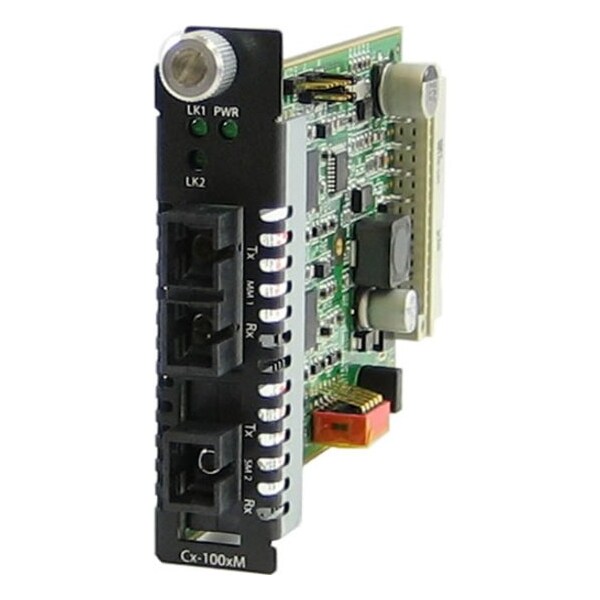

C-100Mm-S1Sc20D Media Convertr

Mfr # 05061160
Zoro # G4395617

$604.99

Free Shipping & Returns

Key Features

Maximum Distance Supported

12.43 Mile

SC Port Type

Duplex

Compatibility

MCR1900 Media Converter Chassis

Weight (Approximate)

5.28 oz

Network Technology

100Base-FX, 100Base-BX

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05061160

Zoro #

G4395617

UPC #

734660611602

Country of Origin

Canada

Details

Maximum Distance Supported

12.43 Mile

SC Port Type

Duplex

Compatibility

MCR1900 Media Converter Chassis

Weight (Approximate)

5.28 oz

Network Technology

100Base-FX, 100Base-BX

Form Factor

Internal

Product Name

C-100MM-S1SC20D Media Converter

Number of SC Ports

Total Number of Ports

Product Type

Transceiver/Media Converter

Fiber Optic Cable Standard

9/125 µm, 85/125 µm, 100/140 µm, 62.5/125 µm, 50/125 µm

Environmentally Friendly

Yes

Storage temperature

minimum range of -25 C to 70 C (-13 F to 158 F)

Fiber Optic Cable

Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)

Immunity

EN55024

Operating Humidity

5% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Remote Loopback #2

The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.

Edge Connecter

32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power

Operating temperature

0 C to 50 C (32 F to 122 F)

Bit Error Rate (BER)

<10-12

Card insertion and removal

Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.

Operating Altitude

Up to 3,048 meters (10,000 feet)

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Emissions

FCC Part 15 Class A, EN55022 Class A

Maximum Power Consumption ( Watts )

3.5

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Heat Output ( BTU/HR )

11.9

Electrical Safety

UL 60950-1

Link Pass Through

Enabled (Default)- When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter; If disabled, the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Laser Safety

EN 60825-1:2007

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #2's fiber transmitter is taken off the interface

Description

C-100MM-S1SC20D - Fast Ethernet Fiber to Fiber Media Converter Module: 100BASE-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-BX 1550nm TX / 1310nm RX single strand fiber, single mode (SC) [20 km/12.4 miles]

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
