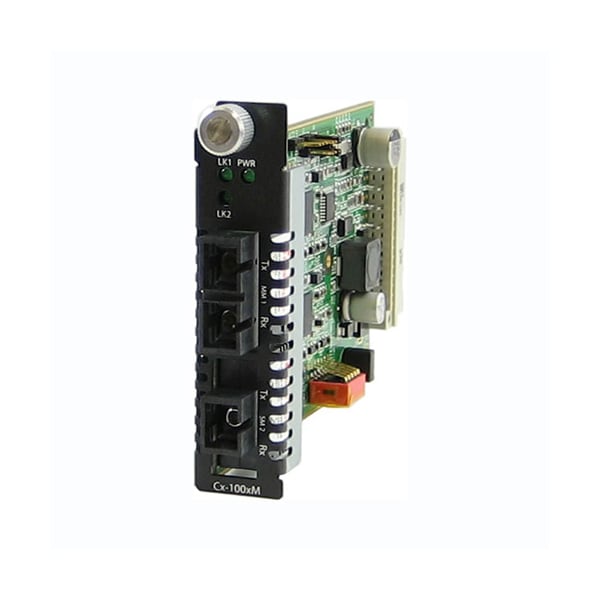

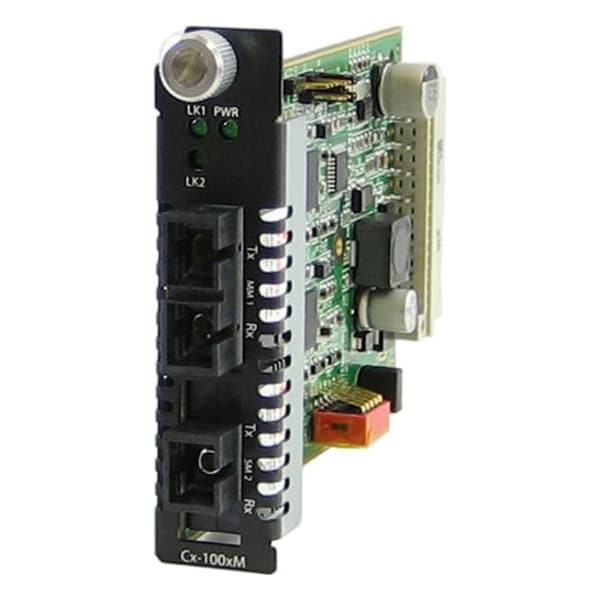

Perle Systems C-100Mm-S1Sc20U Media Convertr 05061150 - main

C-100Mm-S1Sc20U Media Convertr

  • Mfr # 05061150

  • Zoro # G4396509

product price: $604.99
/ea
Free Shipping & Returns

Key Features

Environmentally Friendly
Yes
Product Name
C-100MM-S1SC20U Media Converter
Maximum Distance Supported
12.43 Mile
Network Technology
100Base-BX, 100Base-FX
Form Factor
Internal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
05061150
Zoro #
G4396509
UPC #
734660611503
Country of Origin
Canada

Details

Environmentally Friendly
Yes
Product Name
C-100MM-S1SC20U Media Converter
Maximum Distance Supported
12.43 Mile
Network Technology
100Base-BX, 100Base-FX
Form Factor
Internal
Weight (Approximate)
5.28 oz
Compatibility
MCR1900 Media Converter Chassis
Fiber Optic Cable Standard
9/125 µm, 50/125 µm, 62.5/125 µm, 85/125 µm, 100/140 µm
Number of SC Ports
1
SC Port Type
Duplex
Total Number of Ports
2
Product Type
Transceiver/Media Converter
Laser Safety
EN 60825-1:2007
Heat Output ( BTU/HR )
11.9
Operating temperature
0 C to 50 C (32 F to 122 F)
Emissions
FCC Part 15 Class A, EN55022 Class A
Fiber link 1 / Receive activity (LK1)
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Immunity
EN55024
Card insertion and removal
Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.
Operating Humidity
5% to 90% non-condensing
Bit Error Rate (BER)
<10-12
Storage Humidity
5% to 95% non-condensing
Fiber Optic Cable
Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)
Remote Loopback #2
The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.
Electrical Safety
UL 60950-1
Maximum Power Consumption ( Watts )
3.5
Edge Connecter
32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power
Power / TST
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.
Remote Loopback #1
The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #2's fiber transmitter is taken off the interface
Fiber link 2 on / Receive activity (LK2)
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Storage temperature
minimum range of -25 C to 70 C (-13 F to 158 F)
Link Pass Through
Enabled (Default)- When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter; If disabled, the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.
Operating Altitude
Up to 3,048 meters (10,000 feet)

Description

C-100MM-S1SC20U - Fast Ethernet Fiber to Fiber Media Converter Module: 100BASE-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-BX 1310nm TX / 1550nm RX single strand fiber, single mode (SC) [20 km/12.4 miles]
