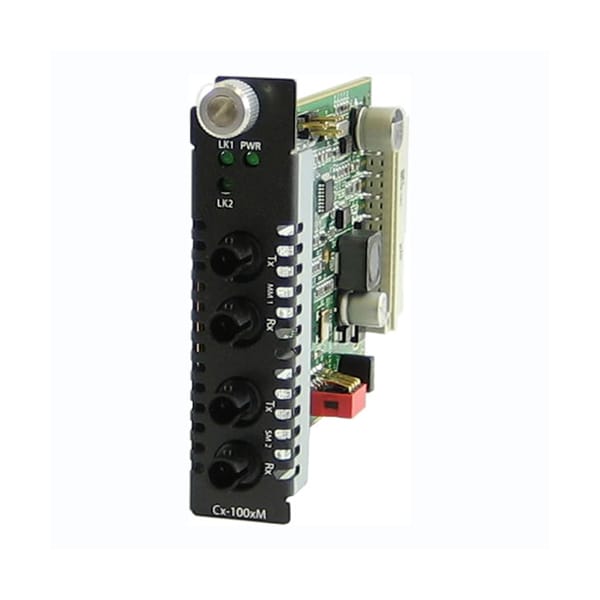

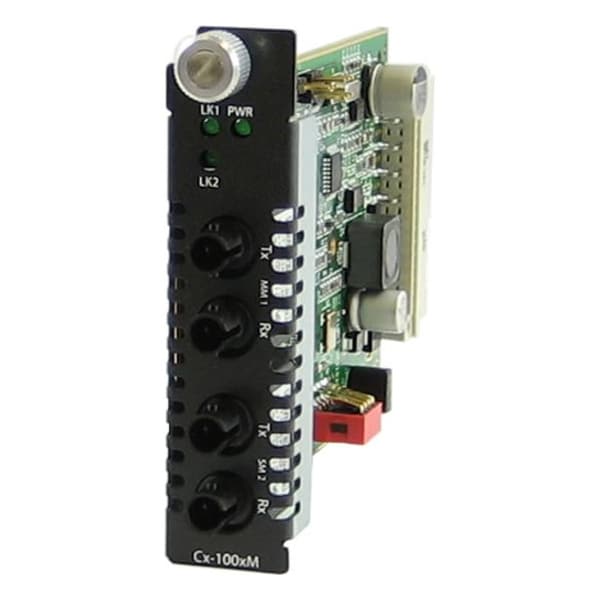

C-100Mm-S2St80 Media Converter

Mfr # 05061100
Zoro # G4390400

$2,864.99

Free Shipping & Returns

Key Features

Product Name

C-100MM-S2ST80 Media Converter

Environmentally Friendly

Yes

Number of ST Ports

Maximum Distance Supported

49.71 Mile

Product Type

Transceiver/Media Converter

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05061100

Zoro #

G4390400

UPC #

734660611008

Country of Origin

Canada

Details

Product Name

C-100MM-S2ST80 Media Converter

Environmentally Friendly

Yes

Number of ST Ports

Maximum Distance Supported

49.71 Mile

Product Type

Transceiver/Media Converter

Weight (Approximate)

5.28 oz

Form Factor

Internal

Fiber Optic Cable Standard

9/125 µm, 62.5/125 µm, 85/125 µm, 100/140 µm, 50/125 µm

Network Technology

100Base-FX, 100Base-ZX

ST Port Type

Duplex

Total Number of Ports

Compatibility

MCR1900 Media Converter Chassis

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Maximum Power Consumption ( Watts )

3.5

Fiber Optic Cable

Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)

Link Pass Through

Enabled (Default)- When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter; If disabled, the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.

Heat Output ( BTU/HR )

11.9

Bit Error Rate (BER)

<10-12

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Remote Loopback #2

The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.

Electrical Safety

UL 60950-1

Operating Altitude

Up to 3,048 meters (10,000 feet)

Operating Humidity

5% to 90% non-condensing

Edge Connecter

32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power

Storage Humidity

5% to 95% non-condensing

Immunity

EN55024

Card insertion and removal

Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.

Operating temperature

0 C to 50 C (32 F to 122 F)

Emissions

FCC Part 15 Class A, EN55022 Class A

Storage temperature

minimum range of -25 C to 70 C (-13 F to 158 F)

Laser Safety

EN 60825-1:2007

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #2's fiber transmitter is taken off the interface

Description

C-100MM-S2ST80 - Fast Ethernet Fiber to Fiber Media Converter Module: 100BASE-FX 1310nm multimode (ST) [2 km/1.2 miles] to 100Base-ZX 1550nm single mode (ST) [80 km/49.7 miles]

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
