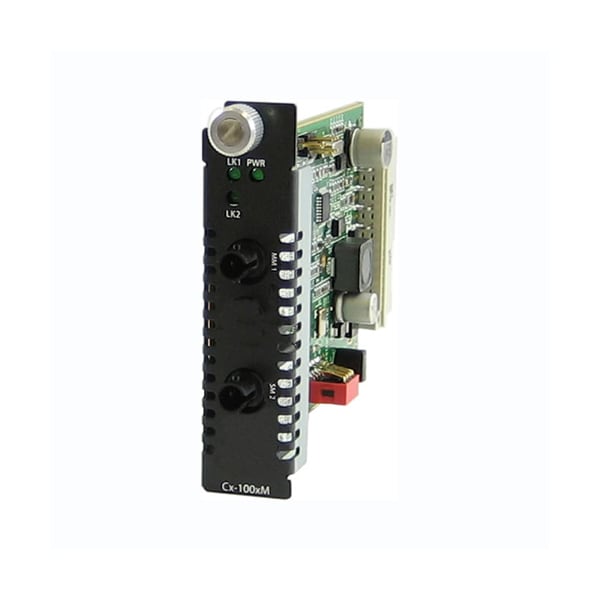

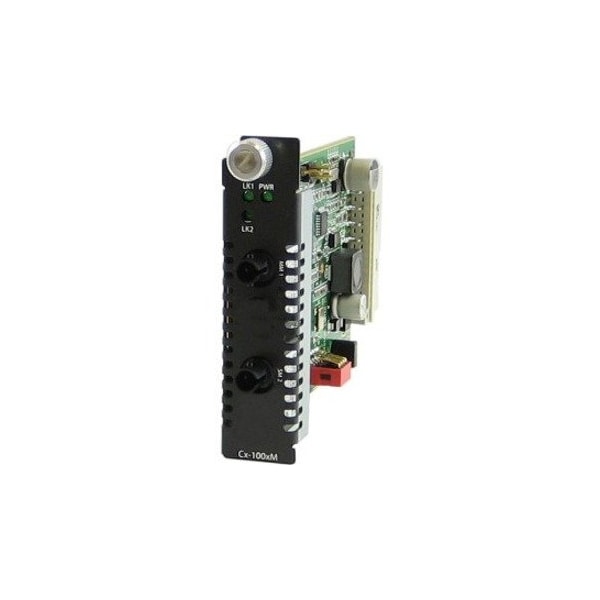

Cm-100-M1St2U Media Converter

Mfr # 05042810
Zoro # G4405234

$469.99

Free Shipping & Returns

Key Features

Fiber Optic Cable

Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)

Heat Output ( BTU/HR )

6.8

Storage temperature

minimum range of -25 C to 70 C (-13 F to 158 F)

Power / TST

This green LED is turned on when power is applied to the media ; converter. Otherwise it is off. The LED will blink when in Loopback test ; mode.

Remote Loopback

The media converter can perform a loopback on the 100Base-X fiber ; interface; Disabled (Default - Up); Enabled- The ; 100Base-X receiver is looped to the 100Base-X transmitter. The ; 100Base-TX transmitter is taken off the interface.

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05042810

Zoro #

G4405234

UPC #

734660428101

Country of Origin

Canada

Details

Fiber Optic Cable

Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)

Heat Output ( BTU/HR )

6.8

Storage temperature

minimum range of -25 C to 70 C (-13 F to 158 F)

Power / TST

This green LED is turned on when power is applied to the media ; converter. Otherwise it is off. The LED will blink when in Loopback test ; mode.

Remote Loopback

Magnetic Isolation

1.5kv

Copper link on / Receive activity (LKC)

This green LED is operational only when power is applied. The LED is on ; when the 100Base-TX link is on and flashes with a 50% duty cycle when ; data is received.

Operating Humidity

5% to 90% non-condensing

Auto-MDIX (Strap)

If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP ; Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation ; (802.3u) is disabled the Media converter will use the RX Energy method ; on the 100Base-TX interface to set the port MDI or MDIX whichever is ; appropriate; Enabled (Default)- ; Either a straight-through or crossover type cable can be used to connect ; the media converter to the device on the other end of the cable; Disabled- If the ; partner device on the other end of the cable does not have the Auto-MDIX ; feature a specific cable, either a straight-through or crossover will be ; required to ensure that the media convertor's transmitter and the ; partner devices transmitter are connected to the others receiver. The ; Media Convertor's 100Base-TX port is configured as MDI with this switch ; setting.

100Base-TX

RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable

Pause

Pause should be enabled when all devices connected to the media ; converter support pause. Auto-Negotiation must be Enabled to use this ; feature; Enabled (Default)- ; The Media converter will advertise Pause capability during ; Auto-Negotiation on the 100Base-TX interface; Disabled- The Media ; converter will advertise that it does not have Pause capability during ; Auto-Negotiation on the 100Base-TX interface.

Electrical Safety

UL 60950-1

Fiber link on / Receive activity (LKF)

This green LED is operational only when power is applied. The LED is on ; when the 100Base-FX link is on and flashes with a 50% duty cycle when ; data is received.

Storage Humidity

5% to 95% non-condensing

Laser Safety

EN 60825-1:2007

Bit Error Rate (BER)

<10-12

Maximum Power Consumption ( Watts )

Emissions

FCC Part 15 Class A, EN55022 Class A

Operating temperature

0 C to 50 C (32 F to 122 F)

Link Pass Through

Enabled (Default)- ; When the state of the receiver is changed on the 100Base-TX interface it ; is reflected on the 100Base-FX fiber transmitter. When the state of the ; receiver on the 100Base-FX interface is changed it is reflected on the ; 100Base-TX transmitter; When a Far-End Fault Indication is received on the fiber interface the ; 100Base-TX transmitter is turned off. When the Far-End Fault Indication ; is cleared the transmitter is turned back on; Disabled- The ; 100Base-TX and the 100Base-FX fiber interface operate independently. ; Far-End Fault indication on the 100Base-FX fiber interface has no effect ; on the 100Base-TX interface.

Card insertion and removal

Captive thumb screws enable fast insertion and removal. Can be further ; tighten with a screwdriver.

Operating Altitude

Up to 3,048 meters (10,000 feet)

Edge Connecter

32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ; ground and power

Auto-Negotiation (802.3u)

Enabled (Default)- ; The media converter uses 802.3u Auto-negotiation on the 100Base-TX ; interface. It is set to advertise full duplex; Disabled- The media ; converter sets the 100Base-TX port to full duplex.

Configuration Mode (Strap)

Auto (default) enable management module to overwrite hardware switch ; settings; Switch - Use onboard DIP switches

Immunity

EN55024

Description

CM-100-M1ST2U - Managed Fast Ethernet Media Converter Module: 100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-BX 1310nm TX / 1550nm RX single strand fiber, multimode (ST) [2 km/1.2 miles]. Managed or unmanaged operation
