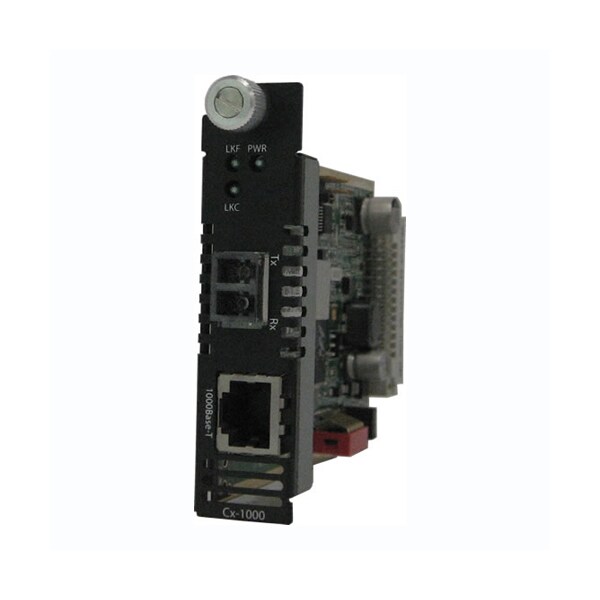

Cm-1000-M2Lc05 Media Converter

Mfr # 05052010
Zoro # G4405170

$548.99

Free Shipping & Returns

Key Features

Magnetic Isolation

1.5kv

Operating Humidity

5% to 90% non-condensing

Laser Safety

EN 60825-1:2007

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.

Configuration Mode Strap

Auto (default) enable management module to overwrite hardware switch settings Switch - Use on-board DIP switches

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05052010

Zoro #

G4405170

UPC #

734660520102

Country of Origin

Canada

Details

Magnetic Isolation

1.5kv

Operating Humidity

5% to 90% non-condensing

Laser Safety

EN 60825-1:2007

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.

Configuration Mode Strap

Auto (default) enable management module to overwrite hardware switch settings Switch - Use on-board DIP switches

Operating temperature

0° C to 50° C (32° F to 122° F)

Fiber link on / Receive activity (LKF)

This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-X interface has been taken down as a result of a fault on the 1000Base-T interface.

Heat Output ( BTU/HR )

10.2

Duplex

Full (Default-Up)- The media converter will advertise Full Duplex Capable, Half Duplex Capable; AUTO (Down)-The Media converter will advertise Full Duplex Not Capable, Half Duplex Capable.

Copper link on / Receive activity (LKC)

This green LED is operational only when power is applied. The LED i on when the 1000Base-T link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-T interface has been taken down as a result of a fault on the 1000Base-T interface.

Edge Connecter

32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power

Immunity

EN55024

Emissions

FCC Part 15 Class A, EN55022 Class A

Operating Altitude

Up to 3,048 meters (10,000 feet)

Card insertion and removal

Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.

Bit Error Rate (BER)

<10-12

Maximum Power Consumption ( Watts )

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Electrical Safety

UL 60950-1

Auto-Negotiation

Enabled (Default - Up)- In this mode the 1000Base-X and the 1000Base-T will negotiate to the HCD of the two link partners. The 1000Base-X will link up after the negotiation is completed and the 1000Base-T has linked up; Disabled- The 1000Base-X will not use auto negotiation. The 1000Base-T will negotiate to the HCD of the Switch settings and the link partner.

Pause

When Fiber Auto Negotiation is disabled Pause should only be enabled when all devices connected to the media converter support pause; Enabled(Default)- The Media converter will advertise Pause capable, Asymmetric pause not needed during Auto-Negotiation; Disabled- The Media converter will advertise that it does not have Pause capability during Auto-Negotiation.

Storage Humidity

5% to 95% non-condensing

Remote Loopback

The media converter can perform a loopback on the 1000Base-X fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. The 1000Base-T transmitter is taken off the interface.

1000Base-T

RJ45 connector, 4 pair CAT 5 UTP cable or cable

Fiber Fault Alert

The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled; Enabled (Default - Up); When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature; Disabled (Down)

Description

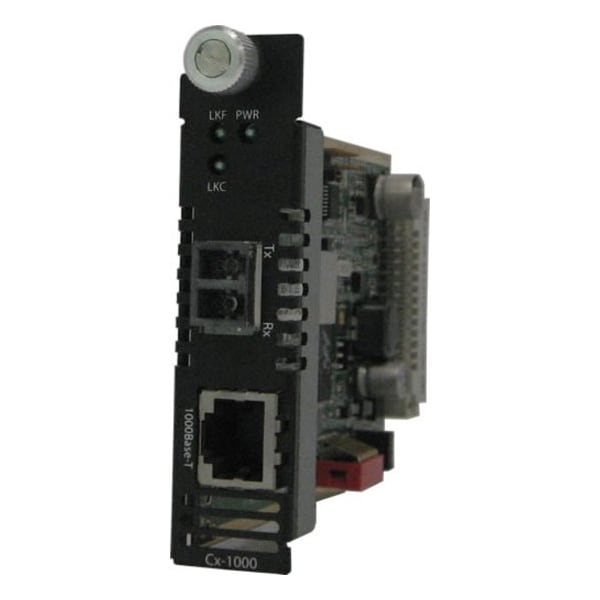

CM-1000-M2LC05 - Managed Gigabit Media Converter Module: 1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-SX 850nm multimode (LC) [550 m/1804 ft.]. Managed or unmanaged operation
