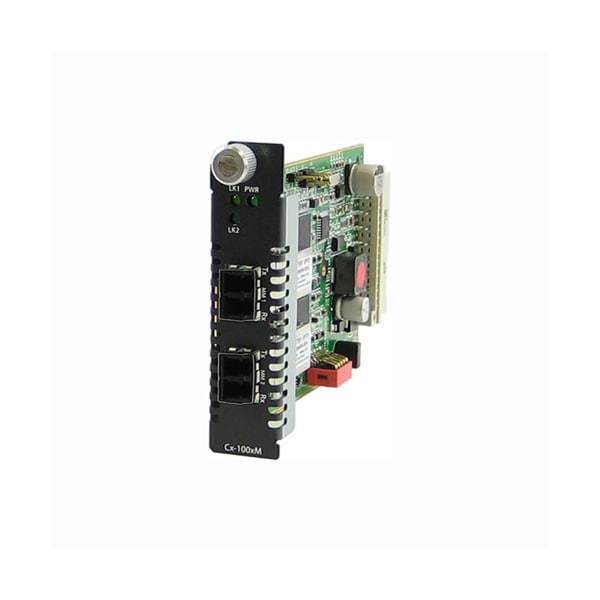

Cm-100Mm-M2Lc2 Media Converter

Mfr # 05062020
Zoro # G4393447

$478.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Storage temperature minimum range of -25 C to 70 C (-13 F to 158 F)
Fiber link 2 on / Receive activity (LK2) This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Card insertion and removal Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.
Operating Altitude Up to 3,048 meters (10,000 feet)
Fiber Optic Cable Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)

See all product information

Brand Perle Systems
MFR # 05062020
Zoro # G4393447
UPC #
734660620208
Country of Origin Canada
Category Media Converters & Data Adapter Kits

Details

Storage temperature	minimum range of -25 C to 70 C (-13 F to 158 F)
Fiber link 2 on / Receive activity (LK2)	This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Card insertion and removal	Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.
Operating Altitude	Up to 3,048 meters (10,000 feet)
Fiber Optic Cable	Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)
Remote Loopback #2	The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.
Laser Safety	EN 60825-1:2007
Electrical Safety	UL 60950-1
Power / TST	This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.
Link Pass Through	Enabled (Default)- When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter; When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on; If disabled, the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.
Operating temperature	0 C to 50 C (32 F to 122 F)
Immunity	EN55024
Storage Humidity	5% to 95% non-condensing
Configuration Mode (Strap)	Auto (default) enable management module to overwrite hardware switch settings; Switch - Use onboard DIP switches
Emissions	FCC Part 15 Class A, EN55022 Class A
Fiber link 1 / Receive activity (LK1)	This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
Heat Output ( BTU/HR )	11.9
Edge Connecter	32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power
Remote Loopback #1	The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #2's fiber transmitter is taken off the interface.
Bit Error Rate (BER)	<10-12
Maximum Power Consumption ( Watts )	3.5
Operating Humidity	5% to 90% non-condensing

Description

CM-100MM-M2LC2 Managed Fast Ethernet Fiber to Fiber Converter Module: 100BASE-FX 1310nm multimode (LC) [2 km/1.2 miles] to 100BASE-FX 1310nm multimode (LC) [2 km/1.2 miles]. Managed or unmanaged operation.
