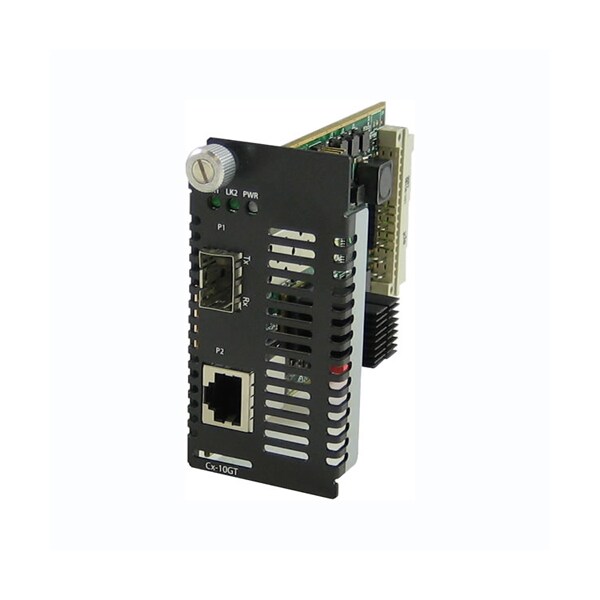

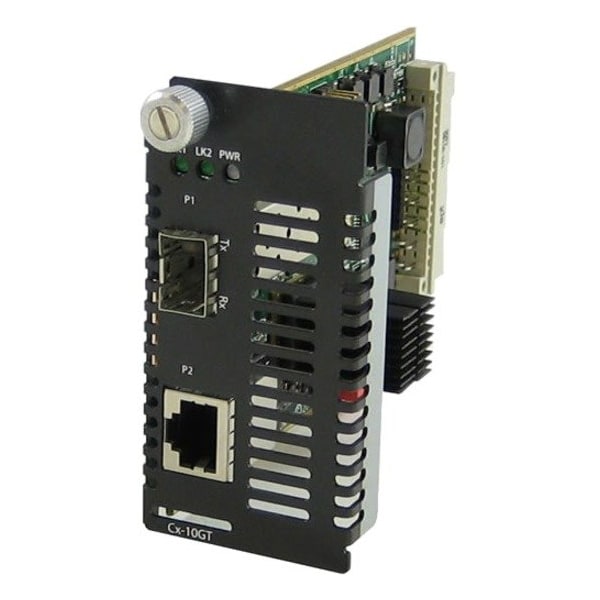

Cm-10Grt-Sfp Media Converter

CM-10GRT-SFP- Managed 10 Gigabit Media and Rate Converter Module

SFP+

10GBase-T, 10GBase-X, 10GBase-CX1

10 Gigabit Ethernet

Yes

1

1

328.08 ft

1

Transceiver/Media Converter

1

Twisted Pair, Optical Fiber

5% to 95% non-condensing

Up to 3,048 meters (10,000 feet)

minimum range of -25° C to 70° C (-13° F to 158° F)

5% to 90% non-condensing

On: Power indication and in normal operation; Blinking slowly: the unit is in loopback or test mode (either port); Red solid: the unit has a hardware error (upon power up); Red and blinking: the unit has a hardware error specified by combination of LK1 and LK2

EN55024

On: 10GBase-T link present; Blinking quickly: Link present and receiving data; Blinking slowly: Link disabled because Link 1 went down; Off: 10GBase-T link is not active

Capable of performing a loopback on the 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link.

0° C to 50° C (32° F to 122° F)

Enabled (Default - Up); With Fiber Fault Alert the state of the 10 Gigabit ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G ethernet interface of the media converter; Disabled (Down)

Dependent on SFPs used. SFPs that meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11 are recommended for use with this product.

When enabled (default), the media converter will operate as an IEEE 802.3az Energy Efficient Ethernet (EEE) compliant device.

On: Link present; Blinking quickly: Fiber link present and receiving data.(including test data); Blinking slowly: Fiber link disabled because the other fiber link went down; Blinking 1 sec on 3 sec off - module shut down due to high temperature; Off: No fiber link present or no module inserted

FCC Part 15 Class A, EN55022 Class A

UL 60950-1

Through the use of three dip switches the unit, and its peer, can be placed into a link test mode which will verify the integrity of the link through the use of its built-in link test generator. The unit can also be placed into a simple line loopback.
