- MFR #
- 05062560
- Zoro #
- G4402425
- UPC #
- 734660625609
- Country of Origin
- Canada
- Network Technology
- 10GBase-T
- Compatibility
- Perle MCR1900 Media Converter Chassis
- Number of Total Expansion Slots
- 1
- Form Factor
- Internal
- Product Type
- Transceiver/Media Converter
- Number of Network (RJ-45) Ports
- 1
- Number of XFP Slots
- 1
- Maximum Distance Supported
- 328.08 ft
- Expansion Slot Type
- XFP
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Environmentally Friendly
- Yes
- Product Name

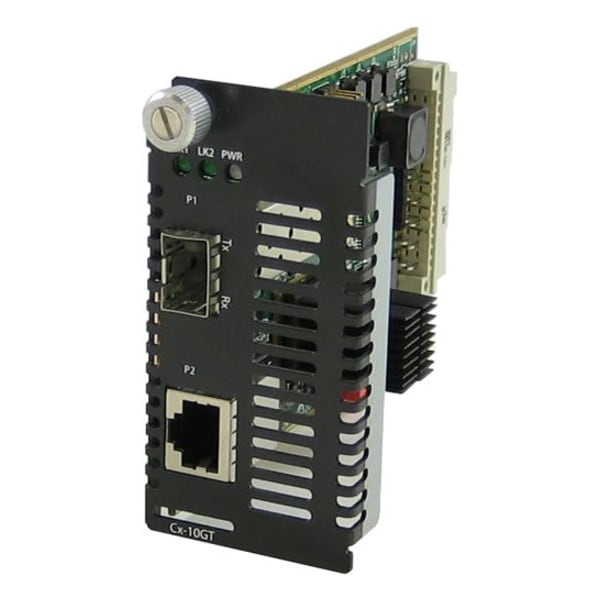

- 10 Gigabit Ethernet Managed Media Converter Module
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- 10 Gigabit Ethernet
- Certifications & Standards
- Immunity: EN55024 Emissions: FCC Part 15 Class A,EN55022 Class A,CISPR 22 Class A,EN61000-3-2 Electrical Safety: UL 60950-1,EN60950,CE
- Loopback
- Capable of performing a loopback on the 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link.
- LK1 (SFP/XFP)
- On: Link present; Blinking quickly: Fiber link present and receiving data.(including test data); Blinking slowly: Fiber link disabled because the other fiber link went down; Blinking 1 sec on 3 sec off - module shut down due to high temperature; Off: No fiber link present or no module inserted
- Fiber Fault Alert
- Enabled (Default - Up); With Fiber Fault Alert the state of the 10 Gigabit ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G ethernet interface of the media converter; Disabled (Down)
- Operating Humidity
- 5% to 90% non-condensing
- Operating temperature
- 0° C to 50° C (32° F to 122° F)
- Electrical Safety
- UL 60950-1
- Power / TST
- On: Power indication and in normal operation; Blinking slowly: the unit is in loopback or test mode (either port); Red solid: the unit has a hardware error (upon power up); Red and blinking: the unit has a hardware error specified by combination of LK1 and LK2
- Immunity
- EN55024
- LK2
- On: 10GBase-T link present; Blinking quickly: Link present and receiving data; Blinking slowly: Link disabled because Link 1 went down; Off: 10GBase-T link is not active
- Storage Humidity
- 5% to 95% non-condensing
- Test Mode
- Through the use of three dip switches the unit, and its peer, can be placed into a link test mode which will verify the integrity of the link through the use of its built-in link test generator. The unit can also be placed into a simple line loopback.
- Emissions
- FCC Part 15 Class A, EN55022 Class A
- Storage temperature
- minimum range of -25° C to 70° C (-13° F to 158° F)
- Operating Altitude
- Up to 3,048 meters (10,000 feet)
- EEE Green Ethernet
- When enabled (default), the media converter will operate as an IEEE 802.3az Energy Efficient Ethernet (EEE) compliant device.
