Cm-4Gpt-Dsfp Media Converter

Transceiver/Media Converter

2

2

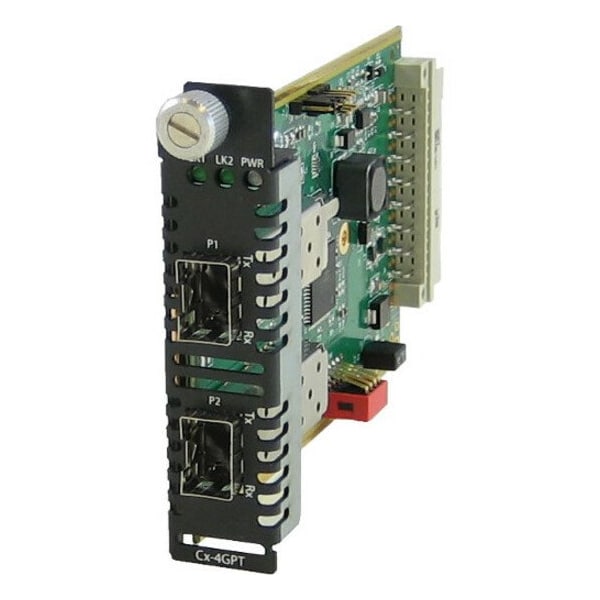

CM-4GPT-DSFP Fiber Mode Converter Module

Immunity: EN55024 Emissions: FCC Part 15 Class A,EN55022 Class A,CISPR 22 Class A,EN61000-3-2 Electrical Safety: UL 60950-1,EN60950,CE

1000Base-X

SFP

Yes

Gigabit Ethernet

Perle Media Converter Chassis

Internal

3.0 watts

This green LED is turned on when power is applied to the media converter. This LED is off when there is no power supplied; A Blinking LED will indicate that a hardware error has been detected.

UL 60950-1

When enabled, identifies that the SFPs inserted are MSA complaint SFPs that have a multi-rate capability SFF-8074 and SFF-8472; When disable ( Default ), no action is performed in this context.

5% to 90% non-condensing

This enables rate selection when using dual-rate capable SFPs. If the "Multi-Speed SFP" select switch is in the "Disabled" position, this switch is ignored; High Speed - UP ( default ); Low Speed - DOWN

13.65

Up to 3,048 meters (10,000 feet)

861306

5% to 95% non-condensing

minimum range of -25° C to 70° C (-13° F to 158° F).

FCC Part 15 Class A, EN55022 Class A

SFP line rates up to 4.25Gbps are supported. The SFPs occupying each slot in the media converter however must be operating at the same speed; SFP power level 1 and 2 are supported.

LED is ON when a signal is detected on LK1. LED is OFF when there is no signal.

EN55024

0° C to 50° C (32° F to 122° F)

Dependent on SFPs used. SFPs that meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11 are recommended for use with this product.

If the media converter module detects a loss of fiber, it will immediately notify the fiber link partner that an error condition exists; Disabled ( Default ).The Media Converter will not monitor for fiber fault.

LED is ON when a signal is detected on LK2. LED is OFF when there is no signal.
