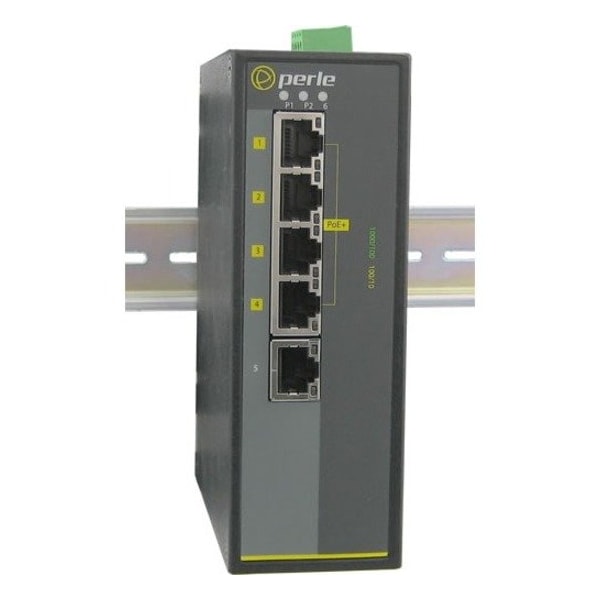

IDS-105GPP-S2ST10-XT 5PORT 10/100/1000 1PORT ST SM 10KM XTEMP

  • Mfr # 07012000
  • Zoro # G4414474
product price:
$
882.99
/ea
Free Shipping & Returns

Key Features

Depth
4.4"
Height
1.4"
Includes
IDS-105GPP-S2ST10-XT - with Power Over Ethernet, DIN Rail Attachment, Terminal Block, Installation Guide
Mounting
Wall, Rail, Panel
Width
5.4"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
07012000
Zoro #
G4414474
UPC #
679202120009
Country of Origin
Taiwan, Province of China

Dimensions

Depth
4.4"
Height
1.4"
Width
5.4"

Details

Item
Ethernet Switch
Includes
IDS-105GPP-S2ST10-XT - with Power Over Ethernet, DIN Rail Attachment, Terminal Block, Installation Guide
Mounting
Wall, Rail, Panel
Standards
Safety: UL 60950-1, IEC 60950-1:2005+A1:2009, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Industrial Safety: UL508 (Safety standard for Industrial Control Equipment )IEEE Standards: 802.3, 802.3u, 802.3ab, 802.3az, 802.3x, 802.3af, 802.3a
Product Type
Ethernet Switch
Power Source
Power Supply
Ethernet Technology
Gigabit Ethernet
Uplink Port
No
Stack Port
No
Redundant Power Supply Supported
Yes
Media Type Supported
Twisted Pair, Optical Fiber
Manageable
No
Total Number of Network Ports
6
Green Environmental Attribute
Environmentally Friendly
Port/Expansion Slot Details
6 x Gigabit Ethernet Network
Network Technology
1000Base-LX/LH, 10/100/1000Base-T
Environmentally Friendly
Yes
Layer Supported
2
Mounting Type
Rail-mountable, Panel-mountable, Wall Mountable

Description

IDS-105GPP-S2ST10-XT Industrial PoE Switch: 5 x 10/100/1000Base-T Base-T RJ-45 ports, 4 of which are PoE/PoE+ capable and 1 x 1000Base-LX/LH, 1310nm single mode port with duplex ST connector [10 km/ 6.2 miles ]. -40 to 75C industrial extended operating temperature.
