Shop PERLE SYSTEMS

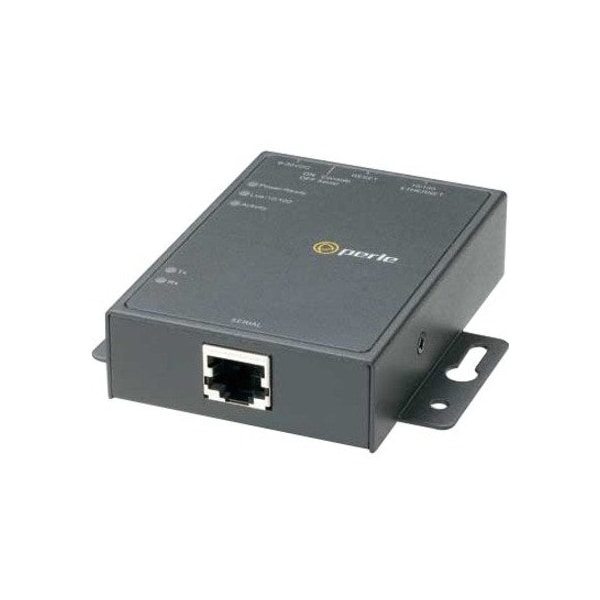

IOLAN DS1 GR DEVICE SERVER 1 X RJ45 RS232/422/485 10/100/1000

  • Mfr # 04031764

  • Zoro # G4406589

product price:  $468.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
12v DC / 24v DC
Depth
2.5"
Height
0.9"
Width
3.5"
Serial Port Interface
Software selectable RS-232/422/485 on RJ45
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
04031764
Zoro #
G4406589
UPC #
734660317641
Country of Origin
Canada

Dimensions

Depth
2.5"
Height
0.9"
Width
3.5"

Details

Input Voltage
12v DC / 24v DC
Serial Port Interface
Software selectable RS-232/422/485 on RJ45
Serial Port Speeds
300bps to 230Kbps with customizable baud rate support
Product Type
Device Server
Package Contents
IOLAN DS1 GR Serial Device Server, 120 V AC (USA) Wall Power Adaptor
Mount Type
Rail-mountable, Wall Mountable, Panel-mountable
Energy Star
Yes
Media Type Supported
Twisted Pair
Processor Speed
600 MHz
Standard Memory
512 MB
Environmentally Friendly
Yes
Network Standard
10/100/1000Base-T
Certifications & Standards
Emissions: CFR47 FCC Part 15 Subpart B:2015 , ICES-003:2016 Issue 6:2016, CISPR 32:2015/EN 55032:2015 (Class A), CISPR 16-2-3:2010/A2:2014 , EN61000-3-2:2014, Limited for Harmonic Current Emissions , EN61000-3-3:2013, Limits of Voltage Fluctuations and Flicker Immunity: CISPR 24:2010/EN 55024:2010 , EN61000-4-2: 2009 Electrostatic Discharge , EN61000-4-3: 2006/A2:2010: RF Electromagnetic Field Modulated , EN61000-4-4: 2004 Fast Transients , EN61000-4-5: 2006 Surge , EN61000-4-6: 2009 RF Continuous Conducted , EN61000-4-8: Power-Frequency Magnetic Field, EN61000-4-11: Voltage Dips and Voltage Interruptions Safety: IEC 62368-1 and EN 62368-1:2014 , CAN/CSA-C22.2 No. 62368-1-14 and UL 62368-1
Number of Serial Ports
1
Ethernet Technology
Gigabit Ethernet
Number of Network (RJ-45) Ports
1
Serial Port
Yes
Management Port
Yes
Network (RJ-45)
Yes
Product Line
IOLAN

Description

IOLAN DG1 RJ45 Device Server: 1 x RJ45 connector with software selectable, RS232/422/485 interface, 10/100/1000 Ethernet, IPv6, COM port redirector, 15kv ESD, AC power adapter included
