Shop PERLE SYSTEMS

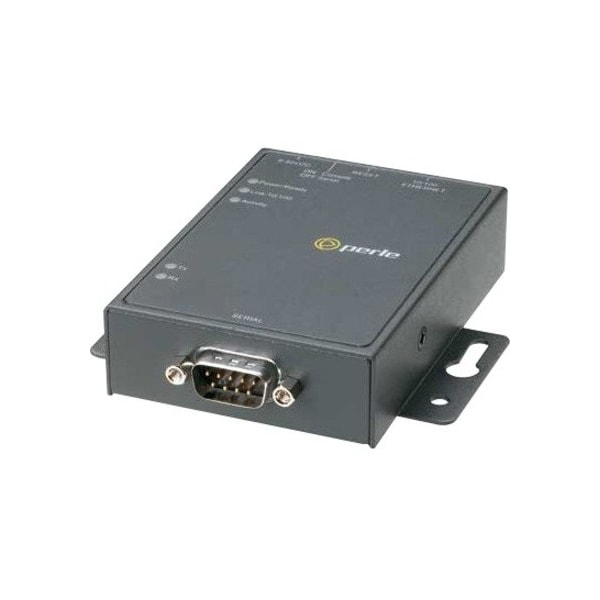

IOLAN DS1T G9 DEVICE SERVER 1 X DB9M 232/422 XT 10/100/1000

  • Mfr # 04031790

  • Zoro # G4412794

product price:  $615.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
12v DC / 24v DC
Height
0.9"
Depth
2.5"
Width
3.5"
Serial Port Interface
Software selectable RS-232/422/485 on DB25F, DB9M or RJ45
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
04031790
Zoro #
G4412794
UPC #
734660317900
Country of Origin
Canada

Dimensions

Height
0.9"
Depth
2.5"
Width
3.5"

Details

Input Voltage
12v DC / 24v DC
Serial Port Interface
Software selectable RS-232/422/485 on DB25F, DB9M or RJ45
Serial Port Speeds
300bps to 230Kbps with customizable baud rate support
Product Type
Device Server
Mount Type
Panel-mountable, Rail-mountable, Wall Mountable
Certifications & Standards
Emissions: CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A , ICES-003, Issue 4, February 2004 (Canada), CISPR 32:2015/EN 55032:2015 (Class A), EN61000-3-2 : 2010, Limits for Harmonic Current Emissions , EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker Immunity: CISPR 24:2010/EN 55024:2010 , EN61000-4-2: 2009 Electrostatic Discharge , EN61000-4-3: 2006/A2:2010: RF Electromagnetic Field Modulated , EN61000-4-4: 2004 Fast Transients , EN61000-4-5: 2006 Surge , EN61000-4-6: 2009 RF Continuous Conducted Safety: IEC 60950-1 (ed 2); am1 am2 and EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, Second Edition
Ethernet Technology
Gigabit Ethernet
Processor Speed
66 MHz
Network Standard
10/100/1000Base-T
Standard Memory
16 MB
Number of Serial Ports
1
Media Type Supported
Twisted Pair
Network (RJ-45)
Yes
Serial Port
Yes
Package Contents
IOLAN DS1T G9 Serial Device Server, 120 V AC (USA) Wall Power Adaptor
Number of Network (RJ-45) Ports
1
Energy Star
Yes
Environmentally Friendly
Yes
Management Port
Yes
Product Line
IOLAN

Description

IOLAN DG1 TX Device Server: 1 x DB9M connector with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, Extended Temperature, IPv6, COM port redirector, 15kv ESD, terminal block power connector
