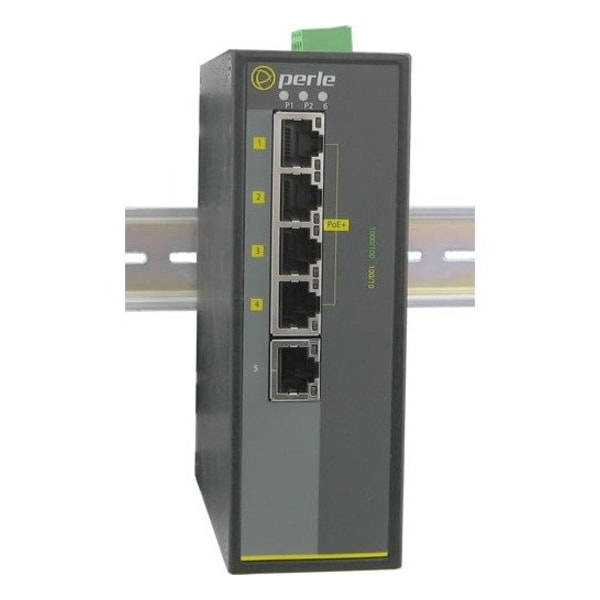

Perle IDS-105GPP-M2ST05-XT - Industrial Ethernet Switch with Power Over Ethernet

  • Mfr # 07011980

  • Zoro # G4412049

product price:
$
842.99
/ea
Free Shipping & Returns

Key Features

Mounting
Panel, Rail, Wall
Standards
Safety: UL 60950-1, IEC 60950-1:2005+A1:2009, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Industrial Safety: UL508 (Safety standard for Industrial Control Equipment )IEEE Standards: 802.3, 802.3u, 802.3ab, 802.3az, 802.3x, 802.3af, 802.3a
Depth
4.4"
Width
5.4"
Includes
IDS-105GPP-M2ST05-XT - Industrial Ethernet Switch with Power Over Ethernet, DIN Rail Attachment, Terminal Block, Installation Guide
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
07011980
Zoro #
G4412049
UPC #
679202119805
Country of Origin
Taiwan, Province of China
Item
Ethernet Switch
Mounting
Panel, Rail, Wall
Standards
Safety: UL 60950-1, IEC 60950-1:2005+A1:2009, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Industrial Safety: UL508 (Safety standard for Industrial Control Equipment )IEEE Standards: 802.3, 802.3u, 802.3ab, 802.3az, 802.3x, 802.3af, 802.3a
Includes
IDS-105GPP-M2ST05-XT - Industrial Ethernet Switch with Power Over Ethernet, DIN Rail Attachment, Terminal Block, Installation Guide
Product Type
Ethernet Switch
Power Source
Power Supply
Ethernet Technology
Gigabit Ethernet
Stack Port
No
Total Number of Network Ports
6
Green Environmental Attribute
Environmentally Friendly
PoE (RJ-45) Port
No
Manageable
No
USB
No
Number of SC Ports
1
Number of Network (RJ-45) Ports
1
Network Technology
10/100/1000Base-T, 1000Base-SX
Fiber Mode Supported
Single-mode
SC Port Type
Simplex
Management Port
No
Uplink Port
No
Port/Expansion Slot Details
6 x Gigabit Ethernet Network
Number of PoE+ (RJ-45) Ports
4
Redundant Power Supply Supported
Yes
Media Type Supported
Optical Fiber, Twisted Pair
Environmentally Friendly
Yes
Layer Supported
2
Mounting Type
Wall Mountable, Panel-mountable, Rail-mountable

Description

IDS-105GPP-M2ST05-XT Industrial PoE Switch: 5 x 10/100/1000Base-T Base-T RJ-45 ports, 4 of which are PoE/PoE+ capable and 1 x 1000Base-SX, 850nm multimode port with duplex ST connector [ 550m/1804 ft ]. -40 to 75C industrial extended operating temperature.
