  5. Perle IDS-409-SFP Managed Industrial Ethernet Switch 9 port Compact DIN Rail Switch

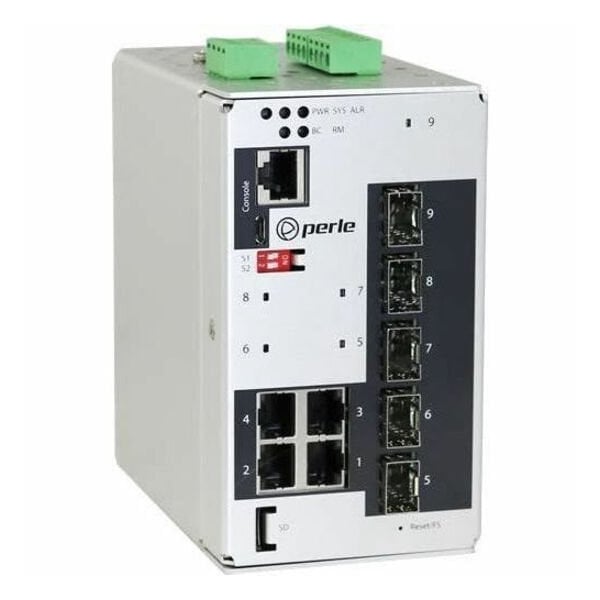

Perle Systems Perle IDS-409-SFP Managed Industrial Ethernet Switch 9 port Compact DIN Rail Switch 07013530 - main

Perle IDS-409-SFP Managed Industrial Ethernet Switch 9 port Compact DIN Rail Switch

  • Mfr # 07013530

  • Zoro # G4410560

product price:  $1,836.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
48 V DC, 24 V DC, 9.6 V DC, 60 V DC, 12 V DC, 24 V AC
Description/Special Features
Fanless, IP20, Plug and Play
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
07013530
Zoro #
G4410560
UPC #
679202135300
Country of Origin
Canada

Dimensions

Depth
3 in
Height
4.8 in
Width
5.1 in

Details

Item
Ethernet Switch
Input Voltage
48 V DC, 24 V DC, 9.6 V DC, 60 V DC, 12 V DC, 24 V AC
Description/Special Features
Fanless, IP20, Plug and Play
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Housing Material
Metal
Connector Type
Terminal Block
Power Consumption
14.70 W
Layer Supported
3
Total Number of Expansion Slots
5
Number of SFP Slots
5
Total Number of Network Ports
4
Maximum Data Transfer Rate
128-MB/s
Mounting Type
Compact, Panel-mountable, DIN Rail Mountable, Wall Mountable
Network (RJ-45)
Yes
Network Technology
10/100/1000Base-T, 100/1000Base-X
Port/Expansion Slot Details
4 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port, 5 x Gigabit Ethernet SFP Expansion Slot
Media Type Supported
Optical Fiber, Twisted Pair
Expansion Slot Type
SFP
Networking Standards
IEEE 802.1w, IEEE 802.1p, IEEE 802.3z, IEEE 802.3, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D
Ethernet Technology
Gigabit Ethernet, Fast Ethernet
Redundant Power Supply Supported
Yes
Power Source
AC/DC, Power Supply
Manageable
Yes

Description

IDS-409-5SFP Industrial Managed Switch, 9 ports: 4 x 10/100/1000Base-T Base-T RJ-45 ports and 5 x 100/1000BASE-X SFP slots (empty). -10 to 60C operating temperature.
