Shop PERLE SYSTEMS

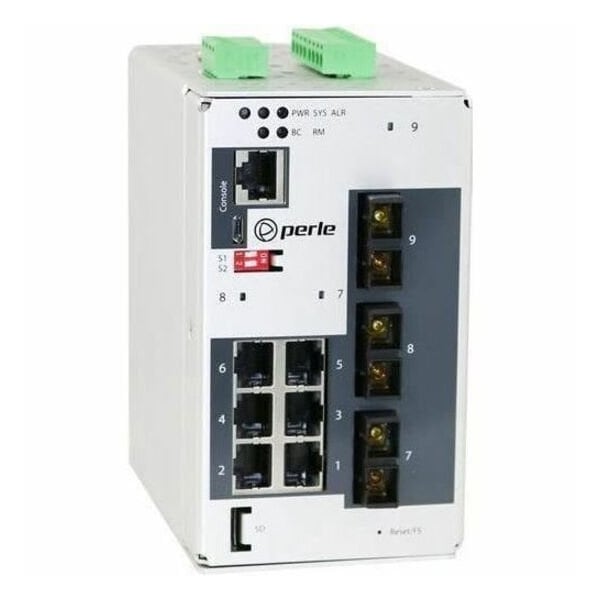

Perle IDS-409F3-C2MD2-SD20-XT - Industrial Managed Ethernet Switch

  • Mfr # 07013810

  • Zoro # G4395985

product price:
$
3,012.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
12 V DC, 24 V DC, 24 V AC, 48 V DC
Description/Special Features
Surge Protection, Fanless, IP20, Remote Monitoring (RMON), Plug and Play, Broadcast Storm Control
Standards
IEEE 802.3
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Dual Power Input
12/24/48 VDC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
07013810
Zoro #
G4395985
UPC #
679202138103
Country of Origin
Canada
Item
Ethernet Switch
Input Voltage
12 V DC, 24 V DC, 24 V AC, 48 V DC
Description/Special Features
Surge Protection, Fanless, IP20, Remote Monitoring (RMON), Plug and Play, Broadcast Storm Control
Standards
IEEE 802.3
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Dual Power Input
12/24/48 VDC
Power Source
AC/DC, Power Supply
Media Type Supported
Optical Fiber, Twisted Pair
Network (RJ-45)
Yes
Housing Material
Metal
Network Technology
100Base-LX, 10/100/1000Base-T, 100Base-FX
Networking Standards
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3u, IEEE 802.3ad
Manageable
Yes
Redundant Power Supply Supported
Yes
Connector Type
Terminal Block
Mounting Type
Panel-mountable, Wall Mountable, DIN Rail Mountable, Compact
Layer Supported
3
Port/Expansion Slot Details
6 x Gigabit Ethernet Network, 2 x Fast Ethernet Duplex SC Connector, 1 x Fast Ethernet Duplex SC Connector
Total Number of Network Ports
9
Ethernet Technology
Gigabit Ethernet, Fast Ethernet
Fiber Mode Supported
Multi-mode, Single-mode

Description

IDS-409F3-C2MD2-SD20-XT Industrial Managed Switch, 9 ports: 6 x 10/100/1000Base-T Base-T RJ-45 ports and 2 x 100Base-FX, 1310nm multimode port with duplex SC connector [ up to 5km/3.1 miles ] and 1 x 100Base-LX, 1310nm single mode port with duplex SC connector [20 km/ 12.4 miles ]. -40 to 75C Industrial extended operating temperature.
