Perle IDS-409F3-C2MD2-SD40-XT - Industrial Managed Ethernet Switch
Mfr # 07013830
Zoro # G4393386
original price:Â $4,041.99 , new price: $3,428.99 , 15 percent off
new price:Â
$
3,428.99
/ea
Free Shipping & Returns
Key Features
Input Voltage
24 V AC, 12 V DC, 48 V DC, 24 V DC
Description/Special Features
Surge Protection, Plug and Play, IP20, Remote Monitoring (RMON), Broadcast Storm Control, Fanless
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 07013830
- Zoro #
- G4393386
- UPC #
- 679202138301
- Country of Origin
- Canada
- Item
- Ethernet Switch
- Input Voltage
- 24 V AC, 12 V DC, 48 V DC, 24 V DC
- Description/Special Features
- Surge Protection, Plug and Play, IP20, Remote Monitoring (RMON), Broadcast Storm Control, Fanless
- Standards
- IEEE 802.3
- Dual Power Input
- 12/24/48 VDC
- Access Ports
- Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
- Layer Supported
- 3
- Ethernet Technology
- Fast Ethernet, Gigabit Ethernet
- Manageable
- Yes
- Networking Standards
- IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3, IEEE 802.1D, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3z, IEEE 802.3x
- Network (RJ-45)
- Yes
- Network Technology
- 100Base-LX, 10/100/1000Base-T, 100Base-FX
- Housing Material
- Metal
- Redundant Power Supply Supported
- Yes
- Fiber Mode Supported
- Single-mode, Multi-mode
- Media Type Supported
- Optical Fiber, Twisted Pair
- Port/Expansion Slot Details
- 2 x Fast Ethernet Duplex SC Connector, 1 x Fast Ethernet Duplex SC Connector, 6 x Gigabit Ethernet Network
- Total Number of Network Ports
- 9
- Connector Type
- Terminal Block
- Mounting Type
- DIN Rail Mountable, Wall Mountable, Panel-mountable, Compact
- Power Source
- Power Supply, AC/DC
Description

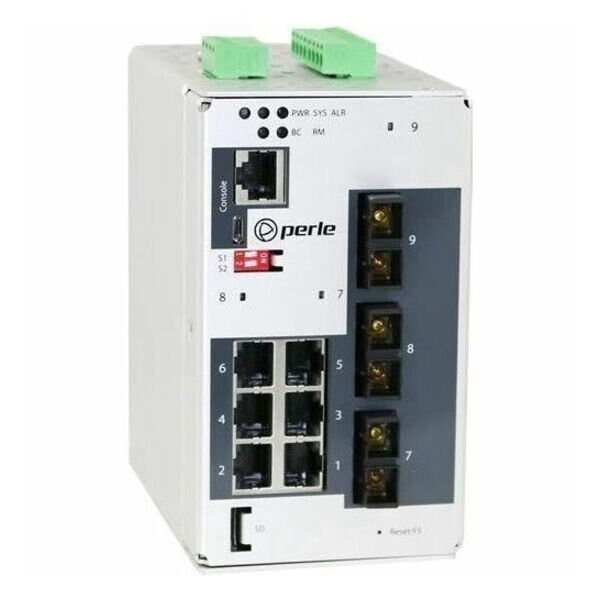

IDS-409F3-C2MD2-SD40-XT Industrial Managed Switch, 9 ports: 6 x 10/100/1000Base-T Base-T RJ-45 ports and 2 x 100Base-FX, 1310nm multimode port with duplex SC connector [ up to 5km/3.1 miles ] and 1 x 100Base-LX, 1310nm single mode port with duplex SC connector [40 km/ 24.9 miles ]. -40 to 75C Industrial extended operating temperature.
