Pp-Rj-Scc Patch Panel

Mfr # 27030188
Zoro # G4571807

158.99

Free Shipping & Returns

Key Features

Height

101.3 mm

Depth

50 mm

Color

Gray

Width

23.8 mm

Conductor cross section flexible min.

0.2 mm²

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 27030188
Zoro #: G4571807
UPC #: 679202034306
Country of Origin: Germany

Dimensions

Height: 101.3 mm
Depth: 50 mm
Width: 23.8 mm
Transmission length: 100 m (including patch cables)
Stripping length: 8 mm

Details

Color: Gray
Conductor cross section flexible min.: 0.2 mm²
Conductor cross section AWG max.: 16
Permissible humidity (operation): 10 % ... 95 % (non-condensing)
Test result: 10g for 16ms, 1000shocks in each spatial direction, 10Hz...57Hz, amplitude ±3.5mm, 57Hz...150Hz, 5g, 30g for 11ms, three shocks in each spatial direction
Conductor cross section flexible max.: 1.5 mm²
Maximum output current: 725 mA (Per channel)
UL, USA: UL60079-0 Ed.6 / UL60079-15 Ed.4
MTTF: 105699 Years
Conductor cross section AWG min.: 26
Degree of pollution: 2
Degree of protection: IP20 (Manufacturer's declaration)
Conductor cross section solid max.: 1.5 mm²
Overvoltage category: II
Altitude: 5000 m (For restrictions see manufacturer's declaration) / 2000 m (ATEX approval)
Connection method: RJ45 CAT5e, Push-in connectionRJ45 socket
Pin assignment: 1:1
Type of test: Continuous shock according to EN60068-2-27/IEC60068-2-27, Vibration resistance in acc. with EN60068-2-6/IEC60068-2-6, Shock in acc. with EN60068-2-27/IEC60068-2-27
Interface 2: Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
Serial transmission speed: 10/100/1000 Mbps
Housing material: Plastic
Interface 1: Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
Noxious gas test: ISA-S71.04-1985 G3 Harsh Group A
Ambient temperature (operation): -40°C ... 75°C
Conductor cross section solid min.: 0.2 mm²
ATEX: ï˜ II 3 G Ex nA IIC Gc U
Conformance: CE-compliant
Caption: Compact housing
Maximum output power: 60 W
Ambient temperature (storage/transport): -40°C ... 85°C
Output nominal voltage: < 60 V (ATEX approval)
UL, Canada: CSA22.2 No.60079-0 Ed.3 / CSA22.2 No.60079-15:16
Rated insulation voltage: 85 V DC

Description

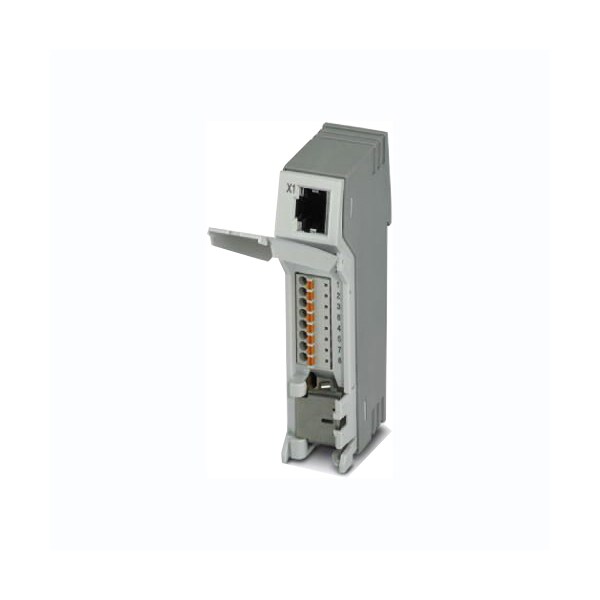

PP-RJ-SCC DIN Rail Patch Panel: 1 x RJ45 socket, 1 x Push-in terminal block, 10/100/1000 Mbps, IP20, shield contacting with strain relief
