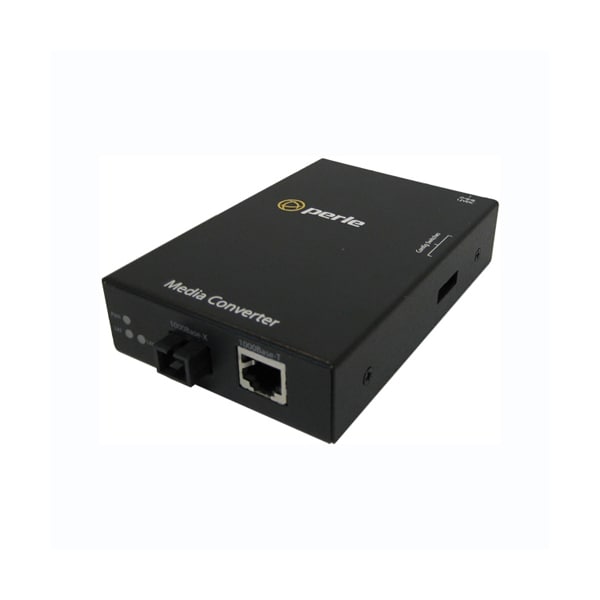

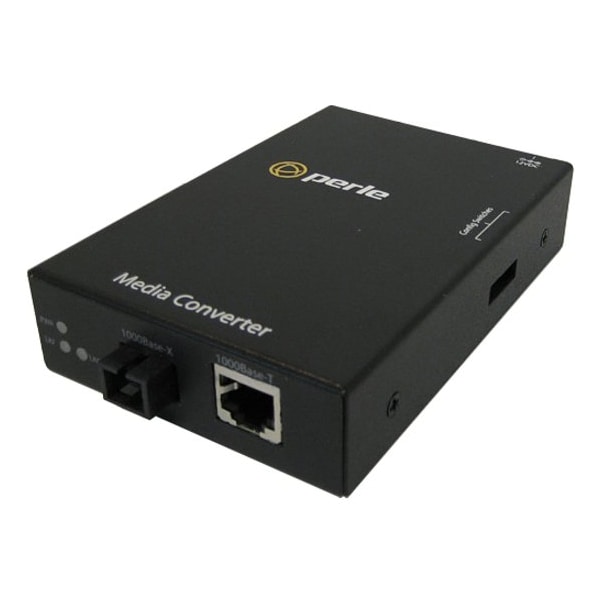

S-1000-S1Sc10D Media Converter

Mfr # 05050084
Zoro # G4407106

$1,189.99

Free Shipping & Returns

Key Features

Bit Error Rate (BER)

<10-12

Operating temperature

0° C to 50° C (32° F to 122° F)

Fiber Fault Alert

The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled; Enabled (Default - Up); When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature; Disabled (Down)

Copper link on / Receive activity (LKC)

This green LED is operational only when power is applied. The LED i on when the 1000Base-T link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-T interface has been taken down as a result of a fault on the 1000Base-T interface.

Laser Safety

EN 60825-1:2007

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05050084

Zoro #

G4407106

UPC #

734660500845

Country of Origin

Canada

Details

Bit Error Rate (BER)

<10-12

Operating temperature

0° C to 50° C (32° F to 122° F)

Fiber Fault Alert

Copper link on / Receive activity (LKC)

Laser Safety

EN 60825-1:2007

Immunity

EN55024

Operating Humidity

5% to 90% non-condensing

Operating Altitude

Up to 3,048 meters (10,000 feet)

Emissions

FCC Part 15 Class A, EN55022 Class A

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Electrical Safety

UL 60950-1

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Dimentions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Fiber link on / Receive activity (LKF)

This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-X interface has been taken down as a result of a fault on the 1000Base-T interface.

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Magnetic Isolation

1.5kv

Pause

When Fiber Auto Negotiation is disabled Pause should only be enabled when all devices connected to the media converter support pause; Enabled(Default)- The Media converter will advertise Pause capable, Asymmetric pause not needed during Auto-Negotiation; Disabled- The Media converter will advertise that it does not have Pause capability during Auto-Negotiation.

1000Base-T

Single mode single SC Media Converter; RJ45 connector, 4 pair CAT 5 UTP cable or cable

Power Consumption

3.0 watts

Auto-Negotiation

Enabled (Default - Up)- In this mode the 1000Base-X and the 1000Base-T will negotiate to the HCD of the two link partners. The 1000Base-X will link up after the negotiation is completed and the 1000Base-T has linked up; Disabled- The 1000Base-X will not use auto negotiation. The 1000Base-T will negotiate to the HCD of the Switch settings and the link partner.

Remote Loopback

The media converter can perform a loopback on the 1000Base-X fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. The 1000Base-T transmitter is taken off the interface.

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.

Heat Output ( BTU/HR )

10.2

Current

250 mA

Duplex

Full (Default-Up)- The media converter will advertise Full Duplex Capable, Half Duplex Capable; AUTO (Down)-The Media converter will advertise Full Duplex Not Capable, Half Duplex Capable.

Storage Humidity

5% to 95% non-condensing

Description

S-1000-S1SC10D - Gigabit Media Converter: 1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-BX 1490nm TX / 1310nm RX single strand fiber, single mode (SC) [10 km/6.2 miles] - USA Power Cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
