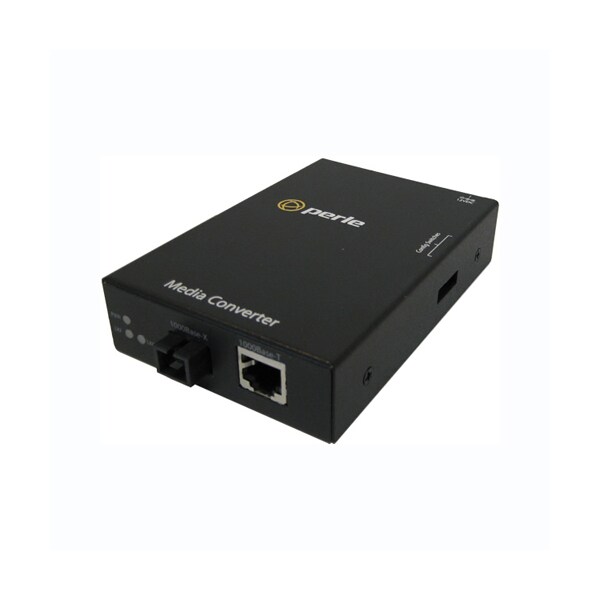

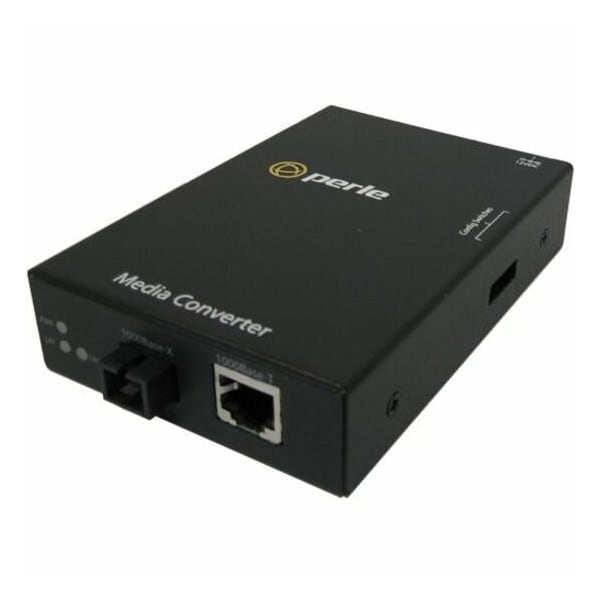

S-1000-S1Sc120D Media Convertr

Mfr # 05050884
Zoro # G4394506

$3,690.99

Free Shipping & Returns

Key Features

Heat Output ( BTU/HR )

10.2

Operating Humidity

5% to 90% non-condensing

Auto-Negotiation

Enabled (Default - Up)- In this mode the 1000Base-X and the 1000Base-T will negotiate to the HCD of the two link partners. The 1000Base-X will link up after the negotiation is completed and the 1000Base-T has linked up; Disabled- The 1000Base-X will not use auto negotiation. The 1000Base-T will negotiate to the HCD of the Switch settings and the link partner.

Copper link on / Receive activity (LKC)

This green LED is operational only when power is applied. The LED i on when the 1000Base-T link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-T interface has been taken down as a result of a fault on the 1000Base-T interface.

Laser Safety

EN 60825-1:2007

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05050884

Zoro #

G4394506

UPC #

734660508841

Country of Origin

Canada

Details

Heat Output ( BTU/HR )

10.2

Operating Humidity

5% to 90% non-condensing

Auto-Negotiation

Copper link on / Receive activity (LKC)

Laser Safety

EN 60825-1:2007

Power Consumption

3.0 watts

Fiber Fault Alert

The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled; Enabled (Default - Up); When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature; Disabled (Down)

1000Base-T

Single mode single SC Media Converter; RJ45 connector, 4 pair CAT 5 UTP cable or cable

Storage Humidity

5% to 95% non-condensing

Emissions

FCC Part 15 Class A, EN55022 Class A

Duplex

Full (Default-Up)- The media converter will advertise Full Duplex Capable, Half Duplex Capable; AUTO (Down)-The Media converter will advertise Full Duplex Not Capable, Half Duplex Capable.

Bit Error Rate (BER)

<10-12

Current

250 mA

Immunity

EN55024

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Magnetic Isolation

1.5kv

Fiber link on / Receive activity (LKF)

This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-X interface has been taken down as a result of a fault on the 1000Base-T interface.

Remote Loopback

The media converter can perform a loopback on the 1000Base-X fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. The 1000Base-T transmitter is taken off the interface.

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.

Electrical Safety

UL 60950-1

Pause

When Fiber Auto Negotiation is disabled Pause should only be enabled when all devices connected to the media converter support pause; Enabled(Default)- The Media converter will advertise Pause capable, Asymmetric pause not needed during Auto-Negotiation; Disabled- The Media converter will advertise that it does not have Pause capability during Auto-Negotiation.

Operating temperature

0° C to 50° C (32° F to 122° F)

Dimentions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Operating Altitude

Up to 3,048 meters (10,000 feet)

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Description

S-1000-S1SC120D - Gigabit Media Converter: 1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-BX 1590nm TX / 1510nm RX single strand fiber, single mode (SC) [120 km/75 miles] - USA Power Cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
