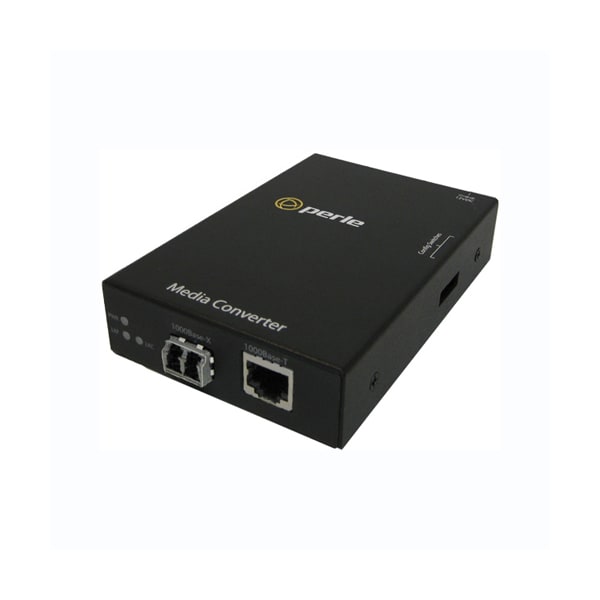

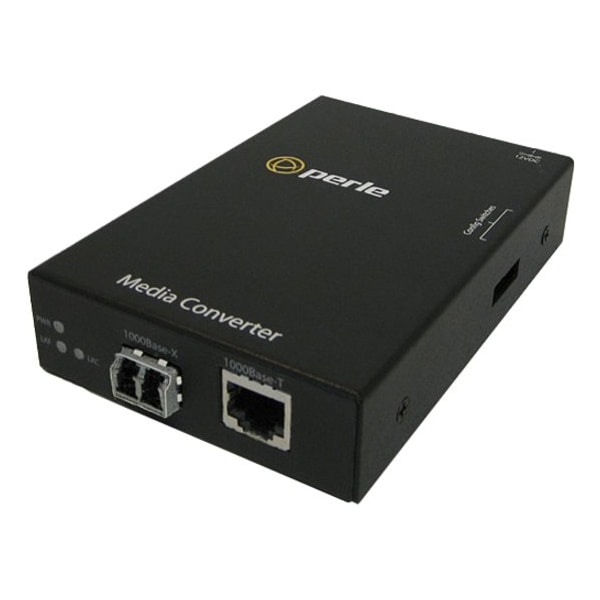

S-1000-S2Lc40 Media Converter

Mfr # 05050044
Zoro # G4405654

$1,549.99

Free Shipping & Returns

Key Features

Operating Humidity

5% to 90% non-condensing

Magnetic Isolation

1.5kv

Emissions

FCC Part 15 Class A, EN55022 Class A

Remote Loopback

The media converter can perform a loopback on the 1000Base-X fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. The 1000Base-T transmitter is taken off the interface.

Heat Output ( BTU/HR )

10.2

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05050044

Zoro #

G4405654

UPC #

734660500449

Country of Origin

Canada

Details

Operating Humidity

5% to 90% non-condensing

Magnetic Isolation

1.5kv

Emissions

FCC Part 15 Class A, EN55022 Class A

Remote Loopback

Heat Output ( BTU/HR )

10.2

Fiber link on / Receive activity (LKF)

This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-X interface has been taken down as a result of a fault on the 1000Base-T interface.

Electrical Safety

UL 60950-1

Current

250 mA

Laser Safety

EN 60825-1:2007

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.

1000Base-T

Single dual LC Media Converter; RJ45 connector, 4 pair CAT 5 UTP cable or cable

Dimentions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Operating Altitude

Up to 3,048 meters (10,000 feet)

Immunity

EN55024

Storage Humidity

5% to 95% non-condensing

Operating temperature

0° C to 50° C (32° F to 122° F)

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Duplex

Full (Default-Up)- The media converter will advertise Full Duplex Capable, Half Duplex Capable; AUTO (Down)-The Media converter will advertise Full Duplex Not Capable, Half Duplex Capable.

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Bit Error Rate (BER)

<10-12

Copper link on / Receive activity (LKC)

This green LED is operational only when power is applied. The LED i on when the 1000Base-T link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-T interface has been taken down as a result of a fault on the 1000Base-T interface.

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Pause

When Fiber Auto Negotiation is disabled Pause should only be enabled when all devices connected to the media converter support pause; Enabled(Default)- The Media converter will advertise Pause capable, Asymmetric pause not needed during Auto-Negotiation; Disabled- The Media converter will advertise that it does not have Pause capability during Auto-Negotiation.

Auto-Negotiation

Enabled (Default - Up)- In this mode the 1000Base-X and the 1000Base-T will negotiate to the HCD of the two link partners. The 1000Base-X will link up after the negotiation is completed and the 1000Base-T has linked up; Disabled- The 1000Base-X will not use auto negotiation. The 1000Base-T will negotiate to the HCD of the Switch settings and the link partner.

Power Consumption

3.0 watts

Fiber Fault Alert

The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled; Enabled (Default - Up); When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature; Disabled (Down)

Description

S-1000-S2LC40 - Gigabit Media Converter: 1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-EX 1310 nm single mode (LC) [40 km/24.9 miles] - USA Power Cord
