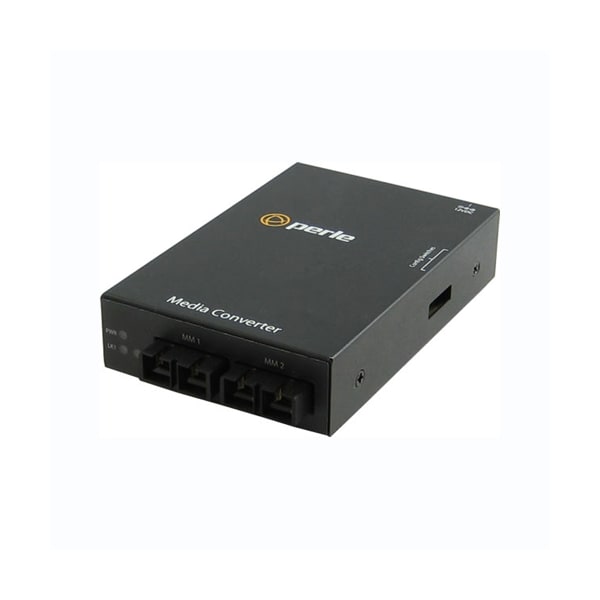

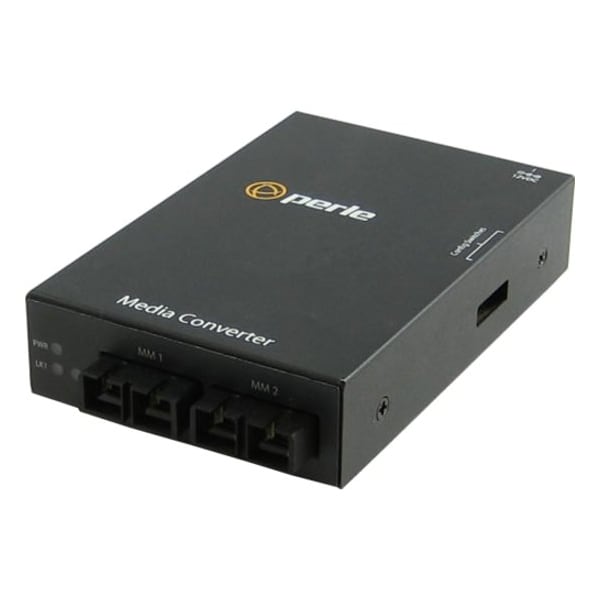

S-1000Mm-M2Sc2 Media Converter

Mfr # 05060474
Zoro # G4405094

$1,184.99

Free Shipping & Returns

Key Features

Height

1 in

Depth

4.7 in

Width

3.1 in

Total Number of Ports

Form Factor

Rack-mountable, Desktop, Wall Mountable, Rail-mountable

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05060474

Zoro #

G4405094

UPC #

734660604741

Country of Origin

Canada

Dimensions

Height

1 in

Depth

4.7 in

Width

3.1 in

Dimensions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Details

Total Number of Ports

Form Factor

Rack-mountable, Desktop, Wall Mountable, Rail-mountable

Fiber Optic Cable Standard

62.5/125 µm, 50/125 µm

Environmentally Friendly

Yes

Package Contents

S-1000MM-M2SC2 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, Universal DC Adapter

Media Type Supported

Optical Fiber

Product Name

S-1000MM-M2SC2 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter

Product Type

Transceiver/Media Converter

Number of SC Ports

Weight (Approximate)

10.56 oz

Input voltage

30 V DC

Certifications & Standards

Immunity: EN55024, IEEE Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x Emissions: FCC Part 15 Class A, EN55022 Class A,EN61000-3-2,CISPR 22 Class A Electrical Safety: EN60950,UL 60950-1,CE Laser Safety: EN 60825-1:2007,Class 1 Laser Safety Requirements per IEC-60825 FDA/CDRH Standards,21CFR1040.10,21CFR1040.11 Others: ECCN: 5A991A,HTSUS Number: 8517.62.0050

SC Port Type

Duplex

Network Technology

1000Base-SX, 1000Base-LX

Fiber Mode Supported

Multi-mode

Maximum Distance Supported

1.24 Mile

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface

Emissions

FCC Part 15 Class A, EN55022 Class A

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Heat Output ( BTU/HR )

8.53

Fiber Fault Alert

Enabled - (default up)- If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports; Disabled: The media converter will not monitor for fiber fault or generate them.

Operating Altitude

Up to 3,048 meters (10,000 feet)

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Auto-Negotiation

Auto (default up)- Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through; Off- Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through.

Power Consumption

2.5 watts

Remote Loopback #2

The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface

Operating Humidity

5% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Electrical Safety

UL 60950-1

Immunity

EN55024

1000Base-X

Multimode dual SC [ 550 m/1804 ft ] to multimode dual SC fiber connector model; Available in SC, ST and LC connector models

Current

0.21 amps

Operating temperature

0° C to 50° C (32° F to 122° F)

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Laser Safety

EN 60825-1:2007

Bit Error Rate (BER)

<10-12

Description

S-1000MM-M2SC2 - Gigabit Fiber to Fiber Media Converter: 1000BASE-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000BASE-LX 1310nm Extended multimode (SC) [2km /6562 ft.] - USA Power Cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
