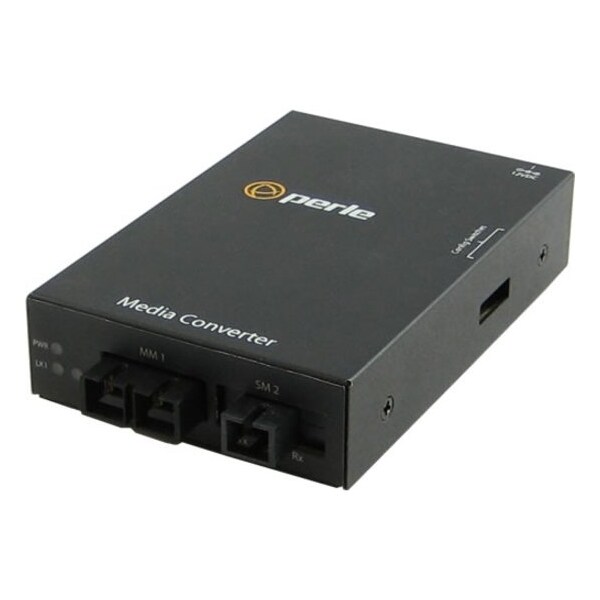

S-1000Mm-S1Sc10U Media Convert

Mfr # 05060344
Zoro # G4406780

$1,293.99

Free Shipping & Returns

Key Features

Storage Humidity

5% to 95% non-condensing

Remote Loopback #2

The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface

Operating Humidity

5% to 90% non-condensing

Bit Error Rate (BER)

<10-12

Operating Altitude

Up to 3,048 meters (10,000 feet)

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05060344

Zoro #

G4406780

UPC #

734660603447

Country of Origin

Canada

Dimensions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Details

Storage Humidity

5% to 95% non-condensing

Remote Loopback #2

Operating Humidity

5% to 90% non-condensing

Bit Error Rate (BER)

<10-12

Operating Altitude

Up to 3,048 meters (10,000 feet)

Heat Output ( BTU/HR )

8.53

Operating temperature

0° C to 50° C (32° F to 122° F)

Immunity

EN55024

Current

0.21 amps

1000Base-X

Multimode dual SC [ 550 m/1804 ft ] to single mode single SC fiber connector model; Available in SC, ST and LC connector models

Laser Safety

EN 60825-1:2007

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Power Consumption

2.5 watts

Emissions

FCC Part 15 Class A, EN55022 Class A

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Electrical Safety

UL 60950-1

Fiber Fault Alert

Enabled - (default up)- If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports; Disabled: The media converter will not monitor for fiber fault or generate them.

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Auto-Negotiation

Auto (default up)- Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through; Off- Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through.

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Description

S-1000MM-S1SC10U - Gigabit Fiber to Fiber Media Converter: 1000BASE-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000BASE-BX 1310nm TX / 1490nm RX single strand fiber, single mode (SC) [10 km/6.2 miles] - USA Power Cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
