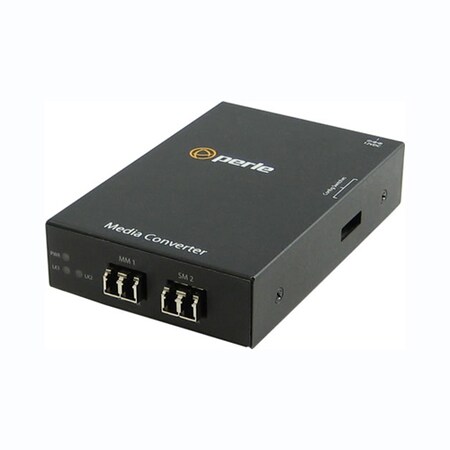

S-1000Mm-S2Lc120 Media Convert

Mfr # 05060324
Zoro # G4408077

$4,404.99

Free Shipping & Returns

Key Features

Electrical Safety

UL 60950-1

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Bit Error Rate (BER)

<10-12

Laser Safety

EN 60825-1:2007

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05060324

Zoro #

G4408077

UPC #

734660603249

Country of Origin

Canada

Dimensions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Details

Electrical Safety

UL 60950-1

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Bit Error Rate (BER)

<10-12

Laser Safety

EN 60825-1:2007

Operating Humidity

5% to 90% non-condensing

Auto-Negotiation

Auto (default up)- Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through; Off- Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through.

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface

Heat Output ( BTU/HR )

8.53

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Emissions

FCC Part 15 Class A, EN55022 Class A

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Remote Loopback #2

The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Immunity

EN55024

Power Consumption

2.5 watts

Operating temperature

0° C to 50° C (32° F to 122° F)

Current

0.21 amps

Operating Altitude

Up to 3,048 meters (10,000 feet)

Fiber Fault Alert

Enabled - (default up)- If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports; Disabled: The media converter will not monitor for fiber fault or generate them.

Storage Humidity

5% to 95% non-condensing

1000Base-X

Multimode dual LC [ 550 m/1804 ft ] to single mode dual LC fiber connector model; Available in SC, ST and LC connector models

Description

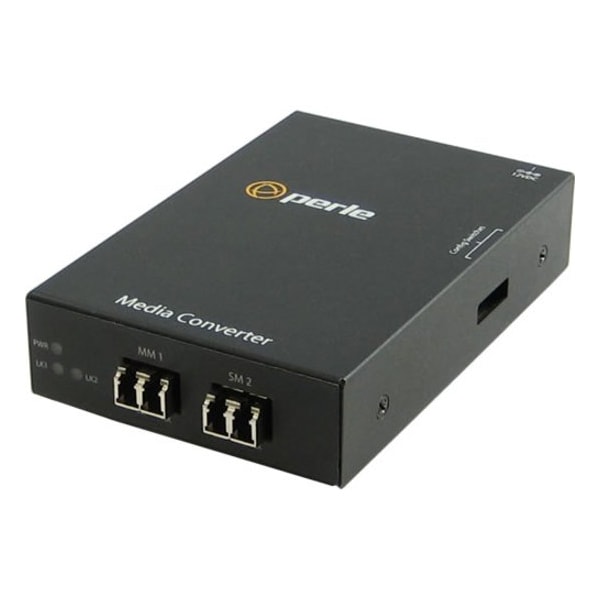

S-1000MM-S2LC120 - Gigabit Fiber to Fiber Media Converter: 1000BASE-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000BASE-ZX 1550 nm single mode (LC) [120 km/74.6 miles] - USA Power Cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
