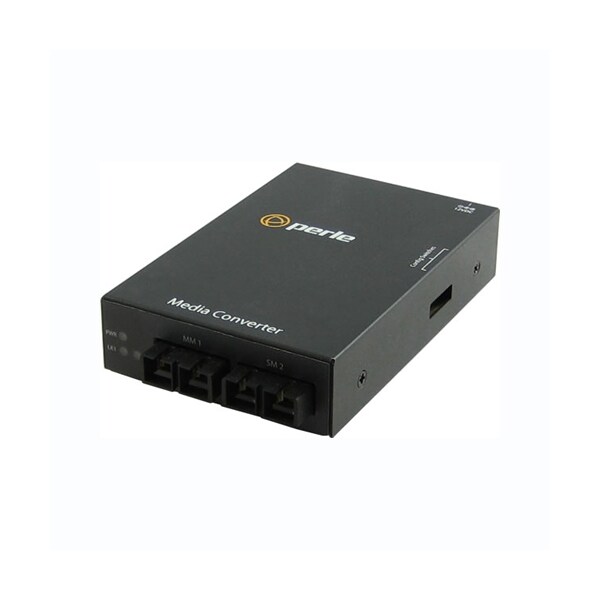

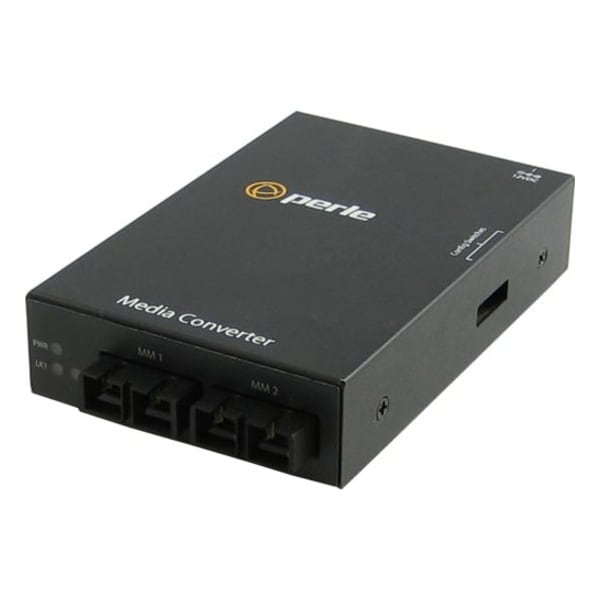

S-100Mm-S2Sc20 Media Converter

Mfr # 05060034
Zoro # G4407760

$856.99

Free Shipping & Returns

Key Features

Height

1 in

Width

3.1 in

Depth

4.7 in

Package Contents

S-100MM-S2SC20 Media Converter, Universal AC/DC Adapter

Fiber Optic Cable Standard

9/125 µm, 100/140 µm, 85/125 µm, 50/125 µm, 62.5/125 µm

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05060034

Zoro #

G4407760

UPC #

734660600347

Country of Origin

Canada

Dimensions

Height

1 in

Width

3.1 in

Depth

4.7 in

Dimensions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Details

Package Contents

S-100MM-S2SC20 Media Converter, Universal AC/DC Adapter

Fiber Optic Cable Standard

9/125 µm, 100/140 µm, 85/125 µm, 50/125 µm, 62.5/125 µm

Maximum Distance Supported

12.43 Mile

Network Technology

100Base-FX, 100Base-LX

Total Number of Ports

SC Port Type

Duplex

Product Name

S-100MM-S2SC20 Media Converter

Product Type

Transceiver/Media Converter

Number of SC Ports

Environmentally Friendly

Yes

Weight (Approximate)

10.56 oz

Form Factor

Rack-mountable, Rail-mountable, Wall Mountable

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Immunity

EN55024

Link Pass Through

Enabled (Default)- When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter.If disabled,the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Current

0.29 amps

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Storage temperature

minimum range of -25 C to 70 C (-13 F to 158 F)

Laser Safety

EN 60825-1:2007

Operating temperature

0 C to 50 C (32 F to 122 F)

Remote Loopback #2

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.

Operating Humidity

5% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.

Heat Output ( BTU/HR )

11.9

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Electrical Safety

UL 60950-1

Bit Error Rate (BER)

<10-12

Emissions

FCC Part 15 Class B*, EN55022 Class B*

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Fiber Optic Cable

Multimode dual SC [ 2 km/1.2 ] to single dual SC fiber connector model; Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITu-T 625)

Operating Altitude

Up to 3,048 meters (10,000 feet)

Power Consumption

3.5 watts

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Description

S-100MM-S2SC20 - Fast Ethernet Fiber to Fiber Media Converter: 100BASE-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-LX 1310nm single mode (SC) [20 km/12.4 miles] - USA Power Cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
