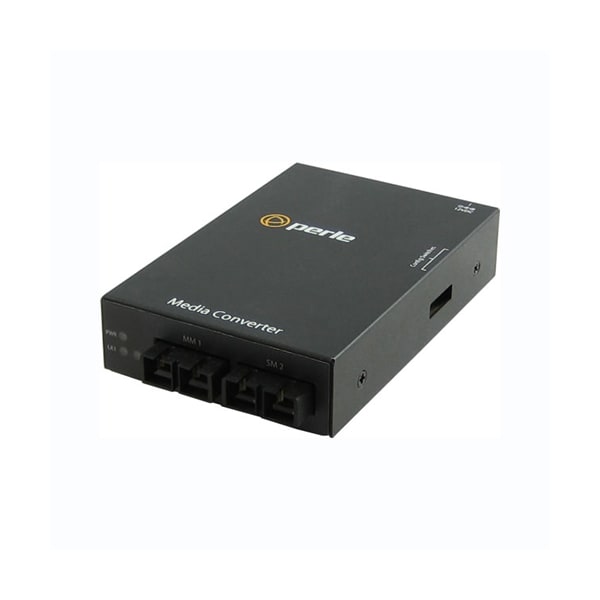

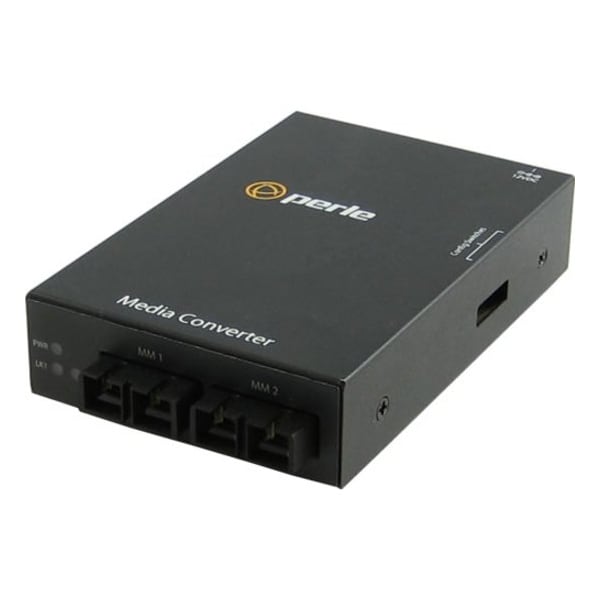

S-100Mm-S2Sc40 Media Converter

Mfr # 05060064
Zoro # G4403728

$1,027.99

Free Shipping & Returns

Key Features

Depth

4.7 in

Width

3.1 in

Height

1 in

Weight (Approximate)

10.56 oz

Network Technology

100Base-FX, 100Base-EX

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05060064

Zoro #

G4403728

UPC #

734660600644

Country of Origin

Canada

Dimensions

Depth

4.7 in

Width

3.1 in

Height

1 in

Dimensions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Details

Weight (Approximate)

10.56 oz

Network Technology

100Base-FX, 100Base-EX

Form Factor

Rail-mountable, Wall Mountable, Rack-mountable

Number of SC Ports

Product Name

S-100MM-S2SC40 Media Converter

Fiber Optic Cable Standard

85/125 µm, 9/125 µm, 100/140 µm, 50/125 µm, 62.5/125 µm

Product Type

Transceiver/Media Converter

Total Number of Ports

SC Port Type

Duplex

Maximum Distance Supported

24.85 Mile

Package Contents

S-100MM-S2SC40 Media Converter, Universal AC/DC Adapter

Environmentally Friendly

Yes

Current

0.29 amps

Fiber Optic Cable

Multimode dual SC [ 2 km/1.2 ] to single dual SC fiber connector model; Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITu-T 625)

Storage temperature

minimum range of -25 C to 70 C (-13 F to 158 F)

Storage Humidity

5% to 95% non-condensing

Electrical Safety

UL 60950-1

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Remote Loopback #2

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.

Bit Error Rate (BER)

<10-12

Link Pass Through

Enabled (Default)- When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter.If disabled,the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.

Immunity

EN55024

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Heat Output ( BTU/HR )

11.9

Operating Altitude

Up to 3,048 meters (10,000 feet)

Emissions

FCC Part 15 Class B*, EN55022 Class B*

Operating Humidity

5% to 90% non-condensing

Power Consumption

3.5 watts

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Operating temperature

0 C to 50 C (32 F to 122 F)

Laser Safety

EN 60825-1:2007

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Description

S-100MM-S2SC40 - Fast Ethernet Fiber to Fiber Media Converter: 100BASE-FX 1310nm multimode (SC) [2 km/1.2 miles] to 100Base-EX 1310nm single mode (SC) [40 km/24.9 miles] - USA Power Cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
