- MFR #
- 05060044
- Zoro #
- G4406494
- UPC #
- 734660600446
- Country of Origin
- Canada
- Environmentally Friendly
- Yes
- ST Port Type
- Duplex
- Package Contents
- S-100MM-S2ST20 Media Converter, Universal AC/DC Adapter
- Number of ST Ports
- 2
- Form Factor
- Wall Mountable, Rack-mountable, Rail-mountable
- Product Name

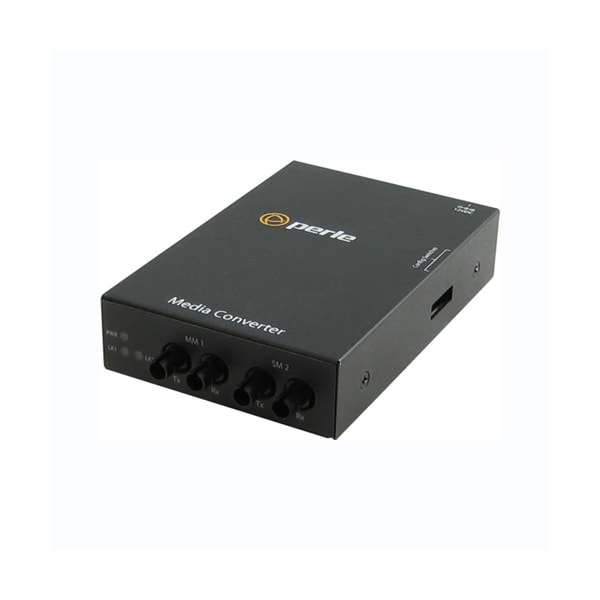

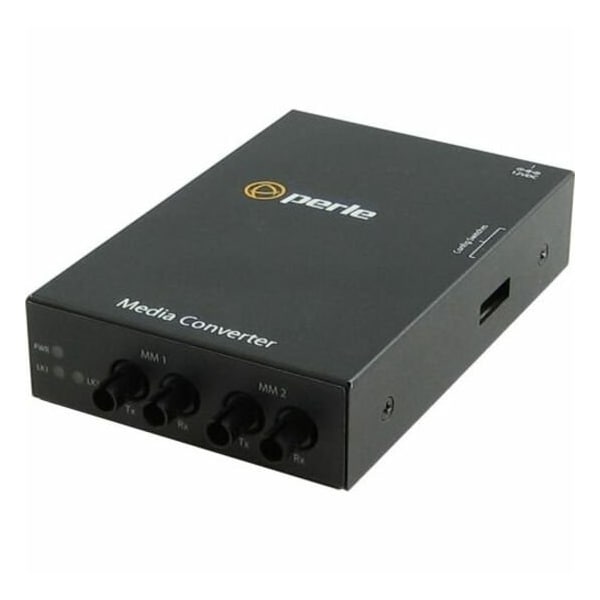

- S-100MM-S2ST20 Media Converter
- Weight (Approximate)
- 10.56 oz
- Maximum Distance Supported
- 12.43 Mile
- Fiber Optic Cable Standard
- 85/125 µm, 100/140 µm, 62.5/125 µm, 50/125 µm
- Product Type
- Transceiver/Media Converter
- Network Technology
- 100Base-FX, 100Base-LX
- Total Number of Ports
- 2
- Power Connector
- 5.5mm x 9.5mm x 2.1mm barrel socket
- Current
- 0.29 amps
- Immunity
- EN55024
- Link Pass Through
Enabled (Default)- When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter.If disabled,the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.
- Universal AC/DC adapter
- 100-240v AC, regulated DC adapter included
- Operating Humidity
- 5% to 90% non-condensing
- Electrical Safety
- UL 60950-1
- Remote Loopback #1
- The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
- Fiber Optic Cable
- Multimode dual ST [ 2 km/1.2 ] to single dual ST fiber connector model; Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITu-T 625)
- Fiber link 2 on / Receive activity (LK2)
- This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
- Laser Safety
- EN 60825-1:2007
- Power Consumption
- 3.5 watts
- Operating temperature
- 0 C to 50 C (32 F to 122 F)
- Remote Loopback #2
- The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.
- Fiber link 1 / Receive activity (LK1)
- This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
- Storage temperature
- minimum range of -25 C to 70 C (-13 F to 158 F)
- Bit Error Rate (BER)
- <10-12
- Heat Output ( BTU/HR )
- 11.9
- Storage Humidity
- 5% to 95% non-condensing
- Input Supply Voltage
- 6 - 30 vDC, unregulated ( 12 vDC Nominal )
- Emissions
- FCC Part 15 Class B*, EN55022 Class B*
- Operating Altitude
- Up to 3,048 meters (10,000 feet)
- Power / TST
- This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.
