- Network Technology
- 10/100Base-TX, 100Base-FX
- Maximum Distance Supported
- 1.24 Mile
- Fiber Mode Supported
- Multi-mode
- Total Number of Ports
- 2
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Optical Fiber, Twisted Pair
- Input voltage
- 30 V DC
- Certifications & Standards
Immunity: EN55024, IEEE Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3xy Emissions: FCC Part 15 Class A, EN55022 Class A,EN61000-3-2,CISPR 22 Class A Electrical Safety: EN60950,UL 60950-1,CE Laser Safety: EN 60825-1:2007,Class 1 Laser Safety Requirements per IEC-60825 FDA/CDRH Standards,21CFR1040.10,21CFR1040.11 Others: ECCN: 5A991A,HTSUS Number: 8517.62.0050
- ST Port Type
- Duplex
- Number of ST Ports
- 1
- Network (RJ-45)
- Yes
- Weight (Approximate)
- 10.56 oz
- Fiber Optic Cable Standard
- 62.5/125 µm
- Product Name

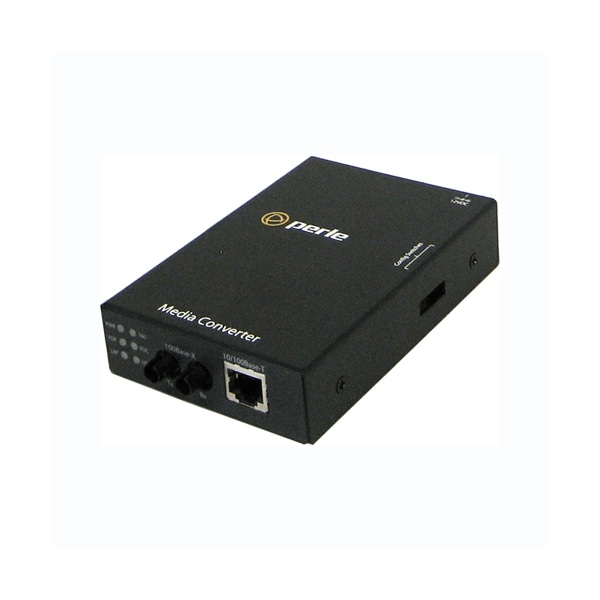

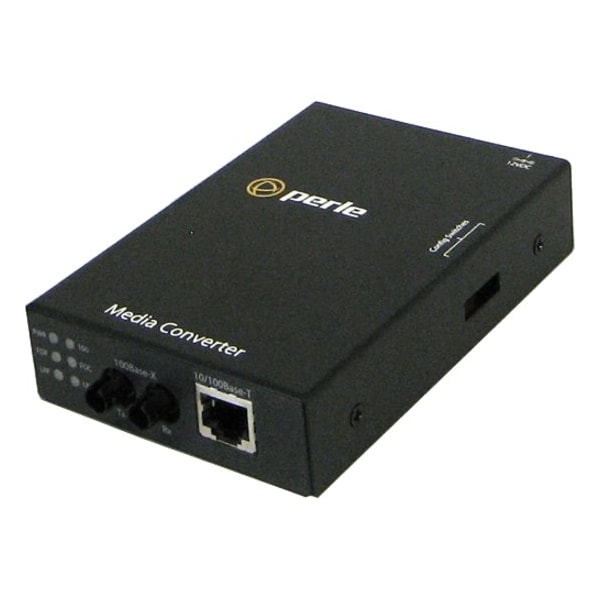

- S-110-M2ST2-XT Media Converter
- Product Type
- Transceiver/Media Converter
- Form Factor
- Desktop, Wall Mountable, Rail-mountable, Rack-mountable
- Environmentally Friendly
- Yes
- Power Connector
- 2-pin fixed terminal block
- Emissions
- FCC Part 15 Class B, EN55022 Class B
- Laser Safety
- EN 60825-1:2007
- Copper link on / Receive activity (LKC)
- This green LED is operational only when power is applied. The LED is on when the 100Base-TX link is on and flashes with a 50% duty cycle when data is received.
- Electrical Safety
- UL 60950-1
- Auto-Negotiation (802.3u)
- Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 100Base-TX interface. It is set to advertise full duplex; Disabled- The media converter sets the port according to the position of the speed and duplex switches.
- Operating Altitude
- Up to 3,048 meters (10,000 feet)
- Operating Humidity
- 5% to 90% non-condensing
- Copper Duplex (FDC)
- This green LED is operational only when power is applied. The LED is on when the 10/100Base-TX link is operatinal in full duplex mode. The LED is off when in half duplex.
- Remote Loopback
- The media converter can perform a loopback on the 100Base-X fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
- Duplex Copper
- Full (Default); Half
- Duplex Fiber
- Full (Default); Half
- Immunity
- EN55024
- Input Supply Voltage
- 6 - 30 vDC, unregulated ( 12 vDC Nominal )
- Filtering
- 1024 MAC Addresses
- Buffer
- 512 Kbits frame buffer memory
- Auto-MDIX (Internal Strap)
If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the 100Base-TX interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default)- Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled- If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.
- 10/100 Speed
- This green LED is operational only when power is applied. The LED is on when the speed of the copper Ethernet port is running at 100 MBPS. The LED is off when in 10 MBPS
- Fiber Duplex (FDF)
- This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is operatinal in full duplex mode. The LED is off when in half duplex.
- Link Pass Through
Enabled (Default)- When the state of the receiver is changed on the 100Base-TX interface it is reflected on the 100Base-FX fiber transmitter. When the state of the receiver on the 100Base-FX interface is changed it is reflected on the 100Base-TX transmitter; When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on; Disabled- The 100Base-TX and the 100Base-FX fiber interface operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the 100Base-TX interface.
- 100Base-TX
- Multimode dual ST Media Converters; RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable
- Storage Humidity
- 5% to 95% non-condensing
- Speed Copper
- 100 (Default); 10
- Power Consumption
- 2.1 watts
- Current
- 175 mA
- Power / TST
- This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
- Heat Output ( BTU/HR )
- 7.2
- Fiber link on / Receive activity (LKF)
- This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received.
- Operating temperature
- -40 C to 75 C (-40 F to 167 F)
- Dimentions
- 120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches
- Magnetic Isolation
- 1.5kv
- Storage temperature
- -40 C to 85 C (-40 F to 185 F)
