Number of ST Ports
|
1
|
|
Environmentally Friendly
|
Yes
|
|
Form Factor
|
External
|
|
Product Type
|
Transceiver/Media Converter
|
|
Number of Network (RJ-45) Ports
|
1
|
|
Weight (Approximate)
|
10.58 oz
|
|
Maximum Distance Supported
|
24.85 Mile
|
|
Network (RJ-45)
|
Yes
|
|
Total Number of Ports
|
2
|
|
Network Technology
|
10/100Base-TX, 100Base-EX
|
|
ST Port Type
|
Duplex
|
|
Product Name
|

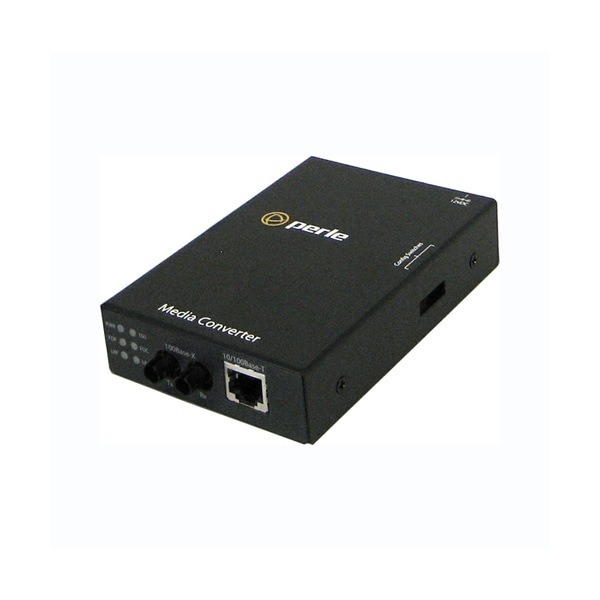

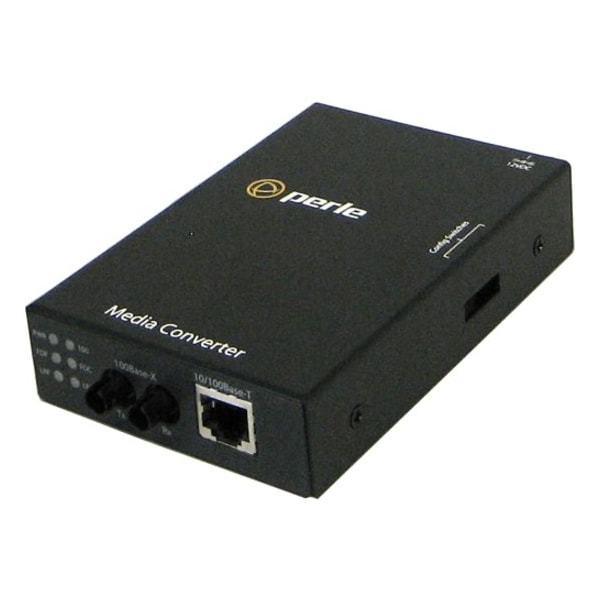

S-110-S2ST40 Fast Ethernet Media Converter
|
|
Operating Humidity
|
5% to 90% non-condensing
|
|
Fiber link on / Receive activity (LKF)
|
This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received.
|
|
Auto-Negotiation (802.3u)
|
Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 100Base-TX interface. It is set to advertise full duplex; Disabled- The media converter sets the port according to the position of the speed and duplex switches.
|
|
Dimentions
|
120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches
|
|
Fiber Duplex (FDF)
|
This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is operatinal in full duplex mode. The LED is off when in half duplex.
|
|
Duplex Copper
|
Full (Default); Half
|
|
100Base-TX
|
Single mode dual ST Media Converters; RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable
|
|
Input Supply Voltage
|
6 - 30 vDC, unregulated ( 12 vDC Nominal )
|
|
Laser Safety
|
EN 60825-1:2007
|
|
Filtering
|
1024 MAC Addresses
|
|
Electrical Safety
|
UL 60950-1
|
|
Storage temperature
|
minimum range of -25 C to 70 C (-13 F to 158 F)
|
|
Remote Loopback
|
The media converter can perform a loopback on the 100Base-X fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
|
|
Speed Copper
|
100 (Default); 10
|
|
Copper link on / Receive activity (LKC)
|
This green LED is operational only when power is applied. The LED is on when the 100Base-TX link is on and flashes with a 50% duty cycle when data is received.
|
|
Buffer
|
512 Kbits frame buffer memory
|
|
Storage Humidity
|
5% to 95% non-condensing
|
|
Auto-MDIX (Internal Strap)
|
If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the 100Base-TX interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default)- Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled- If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.
|
|
Power Consumption
|
2.1 watts
|
|
10/100 Speed
|
This green LED is operational only when power is applied. The LED is on when the speed of the copper Ethernet port is running at 100 MBPS. The LED is off when in 10 MBPS
|
|
Emissions
|
FCC Part 15 Class B*, EN55022 Class B*
|
|
Heat Output ( BTU/HR )
|
7.2
|
|
Universal AC/DC adapter
|
100-240v AC, regulated DC adapter included
|
|
Duplex Fiber
|
Full (Default); Half
|
|
Copper Duplex (FDC)
|
This green LED is operational only when power is applied. The LED is on when the 10/100Base-TX link is operatinal in full duplex mode. The LED is off when in half duplex.
|
|
Link Pass Through
|
Enabled (Default)- When the state of the receiver is changed on the 100Base-TX interface it is reflected on the 100Base-FX fiber transmitter. When the state of the receiver on the 100Base-FX interface is changed it is reflected on the 100Base-TX transmitter; When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on; Disabled- The 100Base-TX and the 100Base-FX fiber interface operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the 100Base-TX interface.
|
|
Power / TST
|
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
|
|
Immunity
|
EN55024
|
|
Current
|
175 mA
|
|
Operating Altitude
|
Up to 3,048 meters (10,000 feet)
|
|
Operating temperature
|
0 C to 50 C (32 F to 122 F)
|
|
Power Connector
|
5.5mm x 9.5mm x 2.1mm barrel socket
|
|
Magnetic Isolation
|
1.5kv
|
