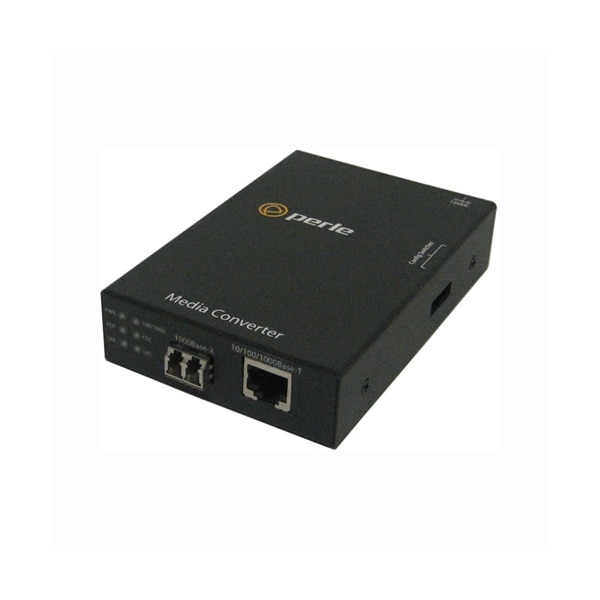

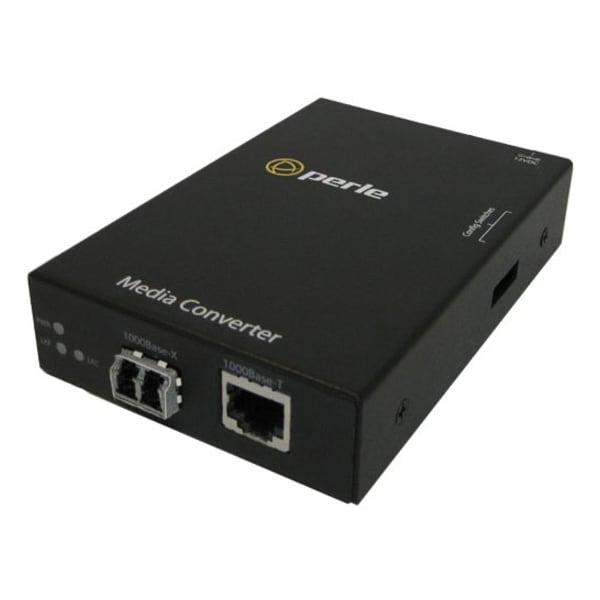

S-1110-S2Lc10 Media Converter

Mfr # 05050624
Zoro # G4392406

$1,090.99

Free Shipping & Returns

Key Features

Size

Maximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet

10/100/1000 Speed

This multi-color LED is operational only when power is applied. The LED is green when the speed of the copper ethernet port is running at 1000 Mbps. The LED is orange when the speed of the copper Ethernet port is running at 100 Mbps. The LED is off when in 10 Mbps.

10/100/1000Base-T

RJ45 connector; 2 pair CAT5, EIA/TIA 568A/B or better cable for 10/100; 4 pair CAT5 UTP cable for Gigabit; Single mode dual LC or multimode dual LC Media Converter; by using a mode conditioning patch cord

Remote Loopback

The media converter can perform a loopback on the 1000Base-X fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. The copper transmitter is taken off the interface.

Laser Safety

EN 60825-1:2007

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05050624

Zoro #

G4392406

UPC #

734660506243

Country of Origin

Canada

Dimensions

Size

Maximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet

Details

10/100/1000 Speed

10/100/1000Base-T

Remote Loopback

Laser Safety

EN 60825-1:2007

Current

175 mA

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.

Auto-MDIX (Internal Strap)

If Auto-Negotiation (802.3u) is enabled, the media converter determines the current cable pinout to use on the copper interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the copper interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default)- Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled- If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Buffer

1000 Kbits frame buffer memory

Power Consumption

2.1 watts

Storage Humidity

5% to 95% non-condensing

Copper Duplex (FDC)

This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is operatinal in full duplex mode. The LED is off when in half duplex.

Fiber Duplex (FDF)

This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-X link is operatinal in full duplex mode. The LED is off when in half duplex.

Operating Altitude

Up to 3,048 meters (10,000 feet)

Heat Output ( BTU/HR )

7.2

Auto-Negotiation (802.3u)

Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 10/100/1000Base-T interface. It is set to advertise full duplex, half duplex, pause and remote fault capabilities; Disabled- The media converter sets the port according to the position of the speed and duplex switches.

Dimentions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Filtering

1024 MAC Addresses

Operating Humidity

5% to 90% non-condensing

Immunity

EN55024

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Storage temperature

minimum range of -25 C to 70 C (-13 F to 158 F)

Duplex Fiber

Full (Default); Half

Duplex Copper

Full (Default); Half

Magnetic Isolation

1.5kv

Fiber Fault Alert

The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled; Enabled (Default - Up); When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature; Disabled (Down)

Speed Copper

100 (Default); 10

Emissions

FCC Part 15 Class A, EN55022 Class A

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Fiber link on / Receive activity (LKF)

This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received.

Operating temperature

0 C to 50 C (32 F to 122 F)

Electrical Safety

UL 60950-1

Copper link on / Receive activity (LKC)

This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is on and flashes with a 50% duty cycle when data is received.

Description

S-1110-S2LC10 - 10/100/1000Base-T Media and Rate Converter: 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-LX/LH 1310 nm single mode (LC) [10 km/6.2 miles] or multimode (LC) [550 m/1804 ft.] using a mode conditioning patch cord. - USA Power Cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
