S-1110-S2Lc10-Xt Media Convert

Mfr # 05090720
Zoro # G4406844

$1,116.99

Free Shipping & Returns

Key Features

Size

Maximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet

Operating temperature

-40 C to 75 C (-40 F to 167 F)

10/100/1000Base-T

RJ45 connector; 2 pair CAT5, EIA/TIA 568A/B or better cable for 10/100; 4 pair CAT5 UTP cable for Gigabit; Single dual LC or multimode dual SC Media Converter; by using the optinal mode conditioning adapter

Duplex Fiber

Full (Default); Half

Fiber Duplex (FDF)

This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-X link is operatinal in full duplex mode. The LED is off when in half duplex.

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05090720

Zoro #

G4406844

UPC #

734660907200

Country of Origin

Canada

Dimensions

Size

Maximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet

Dimensions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Details

Operating temperature

-40 C to 75 C (-40 F to 167 F)

10/100/1000Base-T

Duplex Fiber

Full (Default); Half

Fiber Duplex (FDF)

This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-X link is operatinal in full duplex mode. The LED is off when in half duplex.

Current

175 mA @ 12 vDC

10/100/1000 Speed

This multi-color LED is operational only when power is applied. The LED is green when the speed of the copper ethernet port is running at 1000 Mbps. The LED is orange when the speed of the copper Ethernet port is running at 100 Mbps. The LED is off when in 10 Mbps.

Operating Humidity

5% to 90% non-condensing

Buffer

1000 Kbits frame buffer memory

Fiber Fault Alert

The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled; Enabled (Default - Up); When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature; Disabled (Down)

Filtering

1024 MAC Addresses

Auto-MDIX (Internal Strap)

If Auto-Negotiation (802.3u) is enabled, the media converter determines the current cable pinout to use on the copper interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the copper interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default)- Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled- If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.

Power Consumption

2.1 watts

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Laser Safety

EN 60825-1:2007

Operating Altitude

Up to 3,048 meters (10,000 feet)

Emissions

FCC Part 15 Class A, EN55022 Class A

Remote Loopback

The media converter can perform a loopback on the 1000Base-X fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. The copper transmitter is taken off the interface.

Fiber link on / Receive activity (LKF)

This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received.

Storage temperature

-40 C to 85 C (-40 F to 185 F)

Magnetic Isolation

1.5kv

Copper link on / Receive activity (LKC)

This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is on and flashes with a 50% duty cycle when data is received.

Power Connector

2-pin pluggable terminal block

Electrical Safety

UL 60950-1

Speed Copper

100 (Default); 10

Storage Humidity

5% to 95% non-condensing

Auto-Negotiation (802.3u)

Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 10/100/1000Base-T interface. It is set to advertise full duplex, half duplex, pause and remote fault capabilities; Disabled- The media converter sets the port according to the position of the speed and duplex switches.

Copper Duplex (FDC)

This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is operatinal in full duplex mode. The LED is off when in half duplex.

Immunity

EN55024

Duplex Copper

Full (Default); Half

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.

Heat Output ( BTU/HR )

7.2 BTU

Description

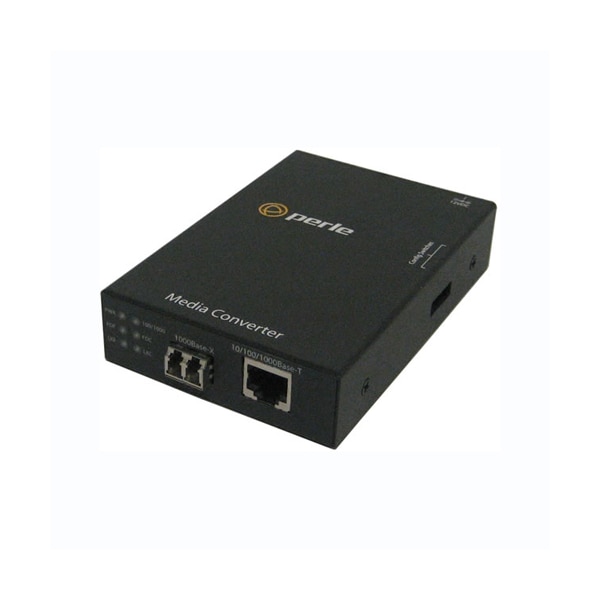

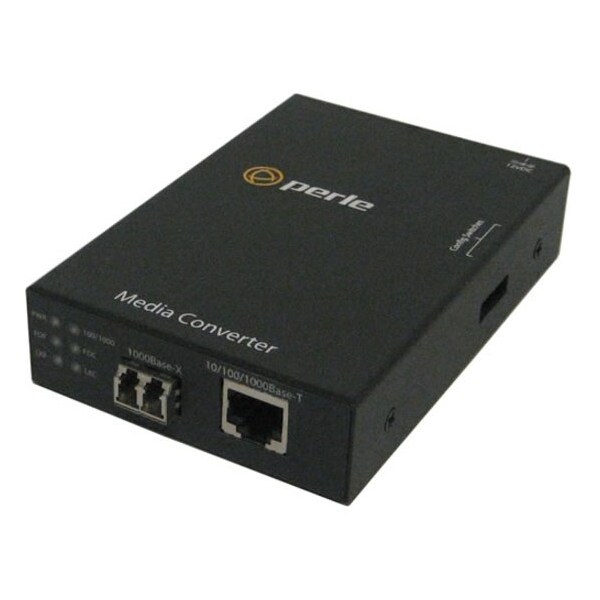

S-1110-S2LC10-XT - Industrial Temperature 10/100/1000Base-T Media and Rate Converter: 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-LX/LH 1310 nm single mode (LC) [10 km/6.2 miles] or multimode (SC) [550 m/1804 ft.] using a mode conditioning adapter. Extended Temperature, terminal block power connector for external power source.
