- MFR #
- 05060574
- Zoro #
- G4390960
- UPC #
- 734660605748
- Country of Origin
- Canada
- Package Contents
- Protocol Transparent Stand-Alone Media Converter with Dual SFP Slots, AC Adapter
- Number of SFP Slots
- 2
- Product Type
- Transceiver/Media Converter
- Input voltage
- 110 V AC, 220 V AC
- Expansion Slot Type
- SFP
- Certifications & Standards
Immunity: EN55024 Laser Safety: Dependent on SFPs used. SFPs that meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11 are recommended for use with this product. Emissions: FCC Part 15 Class A,EN55022 Class A,CISPR 22 Class A,EN61000-3-2 Electrical Safety: UL 60950-1,EN60950,CE
- Environmentally Friendly
- Yes
- Network Technology
- 1000Base-X
- Number of Total Expansion Slots
- 2
- Form Factor
- Rack-mountable, Rail-mountable, Wall Mountable, Desktop
- Weight (Approximate)
- 10.58 oz
- Ethernet Technology
- Gigabit Ethernet
- Product Name

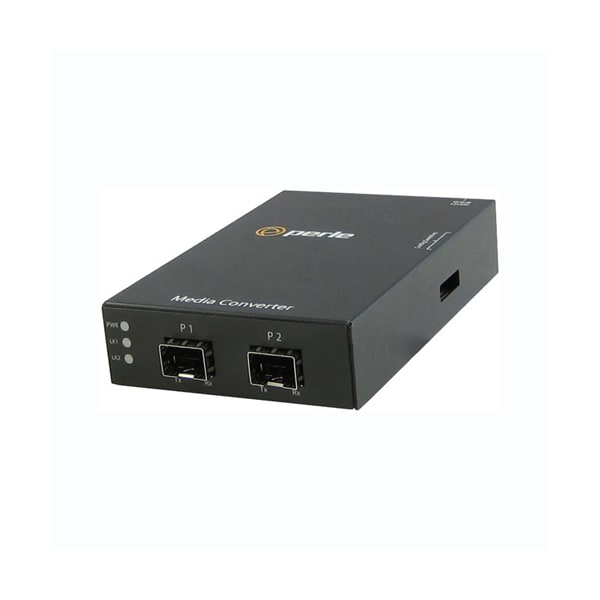

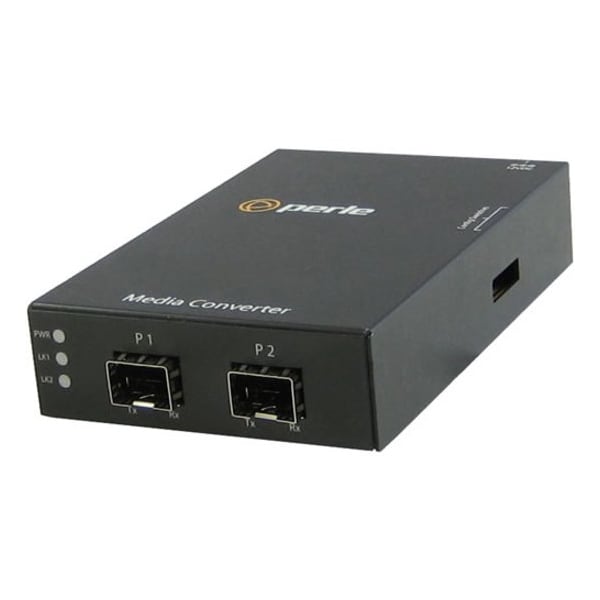

- Protocol Transparent Stand-Alone Media Converter with Dual SFP Slots
- Power Connector
- 5.5mm x 9.5mm x 2.1mm barrel socket.
- Operating temperature
- 0° C to 50° C (32° F to 122° F)
- Input Supply Voltage
- 6 - 30 vDC, unregulated ( 12 vDC Nominal )
- Emissions
- FCC Part 15 Class A, EN55022 Class A
- Universal AC/DC adapter
- 100-240v AC, regulated DC adapter included.
- Fiber Fault Alert
- If the media converter module detects a loss of fiber, it will immediately notify the fiber link partner that an error condition exists; Disabled ( Default ).The Media Converter will not monitor for fiber fault.
- Power Consumption
- 4 watts
- Immunity
- EN55024
- SFPs
- SFP line rates up to 4.25Gbps are supported. The SFPs occupying each slot in the media converter must be operating at the same speed; SFP power level 1 and 2 are supported; /td>
- Multi-speed SFP
- When enabled, identifies that the SFPs inserted are MSA complaint SFPs that have a multi-rate capability; When disable ( Default ), no action is performed in this context.
- Laser Safety
- Dependent on SFPs used. SFPs that meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11 are recommended for use with this product.
- LK1
- LED is ON when a signal is detected on LK1. LED is OFF when there is no signal.
- Current
- 325mA @ 12VDC
- Operating Humidity
- 5% to 90% non-condensing
- Rate Select
- This enables rate selection when using dual-rate capable SFPs. If the "Multi-Speed SFP" select switch is in the "Disabled" position, this switch is ignored; High Speed - UP ( default ); Low Speed - DOWN
- Storage Humidity
- 5% to 95% non-condensing
- Heat Output ( BTU/HR )
- 13.65
- Electrical Safety
- UL 60950-1
- Power
- This green LED is turned on when power is applied to the media converter. This LED is off when there is no power supplied; A Blinking LED will indicate that a hardware error has been detected.
- LK2
- LED is ON when a signal is detected on LK2. LED is OFF when there is no signal.
- Storage temperature
- minimum range of -25° C to 70° C (-13° F to 158° F).
- MTBF
- 931,619 w/o power adapter; 416,965 w/ power adapter
- Operating Altitude
- Up to 3,048 meters (10,000 feet)
