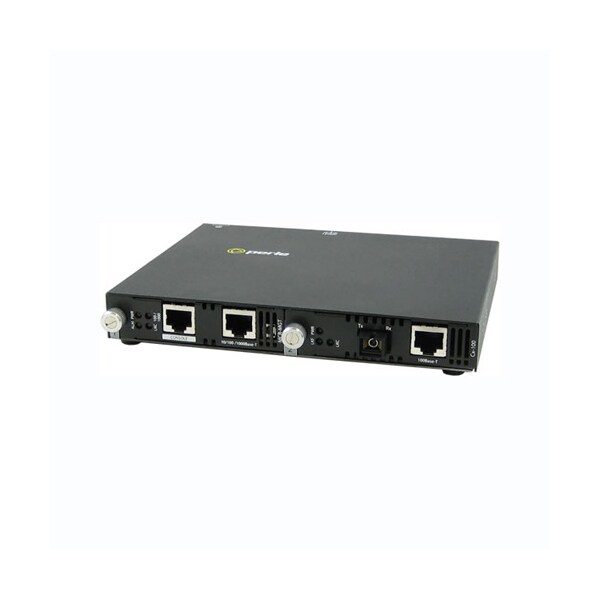

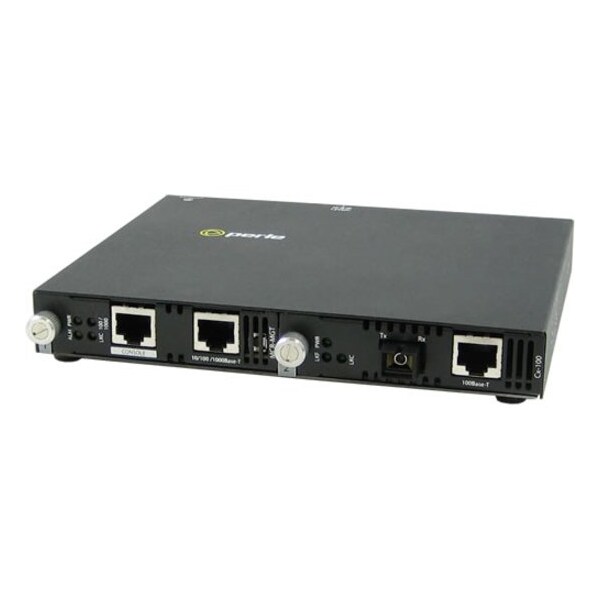

Smi-100-S1Sc20U Media Convertr
Mfr # 05070454
Zoro # G4408506
product price:Â
$
1,009.99
/ea
Free Shipping & Returns
Key Features
Height
0.9 in
Width
6.9 in
Depth
5.7 in
Fiber Mode Supported
Single-mode
Product Name
SMI-100-S1SC20U - Fast Ethernet Standalone IP Managed Media Converter
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 05070454
- Zoro #
- G4408506
- UPC #
- 734660704540
- Country of Origin
- Canada
- Fiber Mode Supported
- Single-mode
- Product Name
- SMI-100-S1SC20U - Fast Ethernet Standalone IP Managed Media Converter
- Form Factor
- Rail-mountable, Wall Mountable, Rack-mountable, External
- Environmentally Friendly
- Yes
- Package Contents
- SMI-100-S1SC20U - Fast Ethernet Standalone IP Managed Media Converter, Universal AC/DC Adapter
- Maximum Distance Supported
- 12.43 Mile
- Ethernet Technology
- Fast Ethernet
- Total Number of Ports
- 2
- Number of SC Ports
- 1
- Fiber Optic Cable Standard
- 9/125 µm
- Media Type Supported
- Twisted Pair, Optical Fiber
- Weight (Approximate)
- 1.59 lb
- Network Technology
- 100Base-TX, 100Base-FX
- Product Type
- Transceiver/Media Converter
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 1
- Network (RJ-45)
- Yes
- Power Connector
- 5.5mm x 9.5mm x 2.1mm barrel socket
- Operating Altitude
- Up to 3,048 meters (10,000 feet)
- Current
- 0.33amps at12vdc
- 100/1000
- Green - 1000 Mbps link; Yellow - 100 Mbps link; Off - 10 Mbps or no Link
- Fiber link on / Receive activity (LKF)
- This green LED is operational only when power is applied; The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received.
- Remote Loopback
- The media converter can perform a loopback on the 100Base-X fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
- Power
- Blinking green during startup cycle Steady green: module has power and is ready; Red : error
- Heat Output ( BTU/HR )
- 13.6
- Auto-MDIX (Strap)
- If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the 100Base-TX interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default)- Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled- If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media convertor's transmitter and the partner devices transmitter are connected to the others receiver. The Media Convertor's 100Base-TX port is configured as MDI with this switch setting.
- 100Base-TX
- RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable; Magnetic Isolation - 1.5kv
- Storage Humidity
- 5% to 95% non-condensing
- Laser Safety
- EN 60825-1:2007
- Copper link on / Receive activity (LKC)
- This green LED is operational only when power is applied; The LED is on when the 100Base-TX link is on and flashes with a 50% duty cycle when data is received.
- Bit Error Rate (BER)
- <10-12
- Dimentions
- 175 x 145 x 23 mm
- Electrical Safety
- UL 60950-1
- Configuration Mode (Strap)
- Auto (default) enable management module to overwrite hardware switch settings; Switch - Use onboard DIP switches
- Power Consumption
- 3.98watts
- Operating temperature
- 0 C to 50 C (32 F to 122 F)
- Input Supply Voltage
- ( 12 vDC Nominal )
- Operating Humidity
- 5% to 90% non-condensing
- Link Pass Through
- Enabled (Default)- When the state of the receiver is changed on the 100Base-TX interface it is reflected on the 100Base-FX fiber transmitter. When the state of the receiver on the 100Base-FX interface is changed it is reflected on the 100Base-TX transmitter; When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on; Disabled- The 100Base-TX and the 100Base-FX fiber interface operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the 100Base-TX interface.
- ALM
- Red alarm indicator activated when an alert event occurs
- Auto-Negotiation (802.3u)
- Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 100Base-TX interface. It is set to advertise full duplex; Disabled- The media converter sets the 100Base-TX port to full duplex.
- Fiber Optic Cable
- Single mode single SC Media Converters; Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)
- Emissions
- FCC Part 15 Class B*, EN55022 Class B*
- Storage temperature
- minimum range of -25 C to 70 C (-13 F to 158 F)
- Management ethernet port
- 10/100/1000Base-T - RJ45; Auto- MDI/MDIX
- Management console port
- RS232 Serial RJ45 - Cisco pinout for use with standard CAT5 "rolled cable" (crossover) 9600 to 115k bps 7/8 bits Odd,even, no parity 1/2 stop bits Hardware/software flow control DCD/DSR monitoring
- Universal AC/DC adapter
- 100-240v AC, regulated DC adapter included
- Power / TST
- This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
- Immunity
- EN55024
- Reset button
- Recessed pinhole button resets module
- Pause
- Pause should be enabled when all devices connected to the media converter support pause. Auto-Negotiation must be Enabled to use this feature; Enabled (Default)- The Media converter will advertise Pause capability during Auto-Negotiation on the 100Base-TX interface; Disabled- The Media converter will advertise that it does not have Pause capability during Auto-Negotiation on the 100Base-TX interface.
- LKC
- Green indicator indicating an active Ethernet link. Blinking indicates RX and TX of data
Description
SMI-100-S1SC20U - Managed Fast Ethernet Media Converter: 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-BX 1310nm TX / 1550nm RX single fiber single mode (SC) [20 km/12.4 miles] - USA Power Cord
Dimensions
- Height
- 0.9 in
- Width
- 6.9 in
- Depth
- 5.7 in
- Fiber Optic Wavelength
- 1550 nm
