- MFR #
- 05071354
- Zoro #
- G4394269
- UPC #
- 734660713542
- Country of Origin
- Canada
- Product Name

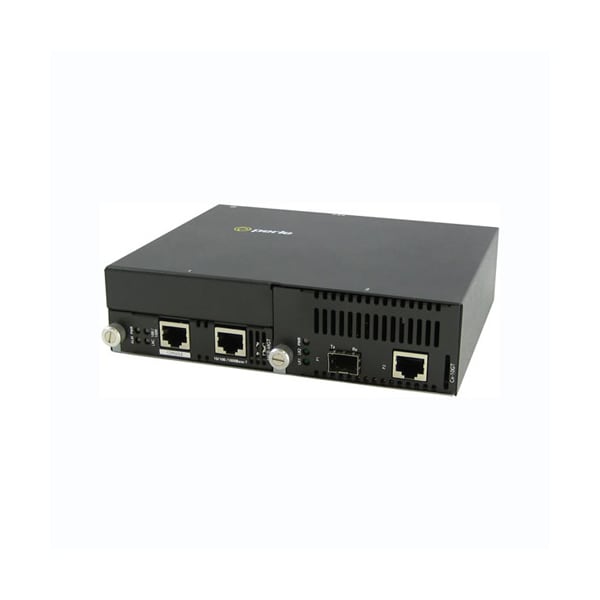

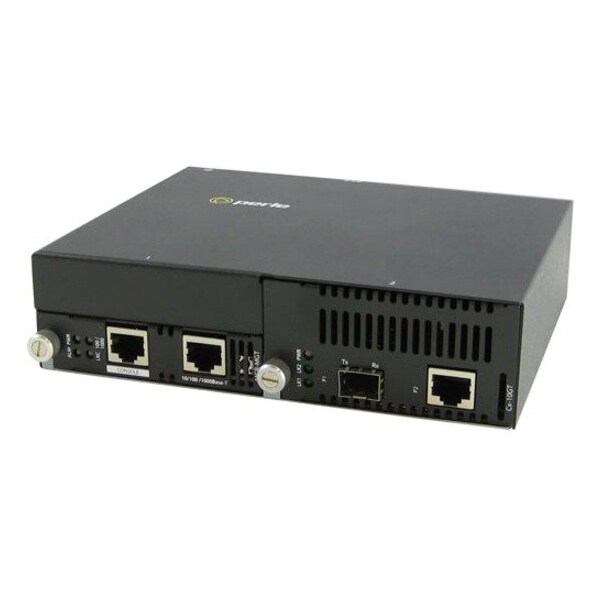

- SMI-10GRT-SFP - Managed 10 Gigabit Media and Rate Converter
- Total Number of Ports
- 1
- Number of Total Expansion Slots
- 1
- Product Type
- Transceiver/Media Converter
- Media Type Supported
- Twisted Pair, Optical Fiber
- Number of Network (RJ-45) Ports
- 1
- Network Technology
- 10GBase-T, 10GBase-CX1, 10GBase-X
- Expansion Slot Type
- SFP+
- Maximum Distance Supported
- 328.08 ft
- Ethernet Technology
- 10 Gigabit Ethernet
- Number of SFP+ Slots
- 1
- Network (RJ-45)
- Yes
- Power Source
- AC Adapter
- Package Contents
- SMI-10GRT-SFP - Managed 10 Gigabit Media and Rate Converter, AC Adapter
- Emissions
- FCC Part 15 Class A, EN55022 Class A
- Immunity
- EN55024
- Storage temperature
- minimum range of -25° C to 70° C (-13° F to 158° F)
- Power / TST
- On: Power indication and in normal operation; Blinking slowly: the unit is in loopback or test mode (either port); Red solid: the unit has a hardware error (upon power up); Red and blinking: the unit has a hardware error specified by combination of LK1 and LK2
- EEE Green Ethernet
- When enabled (default), the media converter will operate as an IEEE 802.3az Energy Efficient Ethernet (EEE) compliant device.
- Operating Altitude
- Up to 3,048 meters (10,000 feet)
- Electrical Safety
- UL 60950-1
- Chassis
- Metal with an IP20 ingress protection rating
- Test Mode
- Through the use of three dip switches the unit, and its peer, can be placed into a link test mode which will verify the integrity of the link through the use of its built-in link test generator. The unit can also be placed into a simple line loopback.
- Loopback
- Capable of performing a loopback on the 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link.
- Universal AC/DC adapter
- 100-240v AC, regulated AC/12v DC adapter included
- Input Supply Voltage
- 12 vDC Nominal
- Power Connector
- 5.5mm x 9.5mm x 2.1mm barrel socket
- LK2
- On: 10GBase-T link present; Blinking quickly: Link present and receiving data; Blinking slowly: Link disabled because Link 1 went down; Off: 10GBase-T link is not active
- Operating temperature
- 0° C to 50° C (32° F to 122° F)
- Storage Humidity
- 5% to 95% non-condensing
- Operating Humidity
- 5% to 90% non-condensing
- LK1 (SFP/XFP)
- On: Link present; Blinking quickly: Fiber link present and receiving data.(including test data); Blinking slowly: Fiber link disabled because the other fiber link went down; Blinking 1 sec on 3 sec off - module shut down due to high temperature; Off: No fiber link present or no module inserted
- Fiber Fault Alert
- Enabled (Default - Up); With Fiber Fault Alert the state of the 10 Gigabit ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G ethernet interface of the media converter; Disabled (Down)
