- Product Name

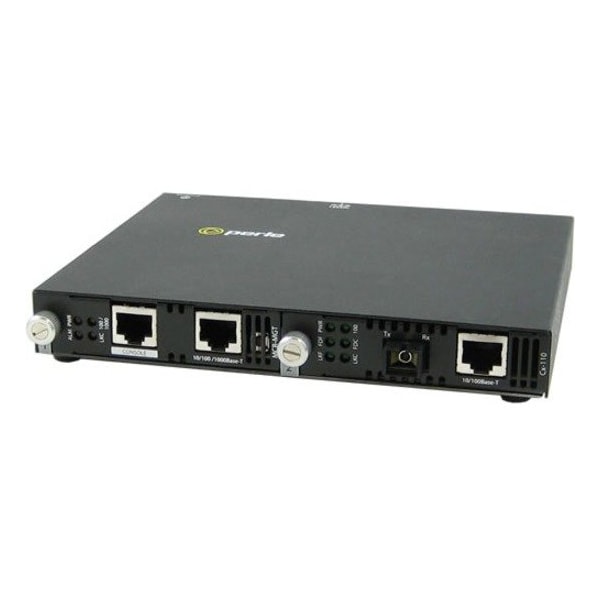

- SMI-110-M1SC2D - 10/100 Fast Ethernet IP Managed Media and Rate Converter
- Weight (Approximate)
- 1.59 lb
- Ethernet Technology
- Fast Ethernet
- Package Contents
- SMI-110-M1SC2D - 10/100 Fast Ethernet IP Managed Media and Rate Converter, Universal AC/DC Adapter
- Form Factor
- Desktop, Rail-mountable, Rack-mountable, Wall Mountable
- Maximum Distance Supported
- 1.24 Mile
- Network Technology
- 10/100Base-TX, 100Base-BX
- Certifications & Standards
Immunity: EN55024 Emissions: FCC Part 15 Class A, EN55022 Class A,CISPR 22 Class A,EN61000-3-2 Electrical Safety: UL 60950-1,EN60950,CE Laser Safety: EN 60825-1 2007,Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11
- Product Type
- Transceiver/Media Converter
- Management Port
- Yes
- Fiber Mode Supported
- Multi-mode
- Media Type Supported
- Optical Fiber, Twisted Pair
- Input voltage
- 12 V DC
- Number of SC Ports
- 1
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Environmentally Friendly
- Yes
- Number of Network (RJ-45) Ports
- 1
- Storage Humidity
- 5% to 95% non-condensing
- Input Supply Voltage
- ( 12 vDC Nominal )
- Filtering
- 1024 MAC Addresses
- Power Connector
- 5.5mm x 9.5mm x 2.1mm barrel socket
- Current
- 0.34amps at 12vdc
- Operating temperature
- 0 C to 50 C (32 F to 122 F)
- Duplex Fiber
- Full (Default); Half
- Speed Copper
- 100 (Default); 10
- Dimentions
- 175 x 145 x 23 mm
- Immunity
- EN55024
- Universal AC/DC adapter
- 100-240v AC, regulated DC adapter included
- Fiber Duplex (FDF)
- This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is operatinal in full duplex mode. The LED is off when in half duplex.
- Laser Safety
- EN 60825-1:2007
- Management ethernet port
- 10/100/1000Base-T - RJ45; Auto- MDI/MDIX
- Heat Output ( BTU/HR )
- 14
- 100/1000
- Green - 1000 Mbps link; Yellow - 100 Mbps link; Off - 10 Mbps or no Link
- Fiber Optic Cable
- Multimode single SC Media Converters; Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)
- ALM
- Red alarm indicator activated when an alert event occurs
- 10/100 Speed
- This green LED is operational only when power is applied. The LED is on when the speed of the copper Ethernet port is running at 100 MBPS. The LED is off when in 10 MBPS
- Storage temperature
- minimum range of -25 C to 70 C (-13 F to 158 F)
- Auto-Negotiation (802.3u)
- Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 100Base-TX interface. It is set to advertise full duplex; Disabled- The media converter sets the port according to the position of the speed and duplex switches.
- Emissions
- FCC Part 15 Class B**, EN55022 Class B**
- LKC
- Green indicator indicating an active Ethernet link. Blinking indicates RX and TX of data
- 100Base-TX
- RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable; Magnetic Isolation - 1.5kv
- Remote Loopback
- The media converter can perform a loopback on the 100Base-X fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
- Operating Humidity
- 5% to 90% non-condensing
- Copper link on / Receive activity (LKC)
- This green LED is operational only when power is applied. The LED is on when the 100Base-TX link is on and flashes with a 50% duty cycle when data is received.
- Power / TST
- This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
- Management console port
- RS232 Serial RJ45 - Cisco pinout for use with standard CAT5 "rolled cable" (crossover) 9600 to 115k bps 7/8 bits Odd,even, no parity 1/2 stop bits Hardware/software flow control DCD/DSR monitoring
- Fiber link on / Receive activity (LKF)
- This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received.
- Copper Duplex (FDC)
- This green LED is operational only when power is applied. The LED is on when the 10/100Base-TX link is operatinal in full duplex mode. The LED is off when in half duplex.
- Power Consumption
- 4.1watts
- Link Pass Through
Enabled (Default)- When the state of the receiver is changed on the 100Base-TX interface it is reflected on the 100Base-FX fiber transmitter. When the state of the receiver on the 100Base-FX interface is changed it is reflected on the 100Base-TX transmitter; When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on; Disabled- The 100Base-TX and the 100Base-FX fiber interface operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the 100Base-TX interface.
- Buffer
- 512 Kbits frame buffer memory
- Operating Altitude
- Up to 3,048 meters (10,000 feet)
- Electrical Safety
- UL 60950-1
- Auto-MDIX (Strap)
If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the 100Base-TX interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default)- Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled- If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.
- Power
- Blinking green during startup cycle; Steady green: module has power and is ready; Red : error
- Duplex Copper
- Full (Default); Half
- Reset button
- Recessed pinhole button resets module
