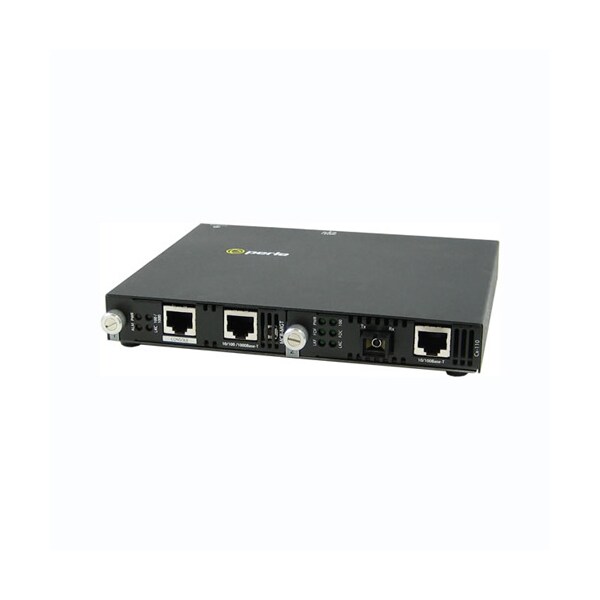

Smi-110-S1Sc40D Media Convertr
Mfr # 05071084
Zoro # G4396387
product price:Â
$
2,047.99
/ea
Free Shipping & Returns
Key Features
Size
Maximum frame size of 2048 bytes
Depth
5.7 in
Height
0.9 in
Width
6.9 in
Number of SC Ports
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 05071084
- Zoro #
- G4396387
- UPC #
- 734660710848
- Country of Origin
- Canada
- Number of SC Ports
- 1
- Form Factor
- Wall Mountable, Rail-mountable, Rack-mountable
- Fiber Optic Cable Standard
- 9/125 µm
- Package Contents
- SMI-110-S1SC40D Fast Ethernet Media Converter, Universal AC/DC Adapter
- Maximum Distance Supported
- 24.85 Mile
- Weight (Approximate)
- 1.59 lb
- Product Type
- Transceiver/Media Converter
- Network (RJ-45)
- Yes
- Network Technology
- 100Base-TX, 100Base-BX, 10/100/1000Base-T
- Management Port
- Yes
- Product Name
- SMI-110-S1SC40D Fast Ethernet Media Converter
- Number of Network (RJ-45) Ports
- 2
- Environmentally Friendly
- Yes
- Total Number of Ports
- 2
- Electrical Safety
- UL 60950-1
- Auto-MDIX (Strap)
- If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the 100Base-TX interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default)- Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled- If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.
- Link Pass Through
- Enabled (Default)- When the state of the receiver is changed on the 100Base-TX interface it is reflected on the 100Base-FX fiber transmitter. When the state of the receiver on the 100Base-FX interface is changed it is reflected on the 100Base-TX transmitter; When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on; Disabled- The 100Base-TX and the 100Base-FX fiber interface operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the 100Base-TX interface.
- Auto-Negotiation (802.3u)
- Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 100Base-TX interface. It is set to advertise full duplex; Disabled- The media converter sets the port according to the position of the speed and duplex switches.
- Filtering
- 1024 MAC Addresses
- Storage Humidity
- 5% to 95% non-condensing
- Reset button
- Recessed pinhole button resets module
- 100/1000
- Green - 1000 Mbps link; Yellow - 100 Mbps link; Off - 10 Mbps or no Link
- LKC
- Green indicator indicating an active Ethernet link. Blinking indicates RX and TX of data
- Emissions
- FCC Part 15 Class B**, EN55022 Class B**
- Buffer
- 512 Kbits frame buffer memory
- Power Consumption
- 4.1watts
- Management console port
- RS232 Serial RJ45 - Cisco pinout for use with standard CAT5 "rolled cable" (crossover) 9600 to 115k bps 7/8 bits Odd,even, no parity 1/2 stop bits Hardware/software flow control DCD/DSR monitoring
- Laser Safety
- EN 60825-1:2007
- Dimentions
- 175 x 145 x 23 mm
- Operating Humidity
- 5% to 90% non-condensing
- Power Connector
- 5.5mm x 9.5mm x 2.1mm barrel socket
- Management ethernet port
- 10/100/1000Base-T - RJ45; Auto- MDI/MDIX
- Duplex Copper
- Full (Default); Half
- Immunity
- EN55024
- Remote Loopback
- The media converter can perform a loopback on the 100Base-X fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
- Copper Duplex (FDC)
- This green LED is operational only when power is applied. The LED is on when the 10/100Base-TX link is operatinal in full duplex mode. The LED is off when in half duplex.
- Speed Copper
- 100 (Default); 10
- Power
- Blinking green during startup cycle; Steady green: module has power and is ready; Red : error
- Storage temperature
- minimum range of -25 C to 70 C (-13 F to 158 F)
- Copper link on / Receive activity (LKC)
- This green LED is operational only when power is applied. The LED is on when the 100Base-TX link is on and flashes with a 50% duty cycle when data is received.
- Fiber Optic Cable
- Single mode single SC Media Converters; Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)
- Heat Output ( BTU/HR )
- 14
- ALM
- Red alarm indicator activated when an alert event occurs
- Universal AC/DC adapter
- 100-240v AC, regulated DC adapter included
- Current
- 0.34amps at 12vdc
- Duplex Fiber
- Full (Default); Half
- 10/100 Speed
- This green LED is operational only when power is applied. The LED is on when the speed of the copper Ethernet port is running at 100 MBPS. The LED is off when in 10 MBPS
- Input Supply Voltage
- ( 12 vDC Nominal )
- Operating Altitude
- Up to 3,048 meters (10,000 feet)
- Operating temperature
- 0 C to 50 C (32 F to 122 F)
- 100Base-TX
- RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable; Magnetic Isolation - 1.5kv
- Fiber Duplex (FDF)
- This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is operatinal in full duplex mode. The LED is off when in half duplex.
- Fiber link on / Receive activity (LKF)
- This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received.
- Power / TST
- This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
Description
SMI-110-S1SC40D - Managed 10/100Base-TX Media and Rate Converter: 10/100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-BX 1550nm TX / 1310nm RX single fiber single mode (SC) [40 km/24.9 miles] - USA Power Cord
Dimensions
- Size
- Maximum frame size of 2048 bytes
- Depth
- 5.7 in
- Height
- 0.9 in
- Width
- 6.9 in
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
