- Sr-100-St20-Xt Media Converter
Perle Systems

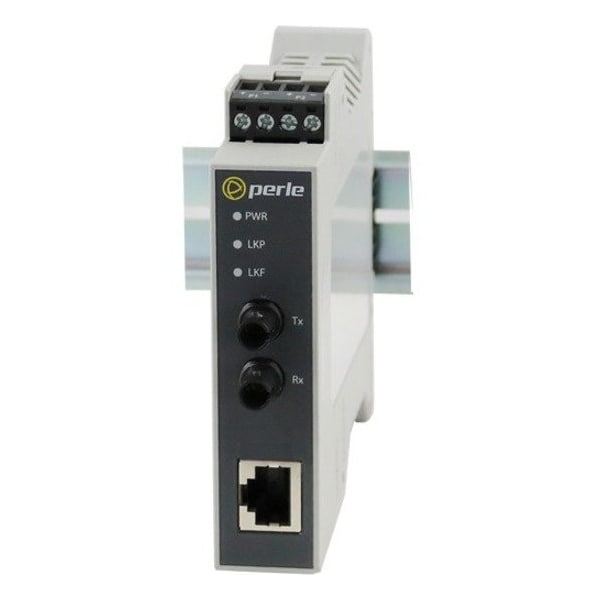

Sr-100-St20-Xt Media Converter
Mfr # 05091230
Zoro # G4407316
Free Shipping & Returns
$777.99
Item successfully saved to ''
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Width 4.5 in
- Height 0.9 in
- Size Maximum frame size of 2048 bytes
- Depth 3.9 in
- Network (RJ-45) Yes
Customers Also Purchased
- Brand Perle Systems
-
MFR #
05091230
-
Zoro #
G4407316
- UPC # 734660912303
- Country of Origin Taiwan, Province of China
- Category Media Converters & Data Adapter Kits
Dimensions
Width | 4.5 in |
Height | 0.9 in |
Size | Maximum frame size of 2048 bytes |
Depth | 3.9 in |
Fiber Optic Wavelength | 1310 nm |
Dimensions | 114 x 100 x 22.5mm, 4.5 x 3.9 x 0.88 inches |
Details
Network (RJ-45) | Yes |
Ethernet Technology | Fast Ethernet |
Power Source | AC Adapter |
Number of ST Ports | 2 |
Maximum Distance Supported | 12.43 Mile |
Weight (Approximate) | 4.23 oz |
Fiber Mode Supported | Single-mode |
Fiber Optic Cable Standard | 9/125 µm |
ST Port Type | Duplex |
Product Name | SR-100-ST20-XT Transceiver/Media Converter |
Product Type | Transceiver/Media Converter |
Number of Network (RJ-45) Ports | 1 |
Media Type Supported | Optical Fiber, Twisted Pair |
Environmentally Friendly | Yes |
Total Number of Ports | 3 |
Network Technology | 100Base-LX, 100Base-TX |
Form Factor | Rail-mountable |
Product Series | SR-100-XT |
Smart Link Pass-Through | Smart Link Pass-Through (Default - Up): In this mode, the link state on one connection is directly reflected through the media converter to the other connection. If link is lost on one of the connections, then the other link will be brought down by the media converter. If the installation has a media converter on both ends of the fiber link and both are setup for Link Pass-Through, then a loss of copper link on the far end device will propagate through both media converters and will result in a loss of copper link at the near end device. This would, therefore, resemble a direct copper connection; Standard Mode (Down): In this mode, the links on the fiber and copper sides can be brought up and down independently of each other. A loss of link on either the fiber ports or copper ports can take place without affecting the other connection |
Buffer | 512 Kbits frame buffer memory |
Operating Humidity | 5% to 90% non-condensing |
Input Supply Voltage | Triple voltage 12 / 24 / 48 VDC (9.6 - 60 VDC) input supporting: a) 2 x Terminal Block power input and; b) 1 x T-Bus power input |
Pause | Auto (Deafult-Up): When Auto Negotiation has been set to Auto, the media converter will use this setting for its Ethernet parameter negotiation on the copper connection; Half: The media converter will not negotiate support for the Pause feature. |
Heat Output ( BTU/HR ) | 7.37 |
Immunity | EN55024; EN 61000-4-2 (ESD); EN 61000-4-3 (RS); EN 61000-4-4 (EFT); EN 61000-4-5 (Surge); EN 61000-4-6 (CS); EN 61000-4-8 (PFMF); EN 61000-4-11; IEC/EN 61000-6-2 (General Immunity for Industrial Environments) |
Fiber link on / Receive activity (LKF) | On: Fiber link present. Blinking slowly: Fiber link disabled because of copper link loss. Blinking quickly: Fiber link present and receiving data. Off: No fiber link present |
Current | 0.09 A (@ 24VDC) |
Operating Altitude | Up to 3,048 meters (10,000 feet) |
Storage Humidity | 5% to 95% non-condensing |
Copper link on / Receive activity (LKC) | On: Copper link is present. Blinking quickly: Copper link present and receiving data. Blinking slowly: Copper link disabled because of fiber link loss. Off: No copper link present |
Fixed Fiber | Dual multimode or single mode ( Duplex ) fiber - SC, ST; Single strand fiber ( Simplex ) - SC |
Electrical Safety | UL 61010-1 and UL 61010-2-201 (including CB); UL/ULC/EN 62368-1 (including CB); CAN/CSA C22.2 No. 62368-1-14 |
MTBF (Hours) | 694,621 (Calculation model based on MIL-HDBK-217-FN2 @ 30 °C) |
Filtering | 1024 MAC Addresses |
100Base-TX | RJ45 connector, 2 pair CAT 5 (UTP or STP) or better cable |
Loopback | Disabled (Default-Up): The loopback feature is disabled. This is the normal position for regular operation. The switch must be set to this position for data to pass through the media converter; Enabled: This is a test mode. All data received on the receive (RX) fiber connection is looped back to the transmit (TX) fiber connection. The state of the copper is not relevant and no data or link status is passed through to the copper side. |
Emissions | FCC 47 Part 15 Class A, EN55032 (CISPR32) Class A; ICES-003; EN61000-6-4 (Emissions for industrial environments); CISPR 32:2015/EN 55032:2015 (Class A); CISPR 24:2010/EN 55024:2010; EN61000-3-2 |
Bit Error Rate (BER) | <10-12 |
Power / TST | This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink fast/slow when in Loopback test mode or hardware error. |
Fiber Optic Cable | Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITu-T 625) |
Din Rail Kit | Native |
Storage temperature | -40 C to 85 C (-40 F to 185 F) |
Operating temperature | -40 C to 75 C (-40 F to 167 F) |
Chassis | Molded plastic DIN Rail case with an IP20 ingress protection rating |
Auto-Negotiation | Auto (Default - Up): In this mode of operation the media converter will negotiate Ethernet parameters on the copper connection. This will ensure the most optimal connection parameters will be in effect. If the copper link partner does not support Auto negotiation, the media converter will default to 100 Mbps and Half Duplex mode; Off: Auto Negotiation should only be turned off, if the copper link partner does not support Auto Negotiation. When the Auto Negotiation switch is set to the OFF position, the media converter will operate at 100 Mbps and Full Duplex mode. |
Laser Safety | EN 60825-1:2007 |
Power Connector | Dual input Terminal Block and/or T-Bus |
Magnetic Isolation | 1.5kv |
Power Consumption | 2.6 watts (@ 24VDC) |
Description
SR-100-ST20-XT - Fast Ethernet Industrial Media Converter: 100Base-TX (RJ-45) [100 m/328 ft] to 100Base-LX 1310nm single mode (ST) [20 km/12.4 miles], -40F to +167F (-40C to +75C) extended operating temperature support. DIN Rail case, terminal block (Combicon) power connector for external power source
