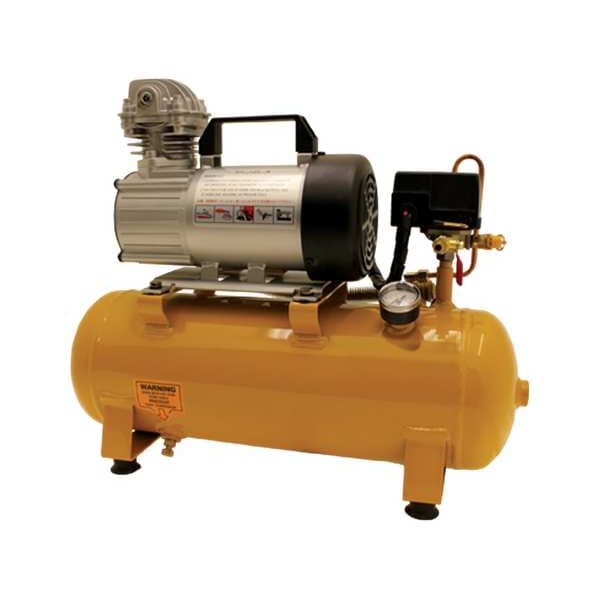

Air Compressor, 0.75 HP, 12VDCV, 120 psi

  • Mfr # AC12V3

  • Zoro # G4154071


product price: $695.99
/ea
Free Shipping & Returns

Key Features

Tank Size
3 gal.
Voltage
12V
Max. Pressure
120 psi
HP
0.75
Tank Type
Horizontal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AC12V3
Zoro #
G4154071
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Tank Size
3 gal.
Overall Length
21.12 in
Overall Height
18 in
Overall Width
8.5 in
Tank Size - Air Compressor
3.0 gal
Air Tank Size
3 gal
Outlet Size
1/4 in

Details

Voltage
12V
Max. Pressure
120 psi
HP
0.75
Tank Type
Horizontal
Free Air CFM @ Max. Pressure
1.7@ 90 psi
Compressor Type
Portable Air Compressor
Weight
38 lb
Standards
UL
HP - Air Compressor
0.75 hp
Weight - Air Compressor
38 lb
Item
Portable Air Compressor
Tank Style - Air Compressor
Hot Dog
Lubrication Type - Air compressor
Oil Free
Free Air CFM @ 90 PSI - Air Compressor
1.7
(F)NPT Outlet
1/4 in
Motor Type
Universal
Motor RPM
1,750 RPM
Lubrication Type
Oil Free
Input Voltage - Air Compressor
12V DC
Free Air CFM @ 90 PSI
1.7
Max. Pressure - Air Compressor
120 psi
Cylinder Material
Steel
Item - Air Compressor
Portable Air Compressor
Maximum Speed
1,750 RPM
Free Air Flow Rate
1.7 cfm
Output Power
0.75 hp
Sound Level
60 dBA
Electrical Connection
Wire Leads
Outlet Type
NPT
Duty Cycle
Intermittent
Current Rating
45 A
Pump Type
Piston
Input Voltage
12V DC
Outlet Gender
Female
Maximum Operating Pressure
120 psi
Air Tank Style
Hot Dog

Description

Portable Air Compressor, Lubrication Type Oil Free, Air Tank Style Hot Dog, Output Power 0.75 hp, Free Air Flow Rate 1.7 cfm, Maximum Operating Pressure 120 psi, Air Tank Size 3 gal, Input Voltage 12V DC, Current Rating 45 A, Sound Level 60 dBA, Weight 38 lb, Pump Type Piston, Motor Type Universal
