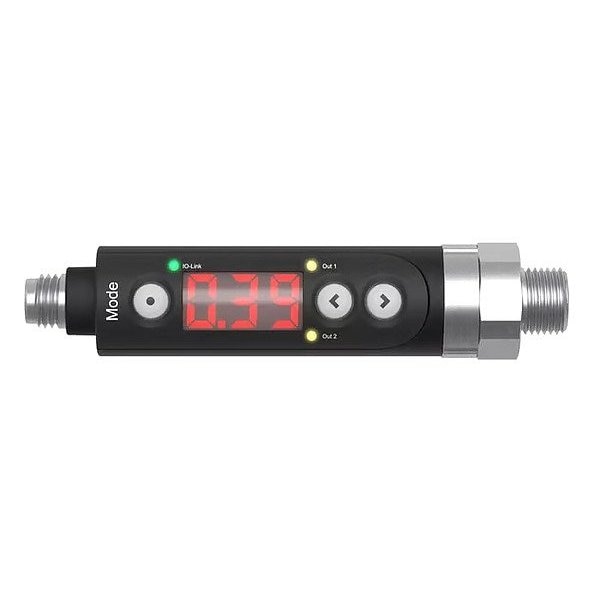

Digital Vacuum Switch, 10 to 30V DC
Mfr # PICO-02
Zoro # G716153059
product price:Â $338.99
/ea
Free Shipping & Returns
Key Features
Port Size
1/8 in
Standards
IP65, PFAS Regulations, REACH, RoHS
Voltage
10 to 30V DC
Includes
IO-Link Connectivity, Status LEDs
Overall Height
78.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PICO-02
- Zoro #
- G716153059
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Port Size
- 1/8 in
- Overall Height
- 78.5 mm
- Overall Width
- 16 mm
- Vacuum Cup Port Size
- 1/8 in
Details
- Item
- Digital Vacuum Switch
- Standards
- IP65, PFAS Regulations, REACH, RoHS
- Voltage
- 10 to 30V DC
- Includes
- IO-Link Connectivity, Status LEDs
- Weight
- 26 g
- Signal Pressure - Minimum
- -100 kPa
- Vacuum Cup Port Type
- G
- Signal Pressure - Maximum
- 100 kPa
- Body Material
- Brass, Polycarbonate
- Switch Output Type
- PNP NO/NC
- Maximum Operating Temperature
- 60 Degrees C
- Maximum Vacuum Pressure
- 0.3 MPa
- Minimum Operating Temperature
- -10 Degrees C
- Vacuum Cup Port Gender
- Male
- Port Type
- G
- Electrical Connection Type
- 4-Pole M8 Male
- Includes Display
- Display Included
Description
Digital Vacuum Switch, Body Material Brass, Polycarbonate, Electrical Connection Type 4-Pole M8 Male, Includes IO-Link Connectivity, Status LEDs, Includes Display Display Included, Maximum Operating Temperature 60 Degrees C, Maximum Vacuum Pressure 0.3 MPa, Minimum Operating Temperature -10 Degrees C, Overall Depth Not Applicable, Overall Height 78.5 mm, Overall Width 16 mm, Port Size 1/8 in, Port Type G, Signal Pressure - Maximum 100 kPa, Signal Pressure - Minimum -100 kPa
