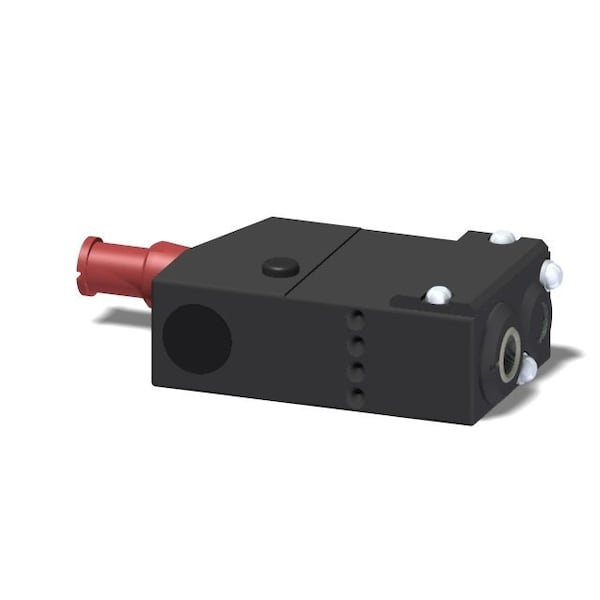

Vacuum Generator, 44 mm Overall H
Mfr # VGS3040.00.AM.00.AA.01.AA
Zoro # G310064713
product price:Â
$
362.99
/ea
Free Shipping & Returns
Key Features
Valve Type
Blow-Off Release
Overall Height
44 mm
Maximum Supply Pressure
0.7 MPa
Overall Depth
88.6 mm
Control Valve
Normally Open
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VGS3040.00.AM.00.AA.01.AA
- Zoro #
- G310064713
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Overall Height
- 44 mm
- Overall Depth
- 88.6 mm
- Pressure Port Size
- 1/8 in
- Vacuum Port Size
- 3/8 in
Details
- Item
- Vacuum Generator
- Valve Type
- Blow-Off Release
- Maximum Supply Pressure
- 0.7 MPa
- Control Valve
- Normally Open
- Minimum Operating Temperature
- 0 Degrees C
- Minimum Supply Pressure
- 0.3 MPa
- Number of Stages
- 3
- Pressure Port Gender
- Female
- Pressure Port Type
- NPSF
- Cartridge Type
- COAX MINI Xi10-3 Non-Return Valve
- Vacuum Port Type
- G
- Standards
- RoHS Compliant
- Series
- VGS 3040
- Vacuum Port Gender
- Female
- Maximum Operating Temperature
- 50 Degrees C
Description
Item Vacuum Generator, Cartridge Type COAX MINI Xi10-3 Non-Return Valve, Control Valve Normally Open, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.7 MPa, Minimum Operating Temperature 0 Degrees C, Minimum Supply Pressure 0.3 MPa, Number of Stages 3, Overall Depth 88.6 mm, Overall Height 44 mm, Pressure Port Gender Female, Pressure Port Size 1/8 in, Pressure Port Type NPSF, Series VGS 3040, Standards RoHS Compliant, Vacuum Port Gender Female, Vacuum Port Size 3/8 in
