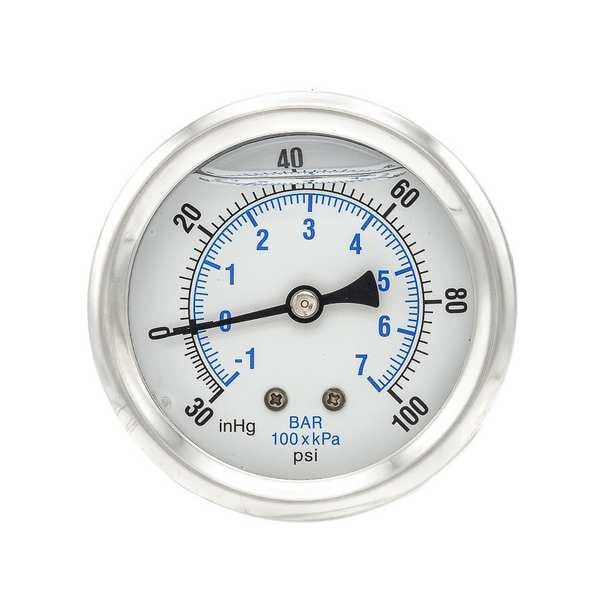

Pic Gauges Industrial Compound Gauge, 30 to 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location PRO-202L-254CE - main

Industrial Compound Gauge, 30 to 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PRO-202L-254CE

  • Zoro # G5676310

product price:  $15.69
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-202L-254CE
Zoro #
G5676310
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
2.09"
Case Diameter
2.65 in
Case Depth
1.21 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
202L
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 100
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
General Purpose
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
5/2
Gauge Filled With
Glycerin
Smallest Graduation
2 psi, 5 in Hg
Includes
Vent Plug
Case Color
Metallic
Socket Material
Copper Alloy
Case Material
Stainless Steel
Connection Type
MNPT
Wetted Materials
Copper
Standards
ASME
Includes Calibration Certificate
No
Accuracy Grade
ASME B40.100 Grade A
Bezel Material
Stainless Steel
Process Connection Gender
Male
Pointer Color
Black
Freeze Resistant Movement
No
Pointer Material
Aluminum
Vibration Resistance
Liquid-Filled
Non-Sparking
No
Dry Dampening Feature
None
Field Fillable
No
Bezel Mounting Type
Fixed
Includes Vent Plug
Yes
Scale Type
Dual
Secondary Pressure Range
0 to 7
Removable Bezel
No
Gauge Case Liquid
Glycerin
Cleaned for Oxygen Service
No
Secondary Scale Units
bar
Pressure Range Type
Compound
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Pressure Gauge Type
Industrial Pressure Gauge
Accuracy Scale
Mid-Scale
Dial Color
White
Primary Scale Minor Graduations
2, 5
Includes Mounting Hardware
No
Sensor Material
Copper Alloy
Maximum Pressure
100 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Vacuum Measurement - Maximum
100 psi
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Case Liquid
Glycerin
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Compatible with Series
202L
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Maximum
7 bar
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi
NEMA Enclosure Rating
No Enclosure

Description

Industrial Compound Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
