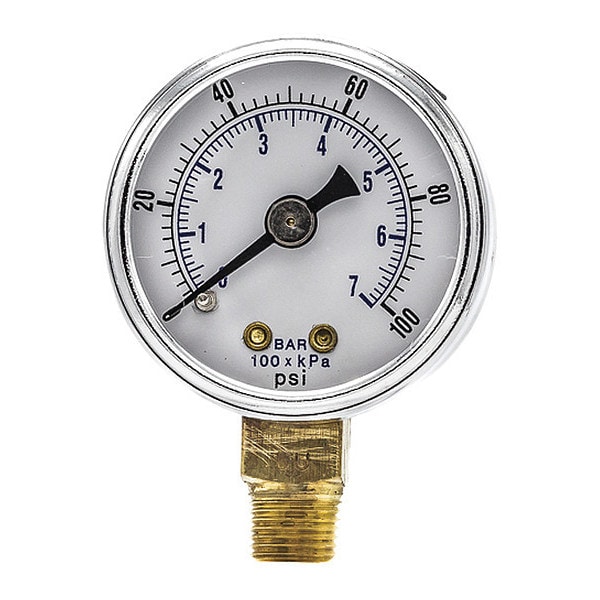

Pic Gauges Industrial Pressure Gauge, 0 to 100 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location 101D-158E - main

Industrial Pressure Gauge, 0 to 100 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

  • Mfr # 101D-158E

  • Zoro # G7286765

product price:  $7.55
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
101D-158E
Zoro #
G7286765
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Case Depth
0.93 in
Nominal Dial Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Case Diameter
1.64 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
101D
Lens Material
Plastic
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
Corrosion-Resistant Case
Calibration Certificate Included
No
Graduations
20 psi
Gauge Primary Range Numbered Graduations
20
Includes
Vent Plug
Case Color
Black
Socket Material
Copper Alloy
Gauge Secondary Range Values
0 to 7
Case Material
Stainless Steel
Gauge Primary Range Smallest Graduation
20
Standards
ASME
Connection Type
MNPT
Field Fillable
No
Pressure Range Type
Pressure
Freeze Resistant Movement
No
Dial Color
White
Bezel Mounting Type
Fixed
Pointer Color
Black
Ambient Operating Temperature Range
-50 Degrees to 160 Degrees F
Scale Type
Dual
Cleaned for Oxygen Service
No
Includes Vent Plug
No
Includes Mounting Hardware
No
Non-Sparking
No
Pointer Material
Aluminum
Removable Bezel
No
Process Connection Gender
Male
Pressure Gauge Type
Industrial Pressure Gauge
Accuracy Scale
Mid-Scale
Gauge Case Liquid
None
Includes Calibration Certificate
No
Dial Face Material
Aluminum
Bezel Material
Chrome Plated Steel
Sensor Material
Copper Alloy
Vibration Resistance
None
Secondary Scale Units
bar
Accuracy Grade
ASME B40.100 Grade B
Primary Scale Minor Graduations
20
Dry Dampening Feature
None
Secondary Pressure Range
0 to 7
Operating Temperature Range
-50 Degrees to 160 Degrees F
Operating Temperature - Maximum
160 Degrees F
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
100 psi
Compatible with Series
101D
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Minimum
-30 Degrees F
Case Liquid
None
Operating Temperature - Minimum
-50 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
7 bar
NEMA Enclosure Rating
No Enclosure
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Vacuum Measurement - Maximum
7 bar
Process Media Temperature - Maximum
180 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
