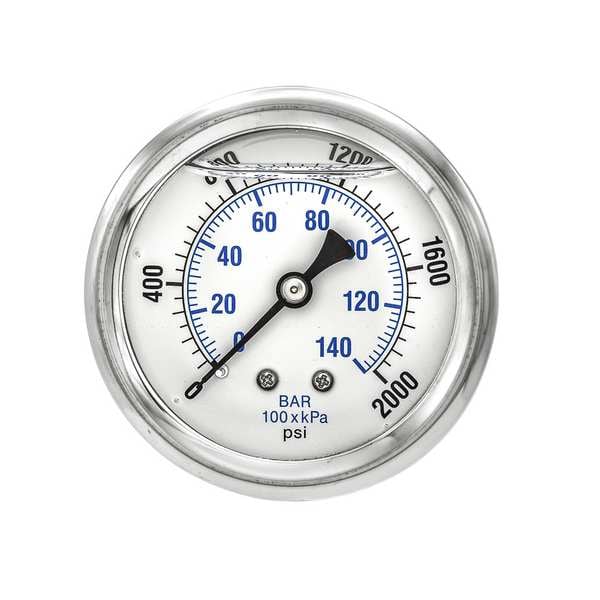

Pic Gauges Industrial Pressure Gauge, 0 to 2,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location PRO-202L-254O - main

Industrial Pressure Gauge, 0 to 2,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PRO-202L-254O

  • Zoro # G5119269

product price:  $19.33
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-202L-254O
Zoro #
G5119269
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
2.09"
Case Diameter
2.65 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Case Depth
1.21 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
202L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 2,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
40
Calibration Certificate Included
No
Gauge Filled With
Glycerin
Gauge Application
General Purpose
Case Color
Metallic
Includes
Vent Plug
Smallest Graduation
40 psi
Case Material
Stainless Steel
Socket Material
Copper Alloy
Wetted Materials
Copper
Connection Type
MNPT
Standards
ASME
Bezel Material
Stainless Steel
Pointer Color
Black
Primary Scale Minor Graduations
40
Gauge Case Liquid
Glycerin
Scale Type
Dual
Dial Color
White
Dry Dampening Feature
None
Pointer Material
Aluminum
Secondary Scale Units
bar
Sensor Material
Copper Alloy
Cleaned for Oxygen Service
No
Includes Vent Plug
Yes
Includes Calibration Certificate
No
Includes Mounting Hardware
No
Pressure Gauge Type
Industrial Pressure Gauge
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Process Connection Gender
Male
Bezel Mounting Type
Fixed
Secondary Pressure Range
0 to 138
Freeze Resistant Movement
No
Pressure Range Type
Pressure
Removable Bezel
No
Vibration Resistance
Liquid-Filled
Accuracy Scale
Mid-Scale
Non-Sparking
No
Accuracy Grade
ASME B40.100 Grade A
Field Fillable
No
Maximum Pressure
2000
Operating Temperature Range
30 Degrees to 160 Degrees F
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
2,000 psi
NEMA Enclosure Rating
No Enclosure
Compatible with Brand
Universal
Operating Temperature - Maximum
180 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Primary Scale Vacuum Measurement - Maximum
2,000 psi
Compatible with Series
202L
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Maximum
138 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 2,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
