This item is Discontinued.

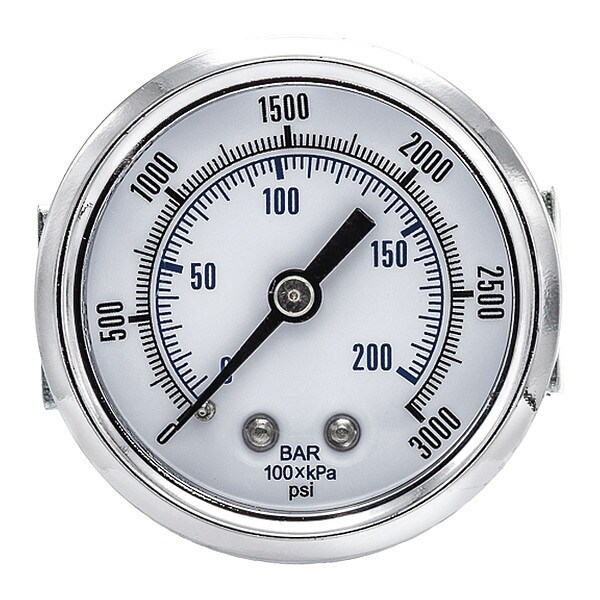

Pic Gauges Industrial Pressure Gauge, 0 to 3,000 psi, 2 in Dial, 1/8 in NPT, Center Back Location 103D-208P

This item is Discontinued.

Pic Gauges

Industrial Pressure Gauge, 0 to 3,000 psi, 2 in Dial, 1/8 in NPT, Center Back Location (Discontinued)

Mfr # 103D-208P
Zoro # G7286257
Country of Origin China
Category Pressure Gauges
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
103D-208P
Zoro #
G7286257
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
2 in
Manufacturer Warranty Length
1 yr
Case Depth
1.18 in
Nominal Dial Size
2 in
Case Diameter
2.31 in
Nominal Dial Diameter
2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
103D
Lens Material
Plastic
Primary Pressure Range
0 to 3,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 200
Includes
U-Clamp
Gauge Primary Range Numbered Graduations
500
Case Color
Metallic
Calibration Certificate Included
No
Socket Material
Brass
Gauge Application
U-Clamp
Gauge Primary Range Smallest Graduation
500
Case Material
Stainless Steel
Graduations
500 psi
Connection Type
MNPT
Standards
ASME
Dry Dampening Feature
None
Removable Bezel
No
Dial Color
White
Pressure Gauge Type
Industrial Pressure Gauge
Sensor Material
Copper Alloy
Field Fillable
No
Primary Scale Minor Graduations
500
Non-Sparking
No
Secondary Scale Units
bar
Process Connection Gender
Male
Freeze Resistant Movement
No
Bezel Mounting Type
Fixed
Pressure Range Type
Pressure
Secondary Pressure Range
0 to 207
Scale Type
Dual
Gauge Case Liquid
None
Cleaned for Oxygen Service
No
Accuracy Grade
ASME B40.100 Grade B
Includes Mounting Hardware
No
Ambient Operating Temperature Range
-50 Degrees to 160 Degrees F
Pointer Material
Aluminum
Pointer Color
Black
Vibration Resistance
None
Includes Vent Plug
No
Bezel Material
Chrome Plated Steel
Includes Calibration Certificate
No
Dial Face Material
Aluminum
Accuracy Scale
Mid-Scale
Operating Temperature Range
-50 Degrees to 160 Degrees F
Process Media Temperature - Maximum
180 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Minimum
0 bar
Operating Temperature - Maximum
160 Degrees F
Primary Scale Vacuum Measurement - Maximum
3,000 psi
Secondary Scale Pressure Measurement - Maximum
207 bar
Process Media Temperature - Minimum
-30 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Primary Scale Pressure Measurement - Maximum
3,000 psi
Compatible with Brand
Universal
Compatible with Series
103D
Case Liquid
None
Secondary Scale Vacuum Measurement - Maximum
200 bar
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
NEMA Enclosure Rating
No Enclosure

Description

Industrial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 3,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
