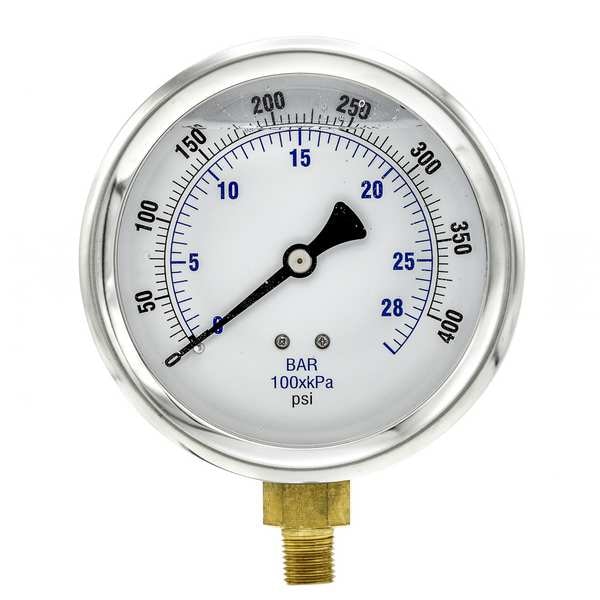

Pic Gauges Industrial Pressure Gauge, 0 to 400 psi, 4 in Dial, 1/4 in NPT, Bottom Location 201L-404I - main

Industrial Pressure Gauge, 0 to 400 psi, 4 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 201L-404I

  • Zoro # G9184061

product price:  $43.15
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
201L-404I
Zoro #
G9184061
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Length
5.21"
Case Depth
1.75 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
4 in
Case Diameter
4.29 in
Nominal Dial Diameter
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
201L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 400
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
5 psi
Gauge Filled With
Glycerin
Gauge Primary Range Smallest Graduation
5
Gauge Application
Glycerine Filled for Added Durability in Applications Where Vibration or Pulsation is Present
Case Color
Metallic
Graduations
50 psi
Includes
Vent Plug
Calibration Certificate Included
No
Required Gauge Adapter
No
Case Material
Stainless Steel
Socket Material
Copper Alloy
Wetted Materials
Copper
Standards
ASME
Connection Type
MNPT
Primary Scale Minor Graduations
5
Pressure Range Type
Pressure
Dial Face Material
Aluminum
Secondary Pressure Range
0 to 27.6
Field Fillable
No
Bezel Material
Stainless Steel
Freeze Resistant Movement
No
Gauge Case Liquid
Glycerin
Pressure Gauge Type
Industrial Pressure Gauge
Non-Sparking
No
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Includes Mounting Hardware
No
Cleaned for Oxygen Service
No
Includes Calibration Certificate
No
Dial Color
White
Pointer Color
Black
Bezel Mounting Type
Fixed
Includes Vent Plug
Yes
Sensor Material
Copper Alloy
Scale Type
Dual
Secondary Scale Units
bar
Vibration Resistance
Liquid-Filled
Accuracy Grade
ASME B40.100 Grade 1A
Pointer Material
Aluminum
Removable Bezel
No
Accuracy Scale
Full Scale
Dry Dampening Feature
None
Process Connection Gender
Male
Maximum Pressure
400
Operating Temperature Range
30 Degrees to 160 Degrees F
Process Media Temperature - Minimum
30 Degrees F
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Maximum
160 Degrees F
Secondary Scale Pressure Measurement - Maximum
27.6 bar
Primary Scale Pressure Measurement - Maximum
400 psi
Primary Scale Vacuum Measurement - Maximum
400 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
Glycerin
Operating Temperature - Maximum
160 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Minimum
0 bar
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Minimum
0 bar
Compatible with Series
201L
Operating Temperature - Minimum
30 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
