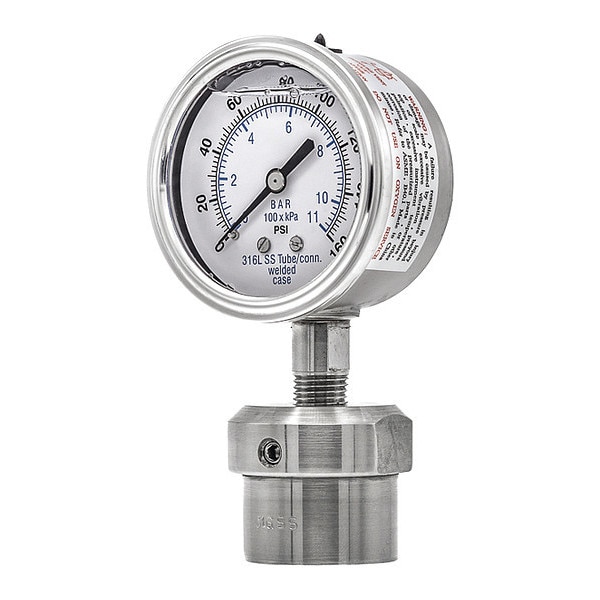

Pic Gauges Pressure Gauge with Diaphragm Seal, 0 to 160 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 301L254F/0JJJ200 - main

Pressure Gauge with Diaphragm Seal, 0 to 160 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 301L254F/0JJJ200

  • Zoro # G7286178

product price:  $66.75
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
301L254F/0JJJ200
Zoro #
G7286178
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Case Depth
1.39 in
Case Diameter
2.7 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Pressure Gauge with Diaphragm Seal
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Added Durability
Gauge Case Material
Stainless Steel
Series
301L; 0JJJ
Lens Material
Polycarbonate
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 11
Gauge Filled With
Glycerin
Gauge Special Options
Diaphragm
Case Color
Gray
Gauge Primary Range Numbered Graduations
20
Calibration Certificate Included
No
Graduations
20 psi
Gauge Primary Range Smallest Graduation
20
Socket Material
Stainless Steel
Case Material
Stainless Steel
Standards
ASME B40.100
Connection Type
FNPT
Freeze Resistant Movement
No
Cleaned for Oxygen Service
No
Bezel Material
Stainless Steel
Process Temperature Range
-40 Degrees to 300 Degrees F
Case Finish
None
Seal Fill Liquid
Glycerin
Movement Type
Anti-Vibration
Seal Compatible Process Media
316 Stainless Steel
Gauge Case Liquid
None
Sensor Material
316 Stainless Steel
Includes Vent Plug
No
Pressure Gauge Type
Process Pressure Gauge with Diaphragm Seal
Primary Scale Numeric Increments
20
Diaphragm Seal Type
Threaded
Accuracy Scale
Mid-Scale
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Secondary Scale Units
bar
Dial Color
White
Bezel Mounting Type
Fixed
Includes Calibration Certificate
No
Seal Diaphragm Material
316 Stainless Steel
Seal Lower Housing Material
316 Stainless Steel
Process Connection Gender
Male
Accuracy Grade
ASME B40.100 Grade A
Scale Type
Dual
Vibration Resistance
Field-Fillable
Includes Mounting Hardware
No
Case Construction
Welded
Secondary Pressure Range
0 to 11
Dry Dampening Feature
Anti-Vibration Movement
Adjustable Pointer
No
Pointer Color
Black
Compatible Process Media
Media Compatible with 316 Stainless Steel
Field Fillable
Yes
Clog Resistant
No
Removable Bezel
No
Primary Scale Minor Graduations
2
Pointer Material
Aluminum
Pressure Range Type
Pressure
Diaphragm Seal Material
316 Stainless Steel
Operating Temperature Range
-30 Degrees to 180 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 bar
Primary Scale Vacuum Measurement - Maximum
160 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
11 bar
Process Media Temperature - Maximum
300 Degrees F
NEMA Enclosure Rating
No Enclosure
Secondary Scale Vacuum Measurement - Maximum
11 bar
IP Rating
IP65
Operating Temperature - Maximum
180 Degrees F
Primary Scale Pressure Measurement - Maximum
160 psi
Operating Temperature - Minimum
-30 Degrees F
Includes Acid Leak Detection
No Acid Leak Detection Included
Case Liquid
None

Description

GaugewDiaphragmSeal160psi1PK
