  5. Pressure Gauge with Diaphragm Seal, 0 to 60 psi, 2 1/2 in Dial, 1/2 in NPT, Bottom Location

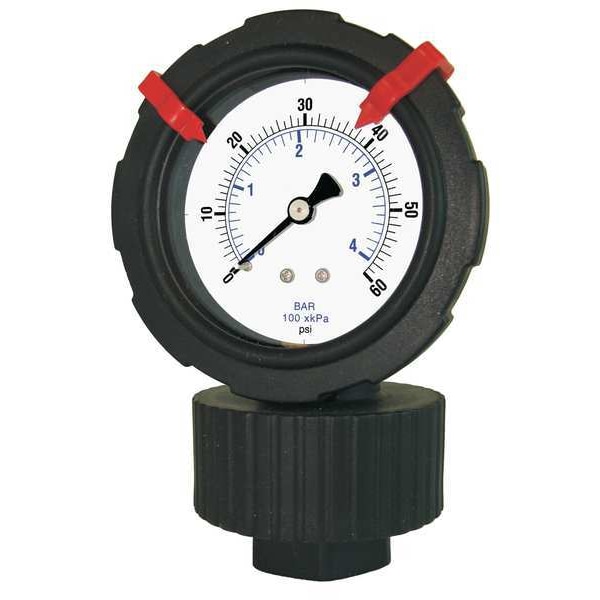

Pic Gauges Pressure Gauge with Diaphragm Seal, 0 to 60 psi, 2 1/2 in Dial, 1/2 in NPT, Bottom Location 701DDS-252D - main

Pressure Gauge with Diaphragm Seal, 0 to 60 psi, 2 1/2 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # 701DDS-252D

  • Zoro # G6558666

product price:  $28.59
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
701DDS-252D
Zoro #
G6558666
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
2 1/2 in
Length
5.35"
Manufacturer Warranty Length
1 yr
Case Depth
1.61 in
Nominal Dial Size
2 1/2 in
Case Diameter
3.16 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Pressure Gauge with Diaphragm Seal
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Water Treatment Applications
Gauge Case Material
Polypropylene
Series
701DDS-252
Lens Material
Polycarbonate
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
For Use With
Wastewater Treatment, Water
Gauge Primary Range Numbered Graduations
5
Graduations
10 psi
Smallest Graduation
1 psi
Gauge Primary Range Smallest Graduation
0.5
Case Color
Black
Includes
Vent Plug with Viton Seal
Case Material
Polypropylene
Socket Material
Viton
Standards
ASME B40.100
Connection Type
FNPT
Wetted Materials
Brass
Pointer Color
Black
Secondary Pressure Range
0 to 30
Dry Dampening Feature
None
Bezel Material
Polypropylene
Freeze Resistant Movement
No
Removable Bezel
Yes
Accuracy Grade
ASME B40.1 Grade A
Adjustable Pointer
No
Primary Scale Numeric Increments
5
Seal Compatible Process Media
Anything compatible with Viton and Polypropylene
Seal Lower Housing Material
Polypropylene
Case Finish
Polypropylene
Clog Resistant
No
Includes Vent Plug
Yes
Secondary Scale Units
bar
Gauge Case Liquid
None
Case Construction
One Piece Molded
Pressure Gauge Type
Process Pressure Gauge with Diaphragm Seal
Scale Type
Dual
Process Connection Gender
Female
Accuracy Scale
Mid-Scale
Pressure Range Type
Pressure
Process Temperature Range
-4 Degrees to 140 Degrees F
Dial Color
White
Includes Mounting Hardware
No
Primary Scale Minor Graduations
0.5
Diaphragm Seal Type
Threaded
Includes Calibration Certificate
No
Field Fillable
Yes
Ambient Operating Temperature Range
-20 Degrees to 60 Degrees C, -4 Degrees to 140 Degrees F
Seal Fill Liquid
Glycerin
Seal Diaphragm Material
Viton
Sensor Material
Brass
Cleaned for Oxygen Service
No
Vibration Resistance
Field-Fillable
Pointer Material
Aluminum
Maximum Pressure
60
Diaphragm Seal Material
Viton
Operating Temperature Range
-4 Degrees to 140 Degrees F
Seal Process Media Temperature - Maximum
-10 Degrees C
Seal Process Media Temperature - Minimum
-85 Degrees C
Primary Scale Pressure Measurement - Maximum
60 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Minimum
-4 Degrees F
Operating Temperature - Maximum
140 Degrees F
Process Media Temperature - Minimum
-4 Degrees F
Case Liquid
None
IP Rating
IP65
Process Media Temperature - Maximum
140 Degrees F
Includes Acid Leak Detection
No Acid Leak Detection Included
Secondary Scale Pressure Measurement - Maximum
30 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
NEMA Enclosure Rating
No Enclosure

Description

PressureGaugewithDiaphragmSeal,60psi,1PK
