  9. Vacuum Gauge, 1/4 in. NPT, 2 in.

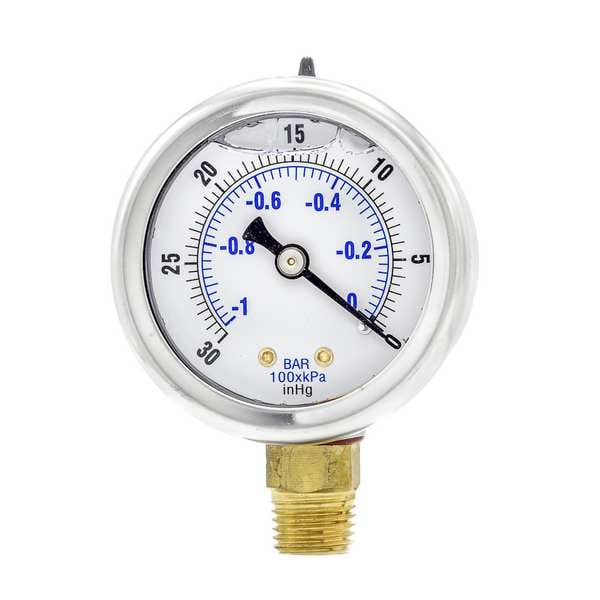

Pic Gauges Vacuum Gauge, 1/4 in. NPT, 2 in. 201L-204A - main

Vacuum Gauge, 1/4 in. NPT, 2 in.

  • Mfr # 201L-204A

  • Zoro # G5120291

product price: $11.99
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Gauge Nominal Dial Size
2 in
Basic Gauge Case Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
201L-204A
Zoro #
G5120291
UPC #
-
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
2 in
Gauge Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Connection Size
1/4 in NPT
Manufacturer Warranty Length
1 yr
Nominal Dial Size
2 in
Case Diameter
2.27 in
Process Connection Size
1/4 in
Case Depth
1.2 in
Nominal Dial Diameter
2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Basic Gauge Case Material
Stainless Steel
Basic Gauge Wetted Parts
Copper
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Units
in Hg
Includes
Vent Plug
Basic Gauge Socket Material
Copper
Gauge Case Color
Stainless Steel
Gauge Sensor Material
Copper Alloy
Gauge Case Material
Stainless Steel
Gauge Filled With
Glycerin
Gauge Primary Range Values
-30 to 0
Case Color
Metallic
Gauge Socket Material
Copper Alloy
Range
30 in to 0 in Hg Vac
Connection Location
Lower
Smallest Graduation
0.5 in Hg
Basic Gauge Lens Material
Plastic
Operating Temp. Range
30 Degrees to 160 Degrees F
Gauge Primary Range Smallest Graduation
0.5
Calibration Certificate Included
No
Series
201L
Gauge Panel Mountable
No
Item
Industrial Vacuum Gauge
Gauge Lens Material
Polycarbonate
Gauge Accuracy
+/-3-2-3%
Basic Gauge Sensor Material
Copper
Non-Sparking
No
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Units
psi
Pointer Color
Black
Includes Mounting Hardware
No
Primary Pressure Range
-30 to 0
Dry Dampening Feature
None
IP/NEMA Rating
Not Rated
Dial Color
White
Sensor Material
Copper Alloy
Process Connection Type
NPT
Blowout Safety Back
No
Secondary Scale Units
bar
Cleaned for Oxygen Service
No
Process Connection Location
Bottom
Includes Vent Plug
Yes
Pressure Range Type
Vacuum
Socket Material
Copper Alloy
Case Material
Stainless Steel
Liquid-Filled Case
Yes
Vibration Resistance
Liquid-Filled
Lens Material
Polycarbonate
Removable Bezel
No
Accuracy Grade
ASME B40.100 Grade B
Process Connection Gender
Male
Secondary Pressure Range
0 to 345 bar
Dial Face Material
Aluminum
Panel-Mountable
No
Field Fillable
No
Bezel Mounting Type
Removable
Pressure Gauge Type
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Scale Type
Dual
Includes Calibration Certificate
No
Freeze Resistant Movement
No
Bezel Material
Stainless Steel
Primary Scale Minor Graduations
0.5
Accuracy Scale
Mid-Scale
Standards
ASME
Gauge Case Liquid
Glycerin
Application
General Purpose
Case Construction
Stainless Steel
Pointer Material
Aluminum
Hazardous Location Rating
Not Rated
Operating Temperature - Maximum
160 Degrees F
Compatible with Series
201L
Primary Scale Pressure Measurement - Maximum
0 bar
Compatible with Brand
Universal
Case Liquid
Glycerin
Secondary Scale Pressure Measurement - Maximum
345 bar
Process Media Temperature - Minimum
30 Degrees F
Primary Scale Pressure Measurement - Minimum
-30 bar
Primary Scale Vacuum Measurement - Minimum
30 in Hg
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Vacuum Measurement - Maximum
0 bar
Operating Temperature - Minimum
30 Degrees F
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Maximum
160 Degrees F

Description

Industrial Vacuum Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range -30 to 0, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
