Shop PIC GAUGES

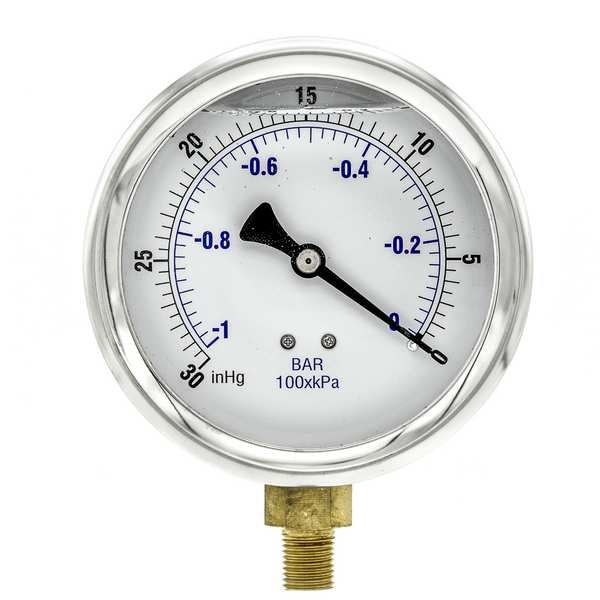

Vacuum Gauge, Liquid, 4In, 30-0In Hg Vacuum

  • Mfr # 201L-404A
  • Zoro # G9721573
product price:
$
43.65
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
General Purpose
Liquid Filled
Yes
Gauge Nominal Dial Size
4 in
Basic Gauge Case Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
201L-404A
Zoro #
G9721573
UPC #
-
Country of Origin
China
Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
General Purpose
Liquid Filled
Yes
Basic Gauge Case Material
Stainless Steel
Basic Gauge Wetted Parts
Copper
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Units
in Hg
Gauge Primary Range Values
-30 to 0
Basic Gauge Socket Material
Copper
Gauge Lens Material
Polycarbonate
Gauge Accuracy
+/-2-1-2%
Gauge Primary Range Smallest Graduation
0.5
Gauge Sensor Material
Copper Alloy
Basic Gauge Lens Material
Plastic
Case Color
Metallic
Gauge Socket Material
Copper Alloy
Basic Gauge Sensor Material
Copper
Gauge Panel Mountable
No
Series
201L
Includes
Vent Plug
Operating Temp. Range
30 Degrees to 160 Degrees F
Item
Industrial Vacuum Gauge
Range
30 in Hg Vac to 0
Graduations
5 in hg
Calibration Certificate Included
No
Gauge Filled With
Glycerin
Connection Location
Lower
Required Gauge Adapter
No
Gauge Case Material
Stainless Steel
Smallest Graduation
0.5 in hg
Gauge Case Color
Stainless Steel
Liquid-Filled Case
Yes
Cleaned for Oxygen Service
No
Gauge Case Liquid
Glycerin
Hazardous Location Rating
Not Rated
Lens Material
Polycarbonate
Primary Scale Units
psi
Bezel Material
Stainless Steel
Includes Vent Plug
Yes
Primary Pressure Range
-30 to 0
Pointer Material
Aluminum
Includes Calibration Certificate
No
Blowout Safety Back
No
Scale Type
Dual
Secondary Pressure Range
0 to 345
Removable Bezel
No
Bezel Mounting Type
Removable
Sensor Material
Copper Alloy
Dial Face Material
Aluminum
Field Fillable
No
Dial Color
White
Pointer Color
Black
Process Connection Location
Bottom
Panel-Mountable
No
Application
General Purpose
Socket Material
Copper Alloy
Accuracy Grade
ASME B40.100 Grade 1A
Non-Sparking
No
Pressure Range Type
Vacuum
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Accuracy
+/-1.0%
Secondary Scale Units
bar
Standards
ASME
Vibration Resistance
Liquid-Filled
Case Material
Stainless Steel
Accuracy Scale
Full Scale
IP/NEMA Rating
Not Rated
Primary Scale Minor Graduations
0.5
Process Connection Type
NPT
Pressure Gauge Type
Industrial Pressure Gauge
Includes Mounting Hardware
No
Dry Dampening Feature
None
Process Connection Gender
Male
Freeze Resistant Movement
No
Process Media Temperature - Maximum
160 Degrees F
Operating Temperature - Maximum
160 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Operating Temperature - Minimum
30 Degrees F
NEMA Enclosure Rating
No Enclosure
Case Liquid
Glycerin
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
345 bar
Compatible with Series
201L
Secondary Scale Vacuum Measurement - Minimum
0 bar
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
0 psi
Compatible Series
201L

Dimensions

Gauge Nominal Dial Size
4 in
Gauge Connection Size
1/4 in
Manufacturers Warranty Length
1 yr Limited
Connection Size
1/4 in NPT
Case Diameter
4.29 in
Process Connection Size
1/4 in
Nominal Dial Size
4 in
Case Depth
1.75 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
4 in

Description

Industrial Vacuum Gauge, Nominal Dial Size 4 in, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range -30 to 0, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
