  11. Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 1/4"-18 Thread Size, 4000 Series
Shop All Hydraulic Quick Couplers
Pioneer

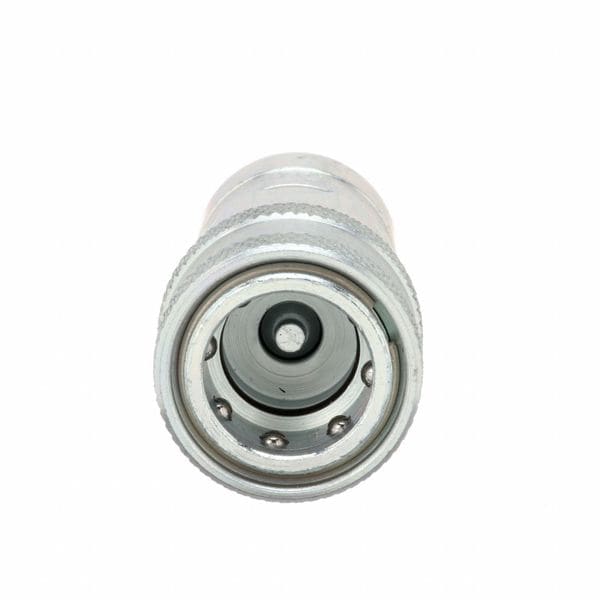

Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 1/4"-18 Thread Size, 4000 Series

product price: $28.75
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Quick Coupler Type Hydraulic Coupler Body
  • Coupler Interchange Type 4000
  • Connection Type NPTF
  • Coupler Thread Size 1/4"-18
  • Coupler Body Size 1/4"
See all product information

Product Information

Dimensions

Coupler Thread Size 1/4"-18
Coupler Body Size 1/4"
Thread Size 1/4"-18
Length 2-3/16"
Overall Length 2 3/16 in
Coupling Size 1/4 in
Max. Outside Dia. 1 1/16 in

Details

Quick Coupler Type Hydraulic Coupler Body
Item Hydraulic Quick Connect Hose Coupling
Coupler Interchange Type 4000
Connection Type NPTF
Coupler Flow Rate 3.0 gpm
Max. Pressure 3000 psi
Coupler Body Material Steel
Sleeve Material Steel
Coupler Finish Zinc Plated
Series 4000
Body Material Steel
Coupling Locking Type Sleeve
Parker Interchange 4050-2P
Seal Material Nitrile
Coupler Connection Type FNPT
Locking Mechanism Ball
Pioneer Interchange 4050-2P
For Use With Parker Serie 4000
Operating Temp. Range -40 Degrees to 250 Degrees F
Bearing Material Stainless Steel
Valve Design Poppet
Includes Shut Off Yes
Finish/Coating Plain
Fitting Type Female NPTF
Includes Bearing Yes
Hose Fitting Gender Female
Includes Valve Yes
Max. Flow Rate 11.36 lpm
Max. Working Pressure @ 70 F 3,000 psi
Coupling Component Socket
Valve Type Poppet

Description

Hydraulic Quick Connect Hose Coupling, Socket, 4000 Series, Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 3,000 psi, Max. Flow Rate 11.36 lpm
